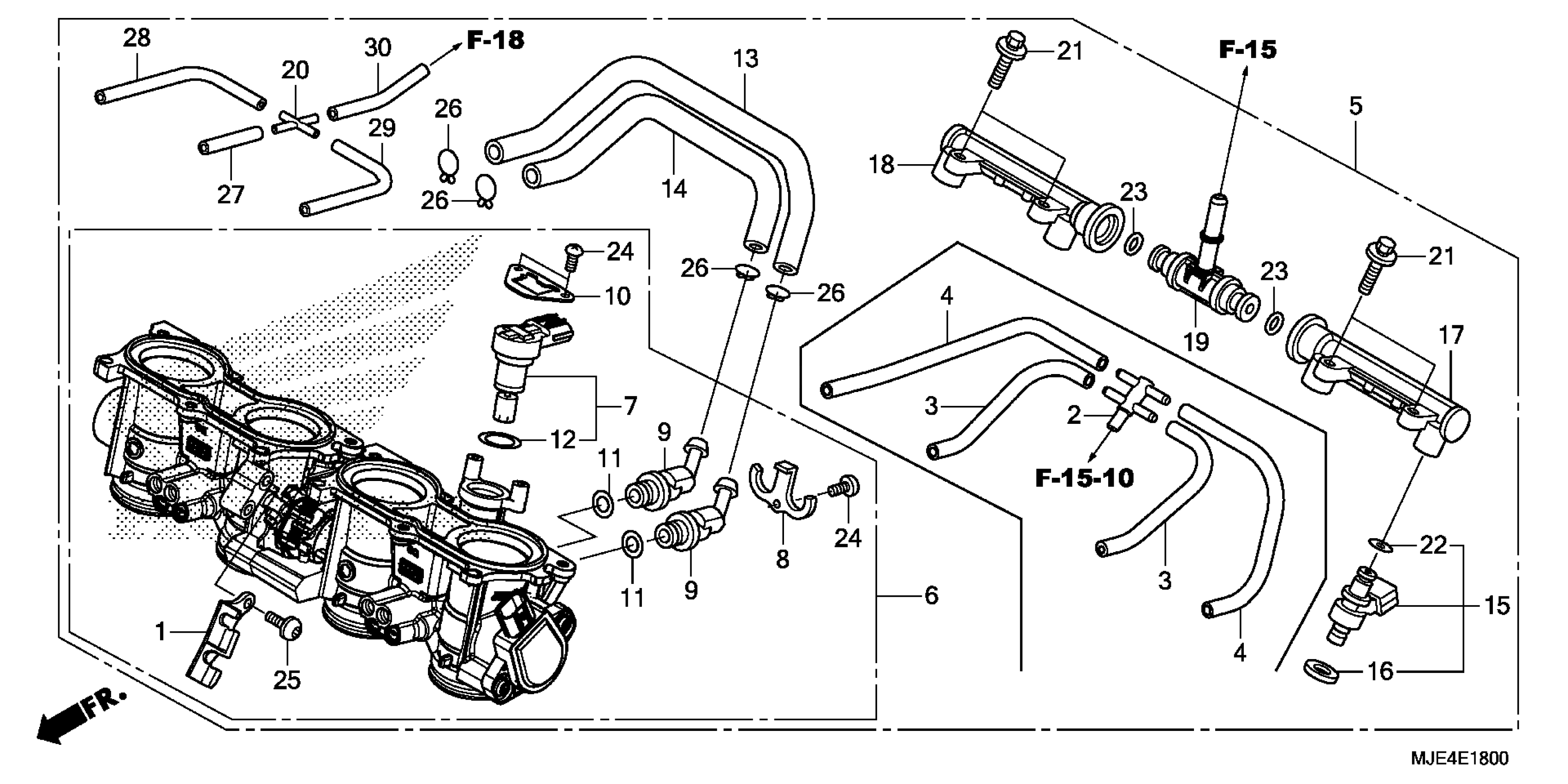

Honda CBR650FAAC (14) MOTORCYCLE, THA, VIN# MLHRC745-E5000001 TO MLHRC745-E5099999 THROTTLE BODY Diagram

#

Description
Price

1

STAY, WIRE (FRAME NO.)

16169-MEE-013

$13.36

2

JOINT (T)

16180-ME5-761

$28.81

3

TUBE

16196-MBW-L11

$2.83

4

TUBE

16197-MFJ-L01

$5.93

5

BODY ASSY., THROTTLE (GQ8GB A)

16400-MJE-L01

$628.59

6

BODY ASSY., THROTTLE

16401-MJE-L01

$725.14

7

MOTOR ASSY.

16430-MJE-D01

$87.51

8

PLATE, JOINT

16431-MFJ-D01

$7.54

9

JOINT, IDLE AIR CONTROL VALVE

16432-MFJ-D01

$8.41

10

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$9.42

11

O-RING

16434-MFJ-D01

$2.77

12

O-RING (17.8X1.9)

16435-MFJ-D01

$2.77

13

TUBE (A)

16440-MJE-D01

$20.01

14

TUBE (B)

16441-MJE-D01

$21.74

15

INJECTOR ASSY., FUEL (BLUE) This part replaces 16450-MJE-D01.

16450-MJE-D02

$42.91

16

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.04

17

PIPE, FUEL (A)

16610-MGC-D21

$56.04

18

PIPE, FUEL (B)

16620-MGC-D21

$56.04

19

T-JOINT, FUEL

16630-MFJ-D00

$19.87

20

JOINT, FOUR-WAY

17201-MCZ-003

$6.64

21

BOLT, SHOULDER

90021-MGZ-D02

$2.64

22

O-RING (6.3X2.2)

91301-GGL-J01

$9.39

23

O-RING (7.47X3.6)

91301-PLC-000

$2.89

24

SCREW, PAN (4X8)

93500-04008-0H

$0.83

24

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$0.83

25

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.04

25

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.04

26

CLIP, TUBE (B12.5) (NOT AVAILABLE)

95002-02139

$1.29

27

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$8.69

28

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$8.69

29

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$8.69

30

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$8.69
