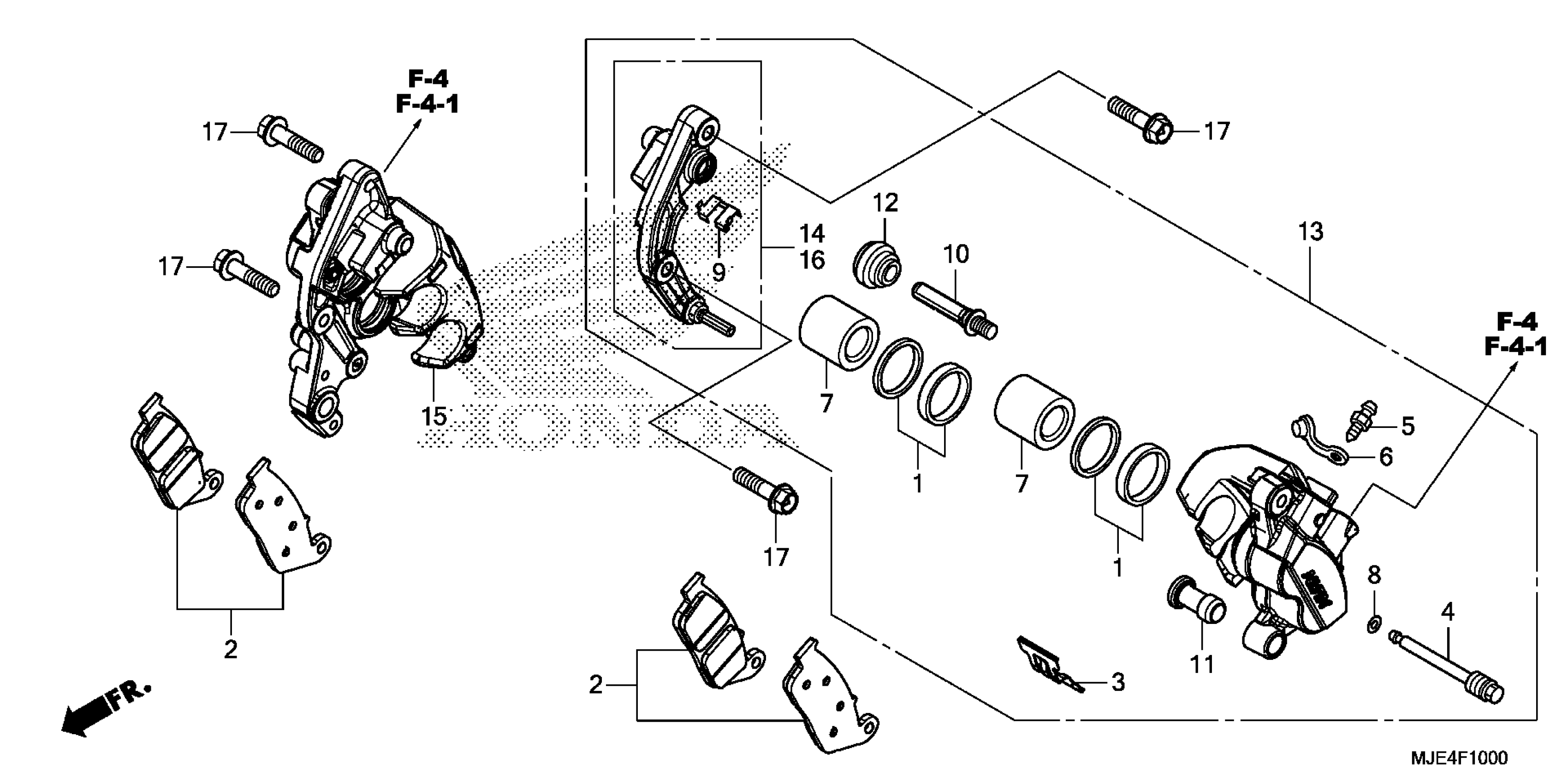

Honda CBR650FAAC (14) MOTORCYCLE, THA, VIN# MLHRC745-E5000001 TO MLHRC745-E5099999 FRONT BRAKE CALIPER (1) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$11.41

PAD SET, FR. This part replaces 06455-MJE-D01.

06455-MJE-D02

$86.25

PAD SET, FR.

06455-MJE-D02

$86.25

SPRING, PAD

43108-MCT-006

$4.92

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON (NISSIN)

45107-MN5-006

$37.88

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER

45112-ML7-921

$5.46

BOLT A, PIN (NISSIN)

45131-ML7-921

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. (NISSIN) (MSDS)

45150-MJE-D01

$123.48

BRACKET SUB-ASSY., L. FR.

45190-MJE-D01

$41.54

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MJE-D11

$198.00

BRACKET SUB-ASSY., R. FR.

45290-MGZ-J11

$51.39

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.75
