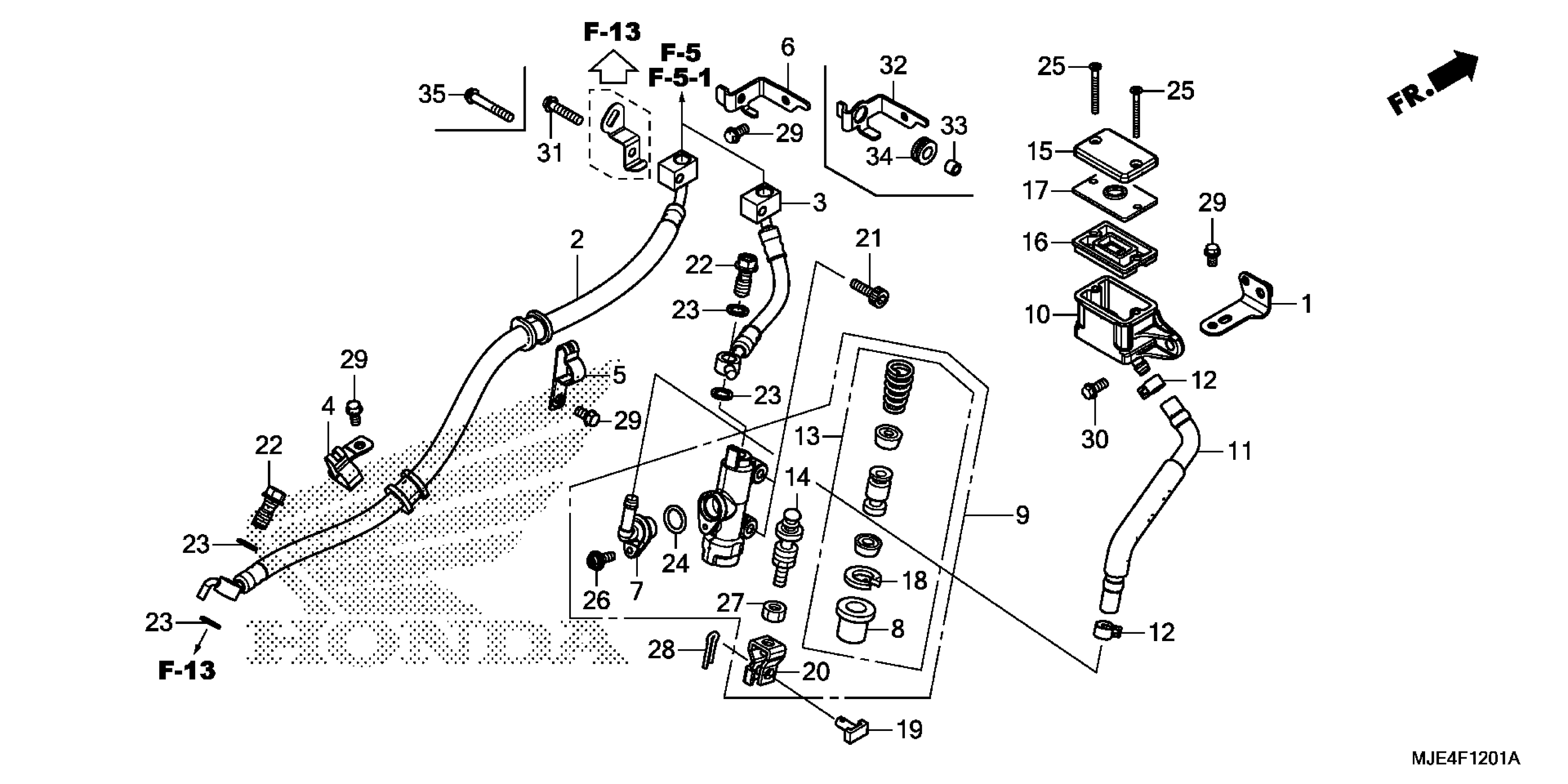

Honda CBR650FA2AC (18) MOTORCYCLE, THA, VIN# MLHRC745-J5400001 REAR BRAKE MASTER CYLINDER (2) Diagram

STAY C, RR. BRAKE

43159-MJE-D00

$6.21

HOSE A, RR. BRAKE

43310-MJE-DB1

$31.28

HOSE B, RR. BRAKE

43313-MJE-D11

$25.56

CLAMP A, RR. BRAKE HOSE

43314-MJE-D10

$4.18

CLAMP B, RR. BRAKE HOSE

43315-MJE-D10

$3.97

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.74

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. (COO)

43510-MJE-305

$176.41

MASTER CYLINDER SUB-ASSY., RR. (COO) This part replaces 43510-MER-D02.

43510-MJE-305

$176.41

CUP, OIL

43511-KV3-831

$23.70

HOSE, RR. MASTER CYLINDER

43512-MJE-D01

$10.75

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$46.51

ROD, PUSH

43530-KV3-701

$19.84

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

CIRCLIP

46182-MEL-D21

$1.93

PIN, BRAKE ROD

46503-MFG-D00

$4.48

JOINT, BRAKE ROD

46504-MAL-601

$13.39

BOLT, SOCKET (6X20)

90135-MEL-000

$1.62

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW, FLAT (4X40)

93600-04040-1G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (2.0X12)

94201-20120

$1.49

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.72

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

STAY, RR. BRAKE PIPE

43316-MJE-DB0

$6.30

COLLAR, BRAKE HOSE STAY

45161-K87-L50

$1.69

GROMMET, MAIN PIPE COVER

64312-KWW-640

$1.49

BOLT, FLANGE (6X40)

96001-06040-07

$1.49
