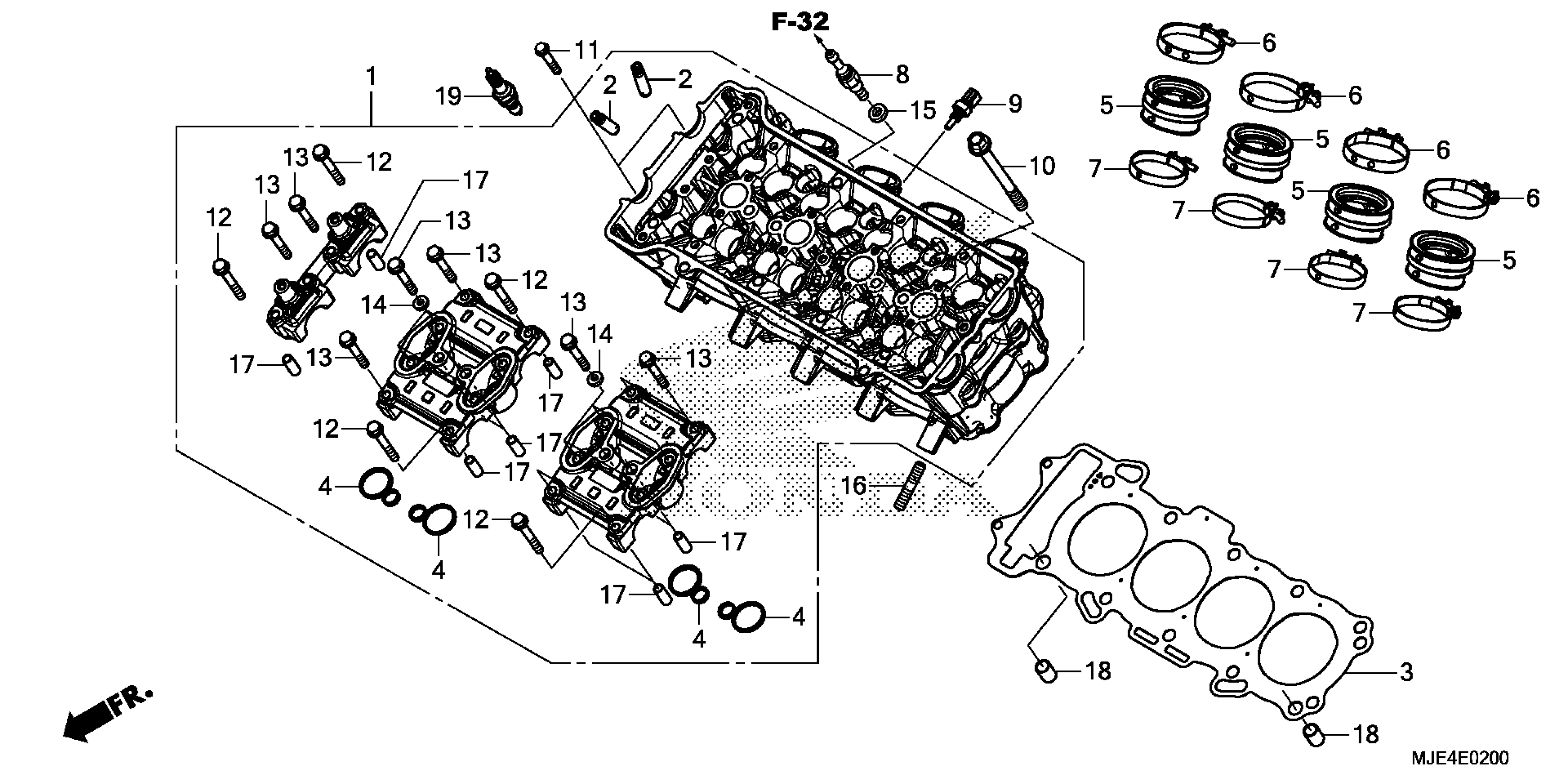

Honda CBR650FA (16) MOTORCYCLE, THA, VIN# MLHRC740-G5200001 TO MLHRC740-G5299999 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MJE-D00

$781.18

GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)

12205-KYJ-305

$19.81

GASKET, CYLINER HEAD This part replaces 12251-MJE-D01.

12251-MKY-E21

$42.80

GASKET, PLUG HOLE

12395-MBW-003

$4.66

INSULATOR, THROTTLE BODY

16211-MJE-D00

$52.00

BAND A, INSULATOR

16217-MJE-D00

$7.56

BAND B, INSULATOR

16218-MJE-D00

$7.20

JOINT, BLEEDING

19410-MJE-D00

$55.28

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$49.80

BOLT-WASHER (9X100)

90007-MGZ-J00

$5.02

BOLT, FLANGE (6X35)

90011-MGZ-J00

$1.49

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

BOLT, FLANGE (6X39.5)

90019-KYJ-900

$1.49

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

GASKET (SHOWA)

90544-439-930

$2.13

BOLT, STUD (8X22)

92900-08022-3E

$2.31

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25

PIN A, DOWEL (12X16)

94301-12160

$2.27

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$8.09

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$8.09

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$8.09
