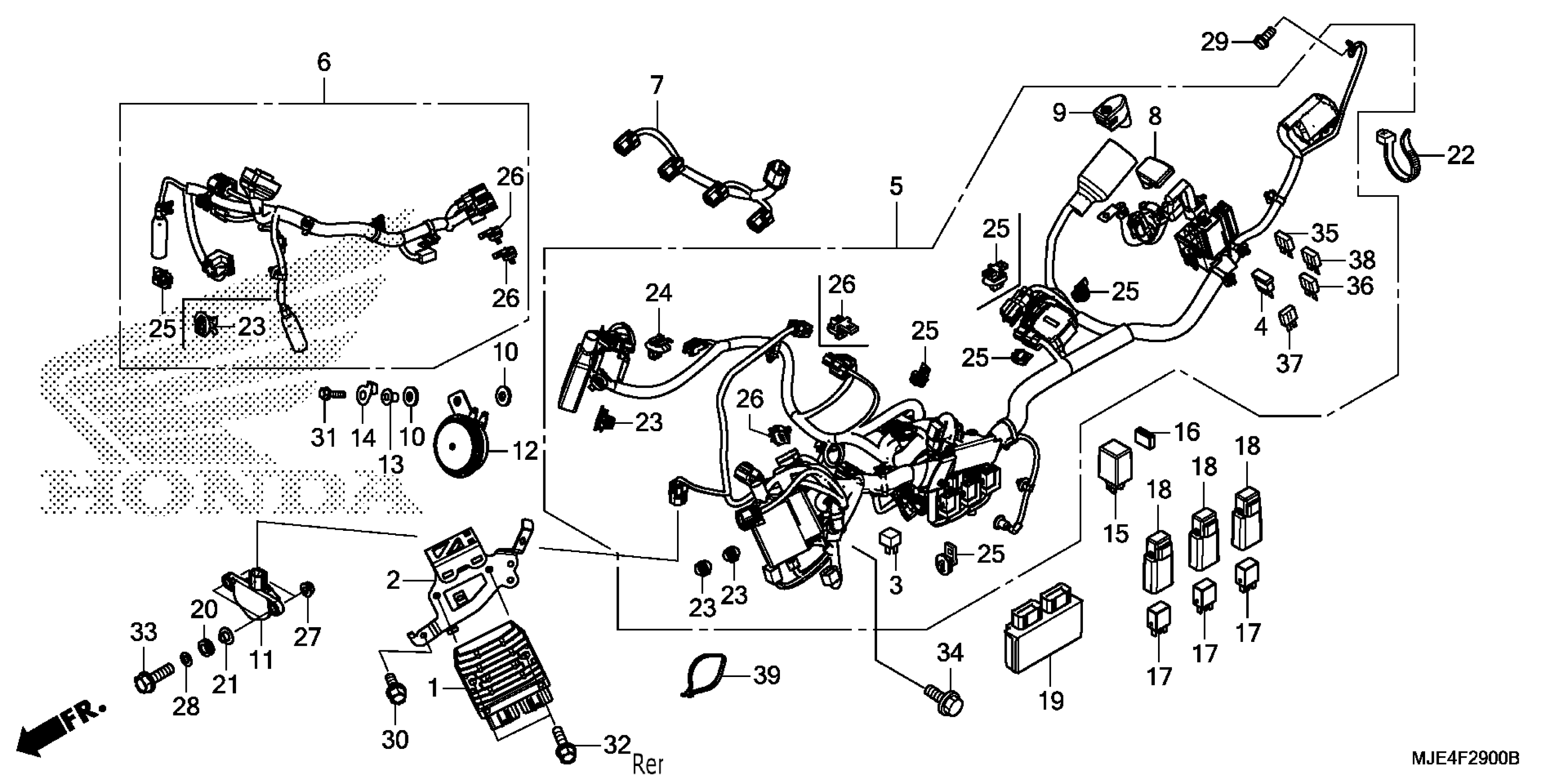

Honda CBR650F2A (18) MOTORCYCLE, THA, VIN# MLHRC740-J5400001 WIRE HARNESS Diagram

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$193.01

STAY, REGULATOR

31605-MJE-DB0

$19.31

RECTIFIER, SILICON

31700-MM8-610

$24.98

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS (NOT AVAILABLE)

32100-MJE-AA0

Unavailable

SUB-HARNESS, FR.

32103-MJE-AA0

$65.18

SUB-HARNESS, INJECTOR

32104-MJE-D00

$25.03

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.51

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$150.05

HORN (HIGH)

38110-KPP-T01

$36.07

COLLAR, HORN SETTING

38117-KFE-701

$1.49

RELAY, TURN SIGNAL (MITSUBA)

38301-MJE-D02

$49.85

SUSPENSION, TURN SIGNAL RELAY

38306-MGZ-K00

$5.36

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

SUSPENSION, POWER RELAY

38506-MCS-G00

$5.86

PGM-FI UNIT

38770-MJE-AA1

$342.74

RUBBER, SIDE COVER

64535-MFJ-D00

$1.93

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.36

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.12

CLIP, CONNECTOR (NATURAL)

91533-S04-003

$3.90

CLIP, CONNECTOR (BLACK)

91533-S82-003

$5.10

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM)

94103-06800

$1.49

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

FUSE F (7.5A) (MINI)

98200-40750

$1.49

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (20A)

98200-42000

$1.49

BAND, WIRE (BLACK)

90652-KT1-771

$4.48
