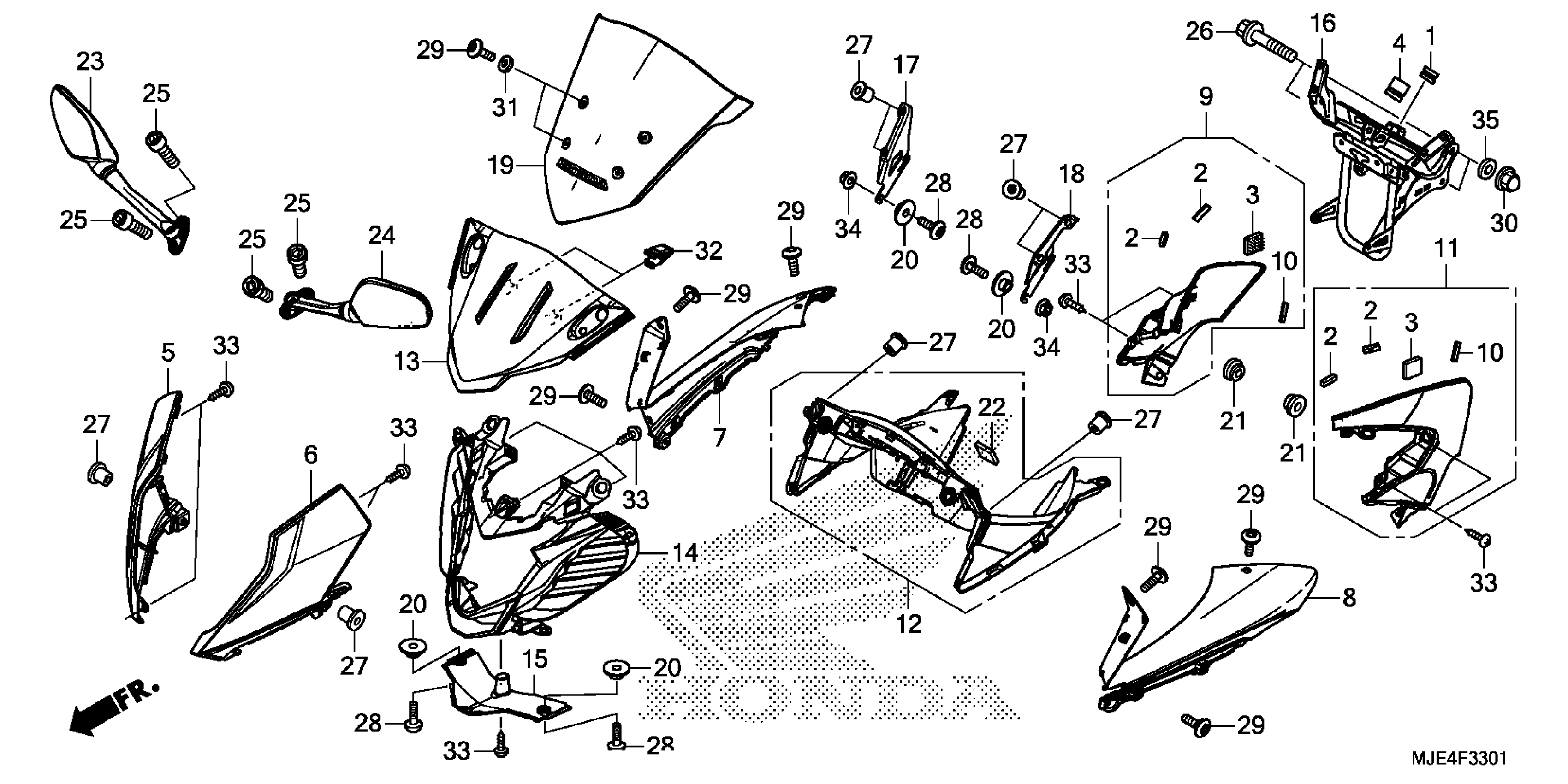

Honda CBR650F2A (18) MOTORCYCLE, THA, VIN# MLHRC740-J5400001 UPPER COWL (2) Diagram

#

Description
Price

1

GROMMET A, RR. COVER (8X16X6.6) (FR.)

11344-MB0-000

$2.66

2

FASTENER C, DUAL LOCK (8X25)

17541-MJE-D00

$1.22

3

FASTENER D, DUAL LOCK (20X20)

17542-MJE-D00

$1.84

4

RUBBER, METER SETTING

37215-KZZ-900

$1.31

5

COWL SET A, R. (UPPER) (TYPE1) (WL)

64110-MJE-DD0ZC

$18.72

6

COWL SET A, L. (UPPER) (TYPE1) (WL)

64120-MJE-DD0ZC

$19.54

7

COWL B, R. (UPPER) *R263* (MILLENNIUM RED)

64131-MJE-D00ZA

$40.04

8

COWL B, L. (UPPER) *R263* (MILLENNIUM RED)

64141-MJE-D00ZA

$40.04

9

COWL ASSY. C, R. (UPPER)

64150-MJE-D00

$15.50

10

RUBBER, COWL (UPPER)

64152-MJE-D00

$1.28

11

COWL ASSY. C, L. (UPPER)

64160-MJE-D00

$13.63

12

PANEL ASSY., METER

64170-MJE-D02

$55.25

13

COVER A, HEADLIGHT *NHB01* (GRAPHITE BLACK)

64181-MJE-DB0ZB

$57.51

14

COVER B, HEADLIGHT

64185-MJE-DB0

$32.34

15

COVER, FR. HEADLIGHT (LOWER)

64191-MJE-DB0

$12.97

16

STAY, FR. COWL (UPPER)

64501-MJE-DB0

$75.87

17

STAY, R. SCREEN

67102-MJE-D00

$15.82

18

STAY, L. SCREEN

67103-MJE-D00

$9.79

19

WINDSCREEN (TYPE1) (WL)

67110-MJE-D00ZA

$43.24

20

COLLAR A

80113-MJE-D00

$2.31

21

GROMMET, SIDE COVER

83551-376-000

Unavailable

22

EMBLEM, PRODUCT (MARUI)

86150-GFC-901

$2.80

23

MIRROR ASSY., R. BACK (COO)

88110-MJE-305

$51.18

24

MIRROR ASSY., L. BACK (COO)

88120-MJE-305

$51.11

25

BOLT, SOCKET (6X20)

90001-MCK-A50

Unavailable

26

BOLT, FLANGE (8X35)

90101-GBL-000

$3.38

27

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

28

SCREW, PAN (5X16)

90133-MJE-D00

$0.82

29

SCREW, PAN (5X16)

90134-MJE-D00

Unavailable

30

NUT, HEX. CAP (8MM)

90307-MJE-D00

$1.19

31

WASHER, THRUST (5MM)

90504-964-000

$1.75

32

CLIP, SNAP FIT (BLACK)

90651-K33-D00

$1.56

33

SCREW, TAPPING (4X12)

93903-24380

Unavailable

34

NUT, FLANGE (5MM)

94050-05000

$1.21

35

WASHER, PLAIN (8MM)

94101-08700

$0.91
