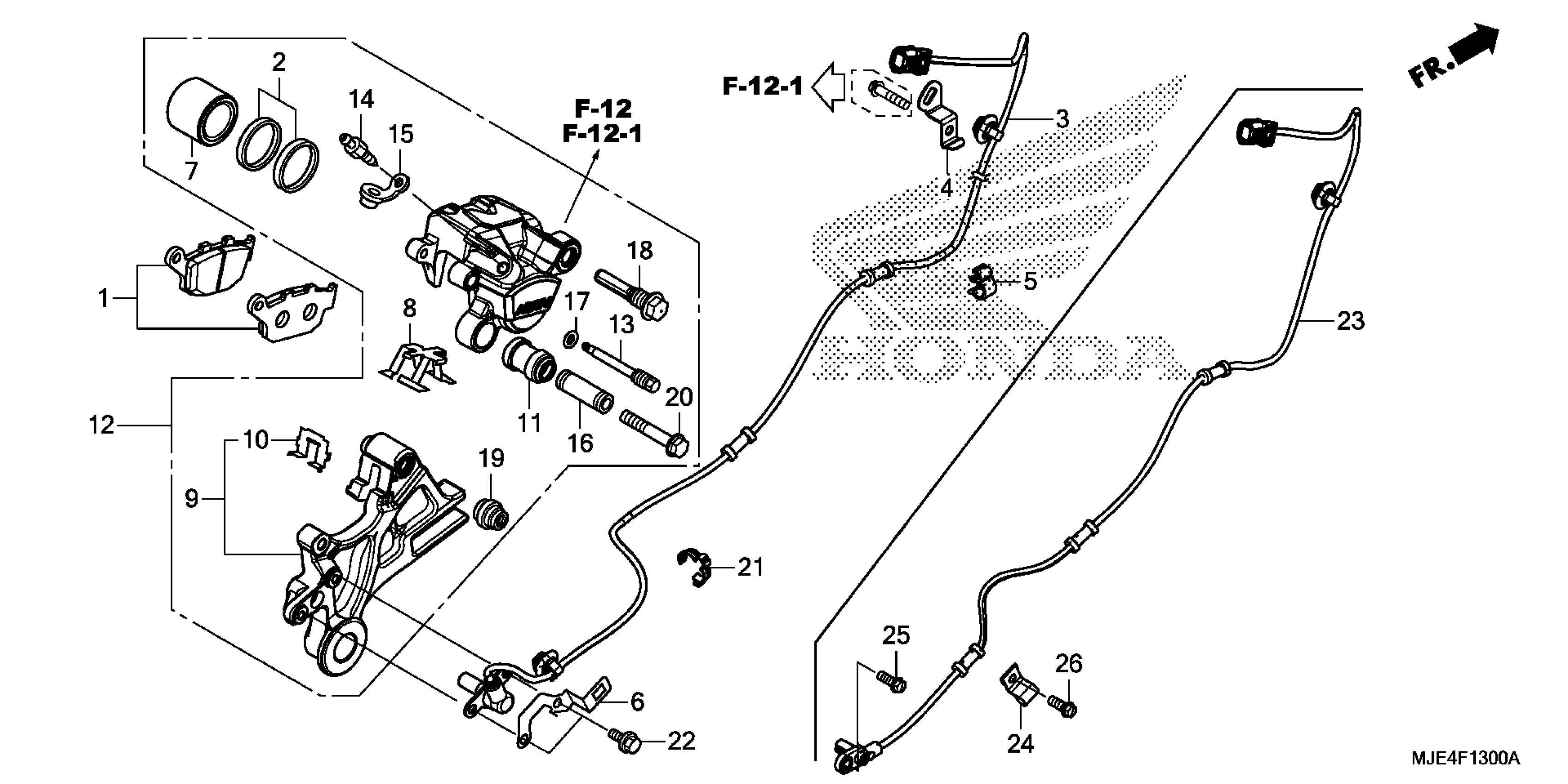

Honda CBR650F2A (18) MOTORCYCLE, THA, VIN# MLHRC740-J5400001 REAR BRAKE CALIPER Diagram

PAD SET, RR. | Use up to Frame SN J5400409. This part replaces 06435-MGZ-J01.

06435-MGZ-J02

$27.89

PAD SET, RR.

06435-MGZ-J02

$27.89

SEAL SET, PISTON

06451-443-405

$12.15

PISTON

43107-KT7-761

$34.77

SPRING, PAD

43108-MBB-006

$5.90

BRACKET, RR. BRAKE (NISSIN)

43110-MJE-D01

$64.35

RETAINER

43112-KT7-761

$8.68

BOOT, SLEEVE

43132-KT7-761

$7.85

CALIPER SUB-ASSY., RR. BRAKE (NISSIN) (MSDS)

43150-MJE-D01

$150.29

PIN, HANGER

43215-KZ4-J41

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

SLEEVE

45111-MA3-006

$12.28

RING, STOPPER

45111-MAJ-G41

$3.63

BOLT, PIN

45131-MN9-006

$14.66

BOOT B

45133-MA3-006

$5.21

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80
