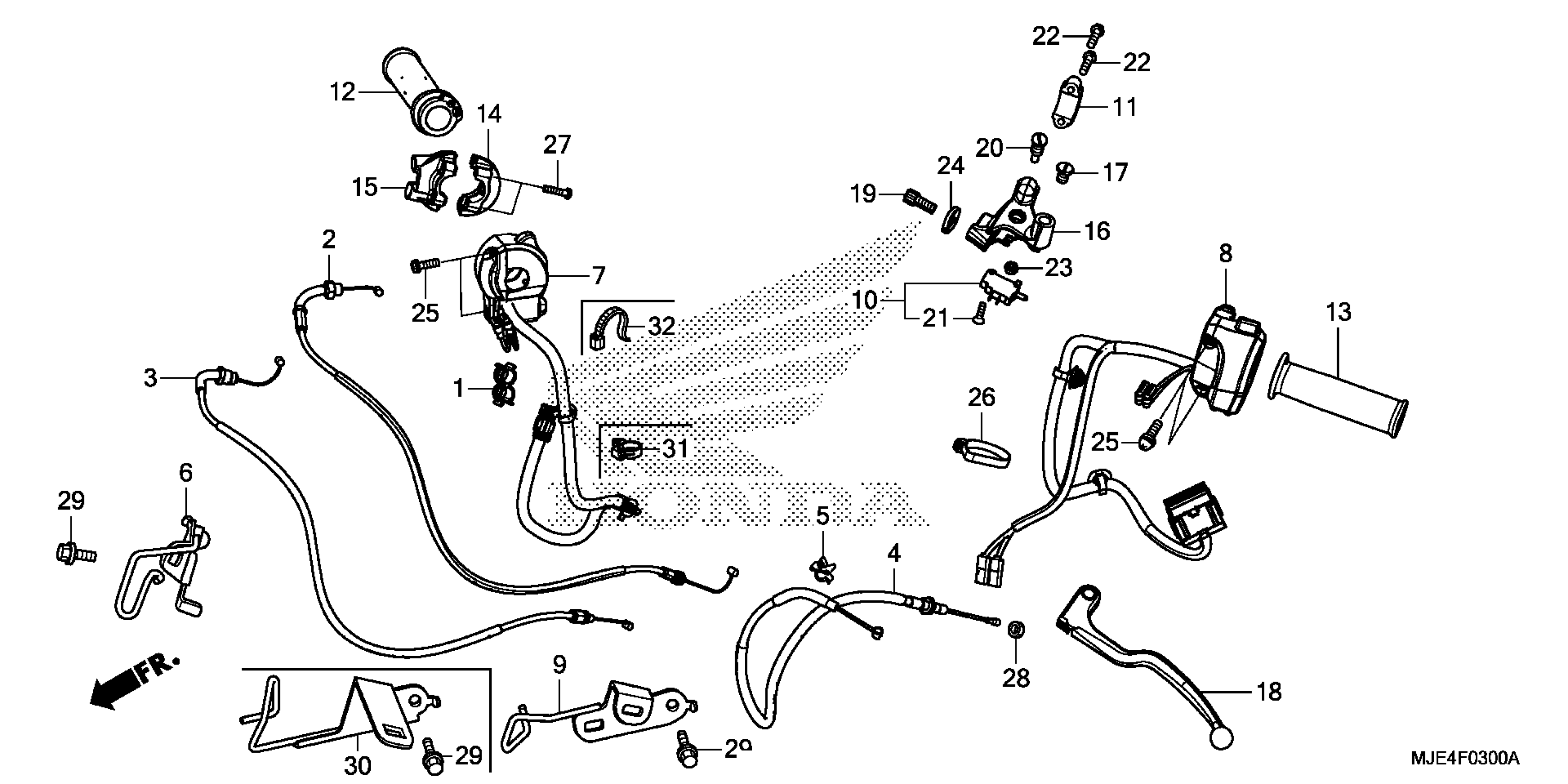

Honda CBR650F2A (18) MOTORCYCLE, THA, VIN# MLHRC740-J5400001 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE A, THROTTLE (HI-LEX)

17910-MJE-DB1

$11.20

CABLE B, THROTTLE (HI-LEX)

17920-MJE-DB1

$10.92

CABLE, CLUTCH

22870-MJE-D01

$14.43

CLIP B, HARNESS

32172-GJ1-003

$3.73

GUIDE, CABLE

35106-MJE-DB0

$7.43

SWITCH ASSY., ENGINE STOP (MINDA)

35130-MJE-DB1

$80.26

SWITCH ASSY., TURN SIGNAL (MINDA)

35200-MJE-AA1

$216.56

SWITCH SET, CLUTCH

35335-MCJ-751

$14.26

HOLDER, MASTER CYLINDER

45517-KCW-870

$11.14

GRIP, THROTTLE

53140-MGS-D30

$28.33

GRIP, THROTTLE This part replaces 53140-MGS-305.

53140-MGS-D30

$28.33

GRIP, L. HANDLE

53150-MGS-D30

$12.11

GRIP, L. HANDLE This part replaces 53150-MGS-305.

53150-MGS-D30

$12.11

HOUSING, THROTTLE (UPPER) (RR.)

53167-MGS-D30

$16.86

HOUSING, THROTTLE (LOWER) (FR.)

53168-MGS-D30

$17.98

HOLDER, CLUTCH LEVER

53172-MJE-D00

$48.03

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

LEVER, L. HANDLE (COO)

53178-MJE-305

$19.75

BOLT, WIRE ADJUSTING

53192-MJE-D00

$4.51

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

SCREW, FLAT (3X16)

90124-MCJ-752

$1.49

BOLT, FLANGE (6X22)

90131-MJE-D00

$1.49

NUT, U (6MM)

90301-782-000

$1.62

NUT, FIXING

90321-KT7-760

$10.45

SCREW-WASHER (5X16)

90508-MGS-D30

$1.87

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

SCREW, PAN (5X22)

93500-05022-0G

$1.49

NUT, HEX. (8MM)

94002-08070-0S

$1.49

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

STAY, L. CLIP

35205-MJE-DB0

$10.33

CLAMP, HARNESS

90652-HC4-003

$5.95

BAND, WIRE (BLACK)

90652-KT1-771

$4.48
