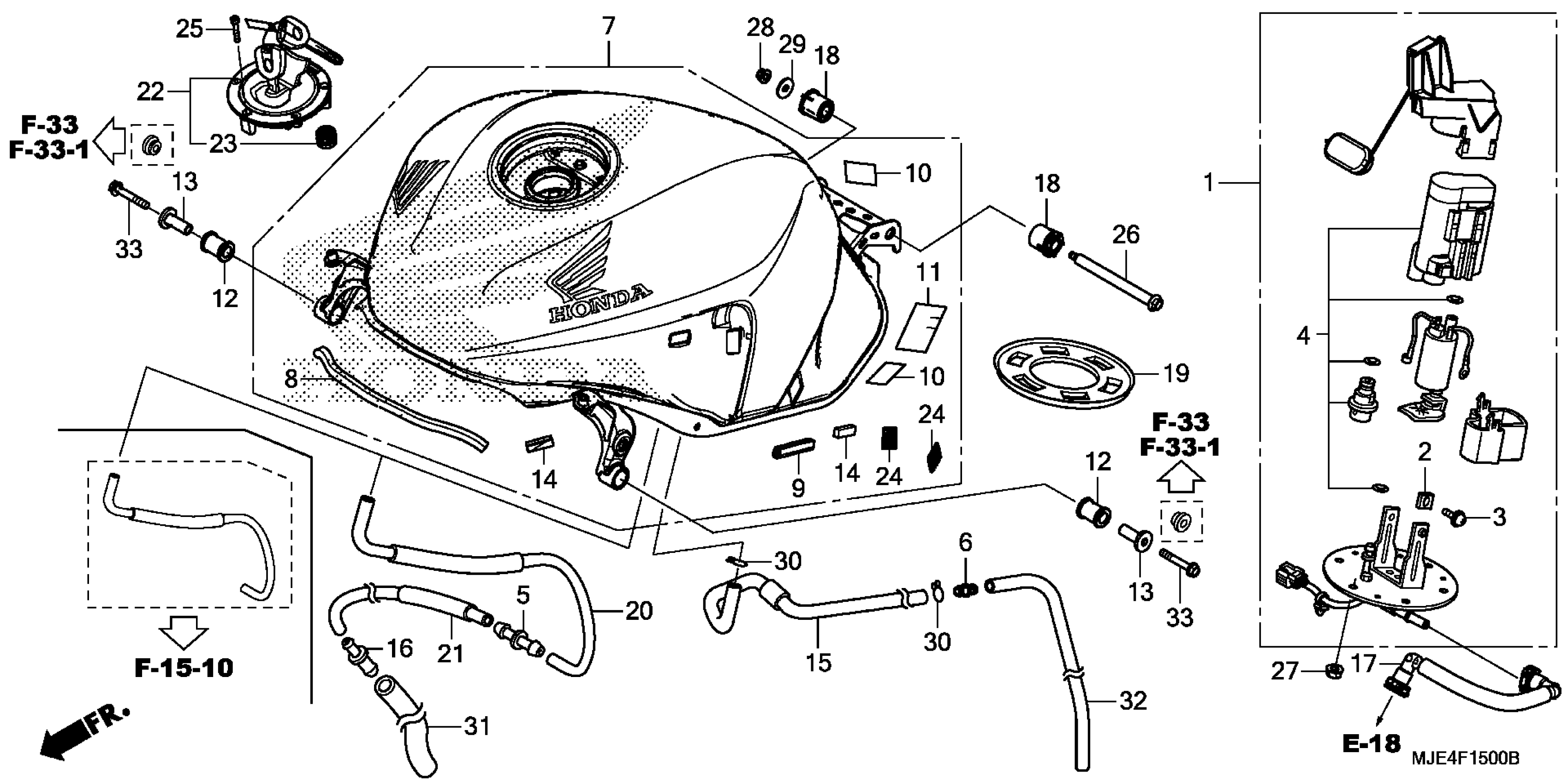

Honda CBR650F2A (18) MOTORCYCLE, THA, VIN# MLHRC740-J5400001 FUEL TANK Diagram

UNIT ASSY,FUEL PUMP This part replaces 16700-MJE-D01.

16700-MJE-D03

$471.93

UNIT ASSY,FUEL PUMP This part replaces 16700-MJE-D02.

16700-MJE-D03

$471.93

STOPPER

16711-MGS-D31

$4.84

SCREW (4X6.6)

16712-MGS-D31

$1.89

FILTER ASSY., FUEL This part replaces 16730-MGS-D31.

16730-MKT-D01

$42.30

FILTER ASSY., FUEL This part replaces 16730-MKA-D82.

16730-MKT-D01

$42.30

FILTER ASSY., FUEL This part replaces 16730-MKA-D83.

16730-MKT-D01

$42.30

FILTER ASSY., FUEL

16730-MKT-D01

$42.30

JOINT, FUEL TUBE

16958-GJ6-000

$4.53

JOINT, BREATHER TUBE

17359-419-670

$1.95

TANK ASSY., FUEL (TYPE1) (WL)

17500-MJE-DD0ZC

$830.82

TRIM, FUEL TANK

17515-MJE-D00

$14.38

TRIM, FUEL TANK

17516-MEE-D00

$3.03

SEAL, TANK

17521-KY1-300

$2.31

FILM, PROTECTOR

17521-MJE-D00

$6.66

RUBBER, RR. TANK MOUNTING (FRONT SIDE)

17534-MFJ-D00

$4.75

COLLAR

17538-KZZ-900

$2.41

FASTENER A, DUAL LOCK (8X25)

17540-MJE-D00

$1.56

TUBE, DRAIN

17543-MJE-D00

$5.90

JOINT, FUEL TUBE

17561-KVG-900

$1.98

HOSE, FUEL FEED

17570-MJE-D01

$61.56

CUSHION, RR. FUEL TANK

17572-MJE-D00

$2.39

GASKET, BASE

17574-MGS-D30

$24.44

TUBE, FUEL TANK BREATHER

17580-MJE-D00

$11.77

TUBE, FUEL TANK BREATHER MIDDLE

17581-MJE-D00

$8.90

CAP COMP This part replaces 17620-MJE-D02.

17620-MJE-D04

$209.19

SEAL, BREATHER This part replaces 17621-MGP-D61.

17621-MGP-D62

$5.14

SEAL, BREATHER

17621-MGP-D62

$5.14

FASTENER F, DUAL LOCK (20X20)

17543-MJE-DB0

$2.56

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$1.49

BOLT, HINGE (10X102.4)

90135-MJE-D00

$3.05

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

WASHER, PLAIN (6MM)

94103-06800

$1.49

CLIP, TUBE (B12.5)

95002-02130

$1.49

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80
