Description

Price

2

AXLE, FR. WHEEL

44301-MJE-D00

$49.81

3

COLLAR, R. FR. WHEEL SIDE (BOTH SIDES)

44311-MGH-640

$5.34

5

COLLAR, FR. AXLE DISTANCE

44620-MJE-D00

$7.07

6

WHEEL SUB-ASSY., FR. (TYPE1)

44650-MJE-DB0ZA

$330.28

7

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP) This part replaces 44711-MJE-DB1.

44711-MJE-DB2

$238.32

7

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP)

44711-MJE-DB2

$238.32

8

WEIGHT, BALANCE (10G) (TOHO ZINK)

44721-SEA-N02

$3.91

8

WEIGHT, BALANCE (20G) (TOHO ZINK)

44722-SEA-N02

$4.78

8

WEIGHT, BALANCE (30G) (TOHO ZINK)

44723-SEA-N02

$5.54

8

WEIGHT, BALANCE (5G) (TOHO ZINK)

44726-SEA-N02

$1.23

8

WEIGHT, BALANCE (15G) (TOHO ZINK)

44727-SEA-N02

$2.71

8

WEIGHT, BALANCE (25G) (TOHO ZINK)

44728-SEA-N02

$5.18

9

DISK, FR. BRAKE (SUNSTAR) (R. SIDE)

45251-MGZ-J01

$167.13

10

DISK, L. FR. BRAKE (SUNSTAR)

45351-MJE-D01

$159.82

11

BOLT, DISK (8X25)

90105-MGS-D30

$2.80

12

BOLT, FR. AXLE

90305-ML7-000

$9.03

13

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

$11.86

14

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.66

15

VALVE ASSY., CLAMP IN

42755-MKA-D81

$15.22

16

O-RING

42758-MKA-D81

$1.41

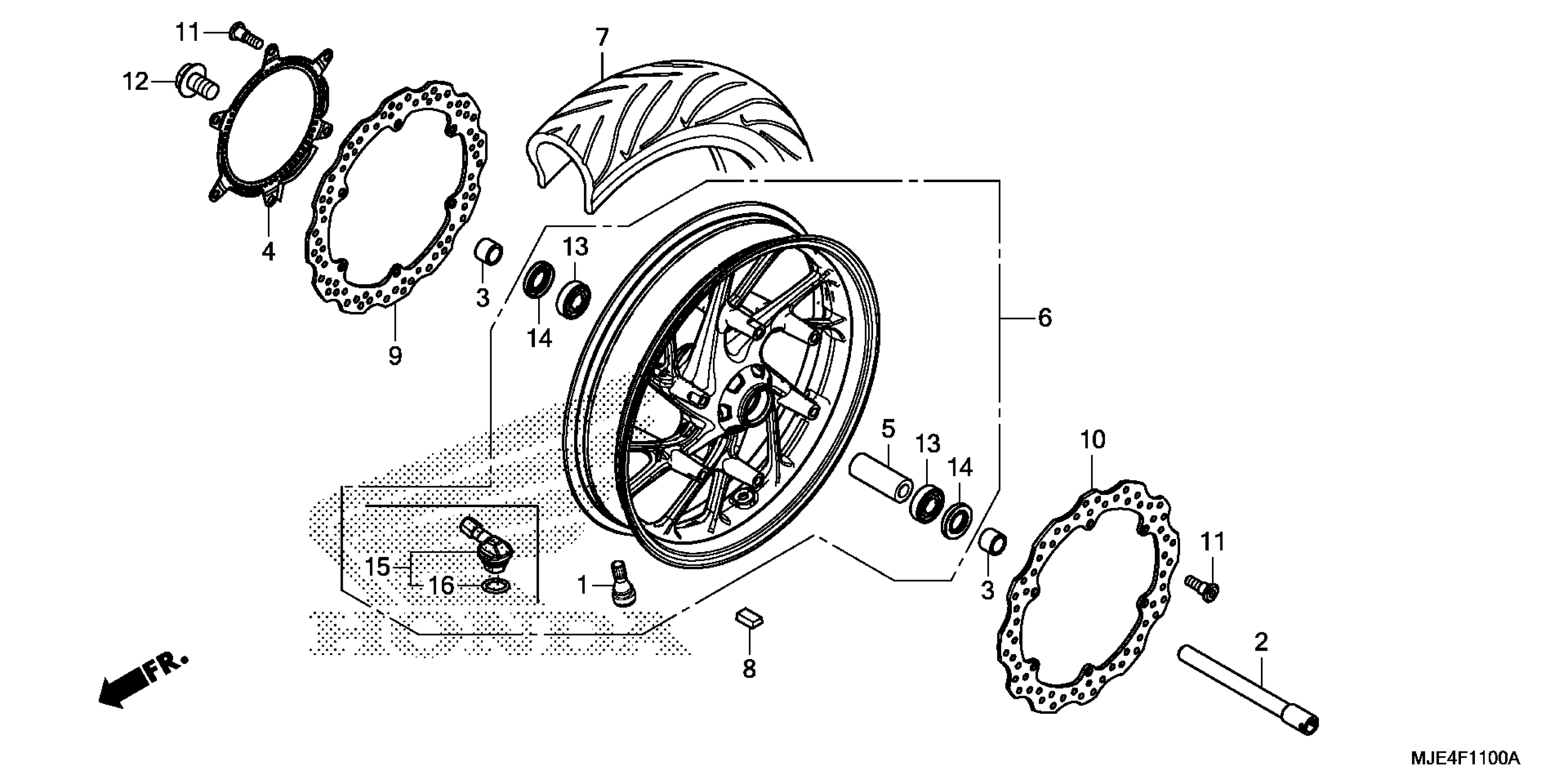

Honda CBR650F2A (18) MOTORCYCLE, THA, VIN# MLHRC740-J5400001 FRONT WHEEL Diagram
