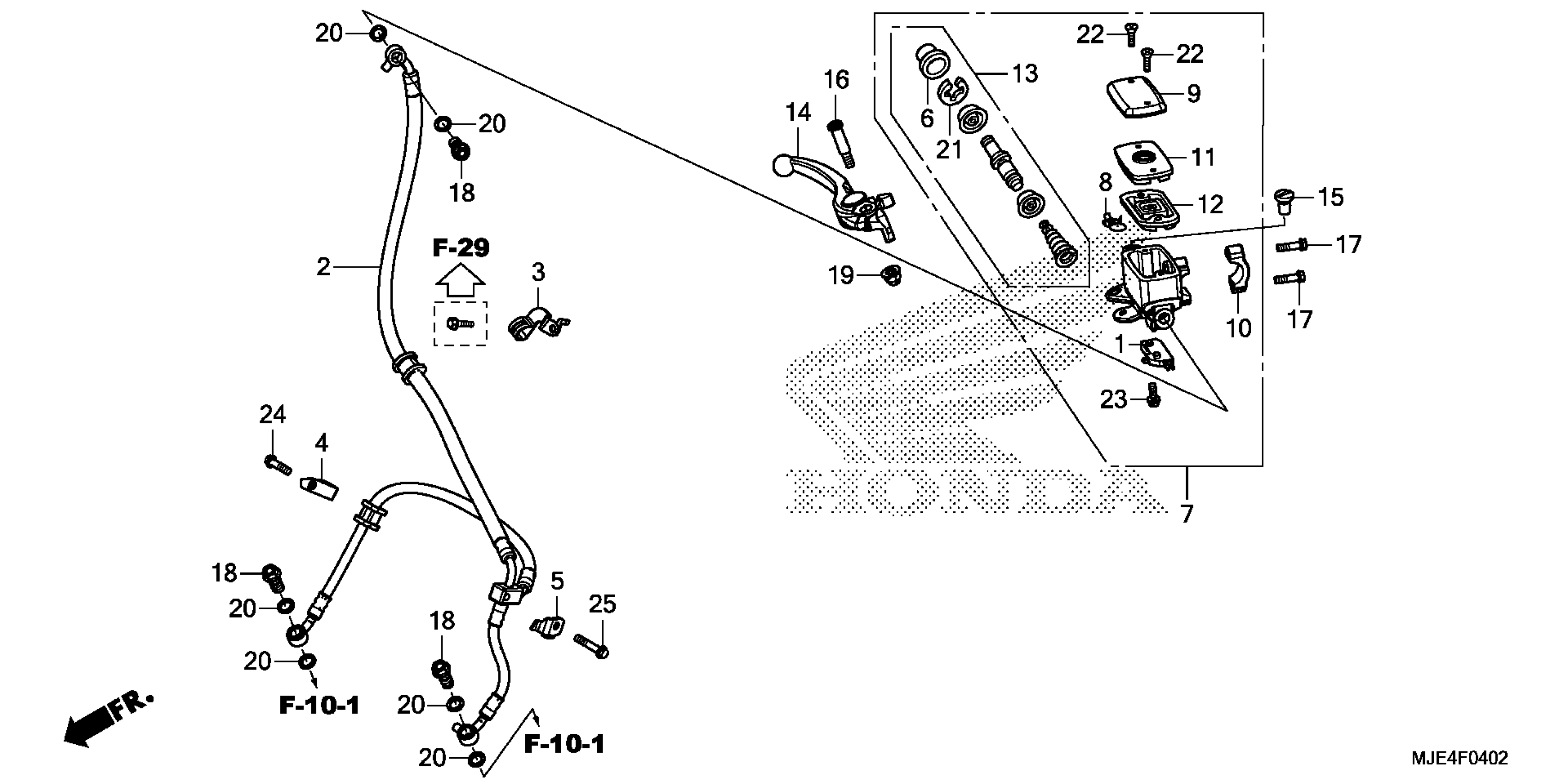

Honda CBR650F2A (18) MOTORCYCLE, THA, VIN# MLHRC740-J5400001 FRONT BRAKE MASTER (3) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

HOSE, FR. BRAKE (NICHIRIN)

45125-MJE-AA1

$67.74

CLAMP A, FR. BRAKE HOSE

45155-MJE-D00

$13.72

CLAMP A, FR. BRAKE HOSE

45156-MJE-D00

$3.97

STAY, FR. BRAKE HOSE

45158-MJE-D00

$5.90

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN) This part replaces 45510-MJE-D01.

45510-MJE-305

$109.51

MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN)

45510-MJE-305

$109.51

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

MASTER CYLINDER SET

45530-471-831

$40.86

LEVER ASSY., R. HANDLE (COO) This part replaces 53170-MJE-D01.

53170-MJE-305

$54.34

LEVER ASSY., R. HANDLE (COO)

53170-MJE-305

$54.34

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, FLANGE (6X22)

90131-MJE-D00

$1.49

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90202-KCW-870

$2.92

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

BOLT, FLANGE (6X35)

96001-06035-07

$2.06
