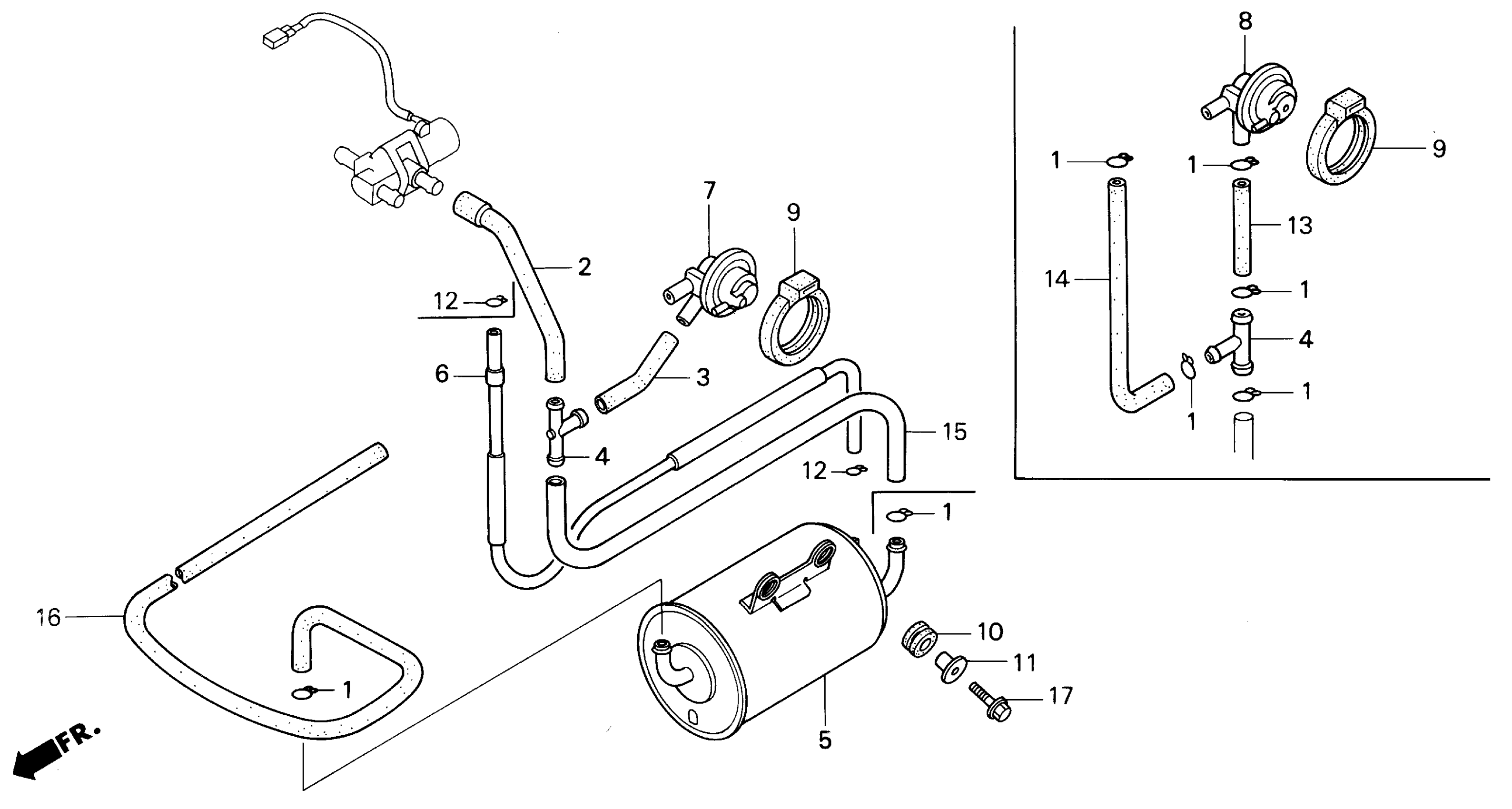

Honda CBR600SJRAC (96) MOTORCYCLE, JPN, VIN# JH2PC254-TM550001 CANISTER (AC) Diagram

#

Description
Price

1

CLIP, PURGE CONTROL VALVE TUBE

15772-MB3-000

Unavailable

2

TUBE C, AIR VENT (OUTER)

17284-MAL-770

Unavailable

3

TUBE, PURGE CONTROL VALVE

17285-MAL-770

Unavailable

4

JOINT (THREE-WAY)

17303-MJ1-790

Unavailable

5

CANISTER, EVAPORATIVE EMISSION

17410-MV9-772

Unavailable

6

TUBE, FUEL TANK BREATHER

17411-MV9-770

Unavailable

7

VALVE, EVAP EMISSION PURGE CONTROL

17440-MAL-770

Unavailable

9

RUBBER, PURGE CONTROL VALVE MOUNTING

17451-ME5-760

$12.90

10

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

11

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

11

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

12

CLIP, TUBE (B8)

95002-02080

$1.80

15

BULK HOSE, VACUUM (8X1000) (8X400)

95005-80001-20M

$23.91

16

BULK HOSE, VACUUM (8X1000) (8X750)

95005-80001-20M

$23.91

17

BOLT, FLANGE (6X22)

95701-06022-08

$1.72
