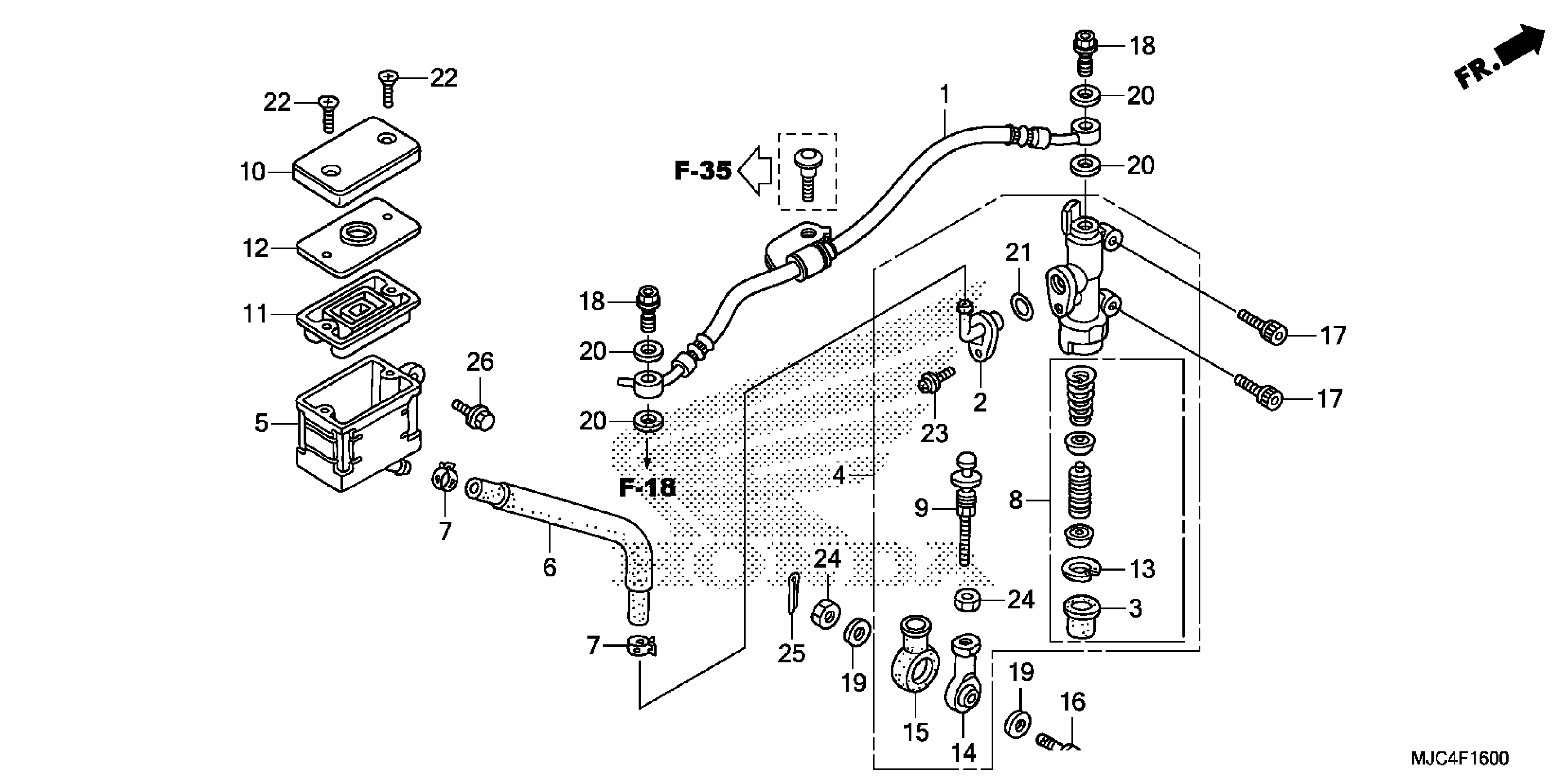

Honda CBR600RRAC (14) MOTORCYCLE, JPN, VIN# JH2PC401-EK700001 TO JH2PC401-EK799999 REAR BRAKE MASTER CYLINDER (CBR600RR) Diagram

HOSE, RR. BRAKE (NICHIRIN) This part replaces 43310-MFJ-D02.

43310-MJC-N41

$56.21

HOSE, RR. BRAKE (NICHIRIN)

43310-MJC-N41

$56.21

CONNECTOR

43503-MEE-006

$7.05

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR.

43510-MFJ-D01

$147.54

MASTER CYLINDER SUB-ASSY., RR. This part replaces 43510-MFJ-305.

43510-MFJ-D01

$147.54

CUP, OIL

43511-KV3-831

$23.70

HOSE, RR. MASTER CYLINDER

43512-MFJ-D01

$16.14

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$46.51

ROD, PUSH

43530-MCZ-006

$24.52

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

CIRCLIP

46182-MEL-D21

$1.93

TIE ROD

46505-MFJ-D01

$63.59

COVER, DUST

46506-MFJ-D00

$7.77

BOLT, SOCKET (8X30)

90125-MCJ-750

$6.67

BOLT, SOCKET (6X20)

90135-MEL-000

$1.62

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, SPECIAL (8MM)

90443-GC8-000

$2.66

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW, FLAT (4X40)

93600-04040-1G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

BOLT, FLANGE (6X16)

96300-06016-00

$1.49
