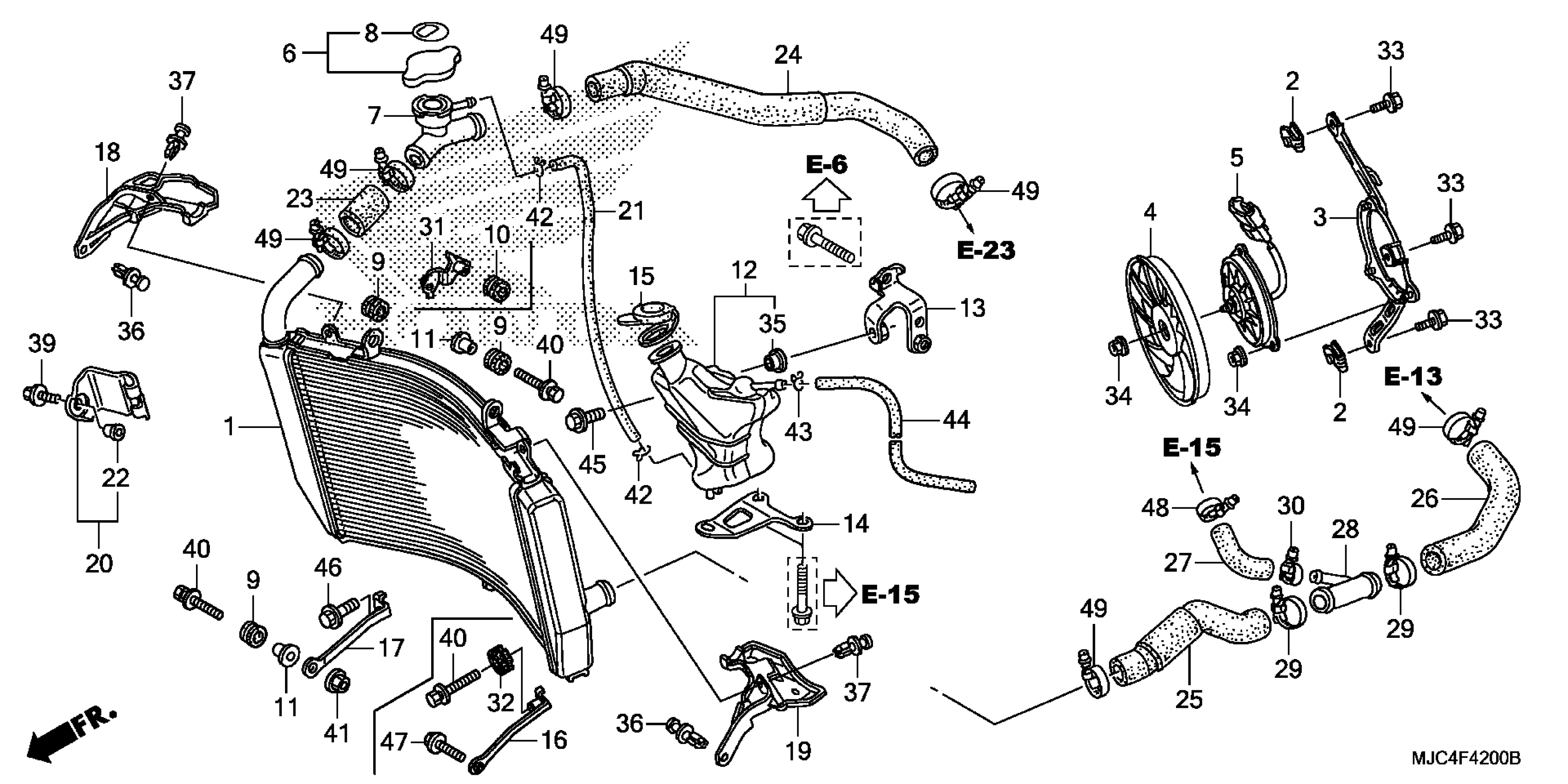

Honda CBR600RRAC (14) MOTORCYCLE, JPN, VIN# JH2PC401-EK700001 TO JH2PC401-EK799999 RADIATOR Diagram

#

Description
Price

1

RADIATOR (COO)

19010-MFJ-305

$652.16

2

NUT, SETTING (6MM)

19014-KEA-003

$3.10

3

SHROUD (COO)

19015-MFJ-305

$68.72

4

FAN, COOLING

19020-MFJ-D01

$38.20

5

MOTOR ASSY., FAN

19030-MFJ-D01

$306.00

6

CAP, RADIATOR

19037-GEE-710

$30.28

7

FILLER, NECK

19039-MFJ-D01

$31.03

8

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

9

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

11

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

12

TANK, RAD RESERVE This part replaces 19101-MFJ-A40.

19101-MFJ-A42

$40.54

12

TANK, RAD RESERVE This part replaces 19101-MFJ-A41.

19101-MFJ-A42

$40.54

12

TANK, RAD RESERVE This part replaces 19101-MFJ-305.

19101-MFJ-A42

$40.54

13

STAY, RES.TANK This part replaces 19102-MFJ-A40.

19102-MFJ-A41

$15.18

13

STAY, RES.TANK

19102-MFJ-A41

$15.18

14

STAY, RESERVE TANK (LOWER)

19103-MFJ-A40

$5.28

15

CAP, RESERVE TANK

19104-MB0-700

$12.16

17

STAY, RADIATOR (LOWER)

19105-MFJ-D00

$6.14

18

PLATE, R. RADIATOR HEAT GUARD

19106-MFJ-D00

$6.36

19

PLATE, L. RADIATOR HEAT GUARD

19107-MFJ-D01

$6.98

20

GUARD, RADIATOR

19108-MFJ-D00

$6.97

21

TUBE, FILLER-RESERVE TANK

19109-MJC-A00

$19.64

22

COLLAR, RADIATOR COVER

19121-KE7-000

$2.39

23

HOSE, R. RADIATOR (UPPER)

19502-MFJ-D00

$3.92

24

HOSE, RADIATOR

19504-MJC-A00

$33.64

25

HOSE, L. RADIATOR (UPPER)

19511-MJC-A00

$33.64

26

HOSE, L. RADIATOR (LOWER)

19512-MFJ-D00

$17.57

27

HOSE, OIL COOLER

19513-MFJ-D00

$6.07

28

JOINT, HOSE (THREE-WAY)

19514-MFJ-D00

$12.45

29

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

30

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

33

BOLT-WASHER (6X12)

90120-GHB-601

$1.98

34

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

35

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

36

CLIP, SPLASH SHIELD

90657-SB0-003

$5.26

37

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.24

39

BOLT-WASHER (4X12)

93404-04012-08

$1.49

40

BOLT-WASHER (6X25)

93404-06025-00

$1.49

41

NUT, FLANGE (6MM)

94050-06000

$1.49

42

CLIP, TUBE (B10)

95002-02100

$1.90

43

CLIP, TUBE (C9)

95002-50000

$1.49

44

BULK HOSE, VACUUM (5X3000) (5X180)

95005-50003-30M

$20.85

45

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

46

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

48

CLAMP, WATER HOSE (D27)

19502-MJC-A00

$9.51

49

CLAMP, WATER HOSE (35MM)

19504-MGP-000

$9.41
