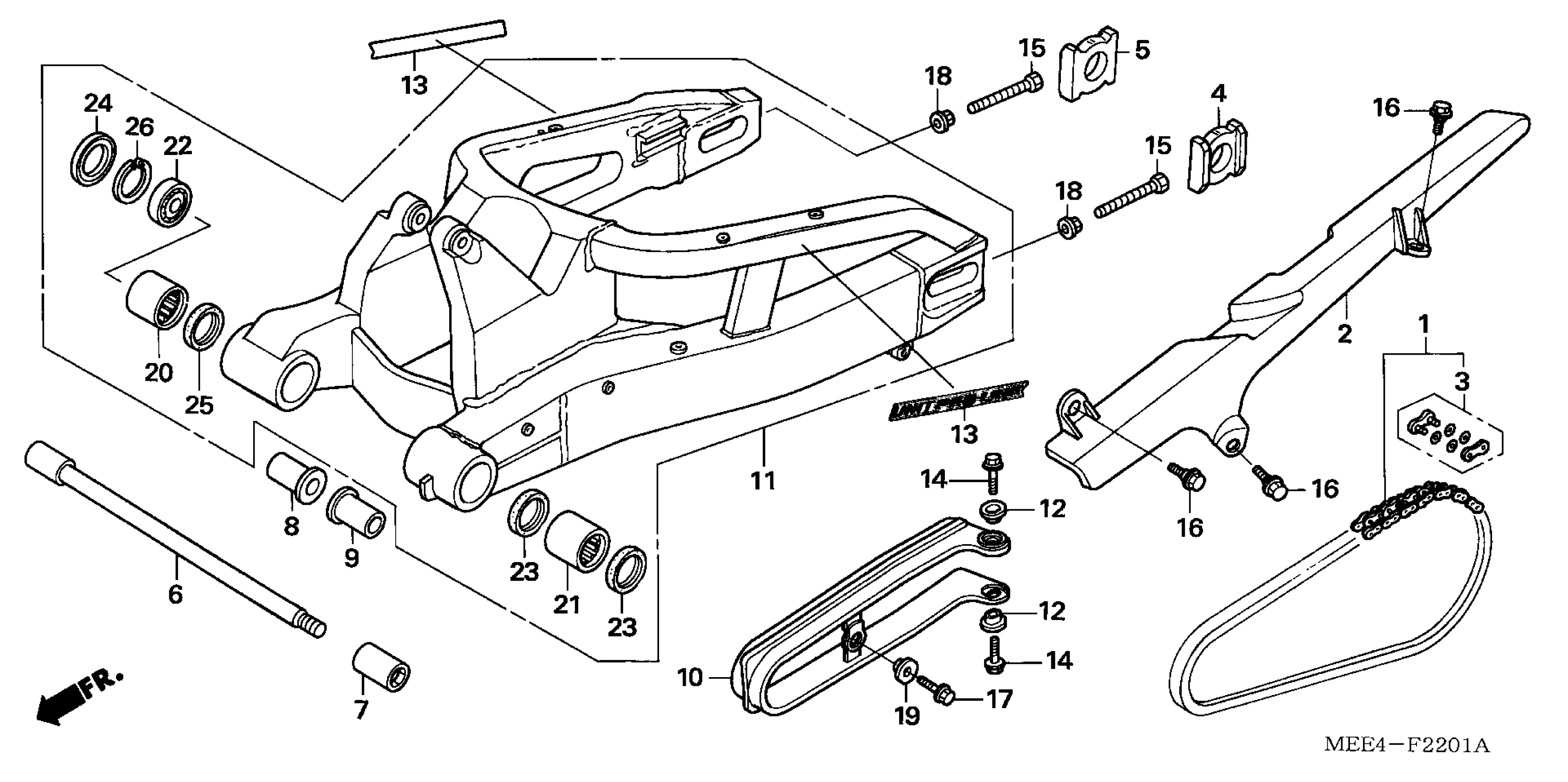

Honda CBR600RRAC (06) MOTORCYCLE, JPN, VIN# JH2PC371-6M300001 TO JH2PC371-6M399999 SWINGARM ('05-) Diagram

#

Description
Price

1

CHAIN SET, DRIVE (DID525HV-112L-120L) (DAIDO) (STANDARD LINK 112L)

06405-MAL-P00

Unavailable

1

CHAIN SET, DRIVE (RK525ROZ1) (112L-120L) (RK EXCEL) (STANDARD LINK 112L)

06405-MAL-P10

Unavailable

2

CASE, DRIVE CHAIN This part replaces 40510-MEE-000.

40510-MEE-010

$44.98

2

CASE, DRIVE CHAIN

40510-MEE-010

$44.98

3

MASTER LINK SET (DAIDO)

40535-MAL-G01

$7.28

3

MASTER LINK SET (RK EXCEL)

40535-MAL-G02

$7.74

4

COLLAR, L. RR. AXLE

42305-MEE-D00

$30.48

5

COLLAR, R. RR. AXLE

42306-MEE-D00

$23.26

6

BOLT, SWINGARM PIVOT

52101-MEE-D00

Unavailable

7

NUT, SWINGARM PIVOT

52102-MCW-D00

$15.46

8

COLLAR, R. PIVOT DISTANCE

52142-MEE-000

Unavailable

9

COLLAR, L. PIVOT DISTANCE

52143-MEE-000

Unavailable

10

SLIDER, CHAIN

52170-MEE-000

$30.13

11

SWINGARM SUB-ASSY., RR.

52200-MEE-D00

Unavailable

12

COLLAR

81312-GJ5-000

$3.08

13

MARK (UNIT PROLINK)

87121-MEE-000

$3.49

14

BOLT, FLANGE (6X18)

90105-MY9-000

$2.67

15

BOLT, HEX. (8X50)

90106-MCF-D00

$2.20

16

BOLT, FLANGE (6MM)

90113-MAS-E00

$2.38

17

BOLT, FLANGE (6X14)

90130-MCJ-000

Unavailable

18

NUT, HEX. (8MM)

90309-357-000

$3.16

19

WASHER (6MM)

90485-MB2-000

$1.83

20

BEARING, NEEDLE

91071-MBW-E11

$15.45

21

BEARING, NEEDLE

91071-MR7-003

$22.90

22

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$16.17

23

DUST SEAL (28X37X4)

91202-MR7-003

$5.91

24

DUST SEAL (26X37X5)

91214-MR7-003

$6.51

25

DUST SEAL (28X34X4)

91251-MBW-E11

$4.81

26

CIRCLIP (INNER) (37MM)

94520-37000

$1.99
