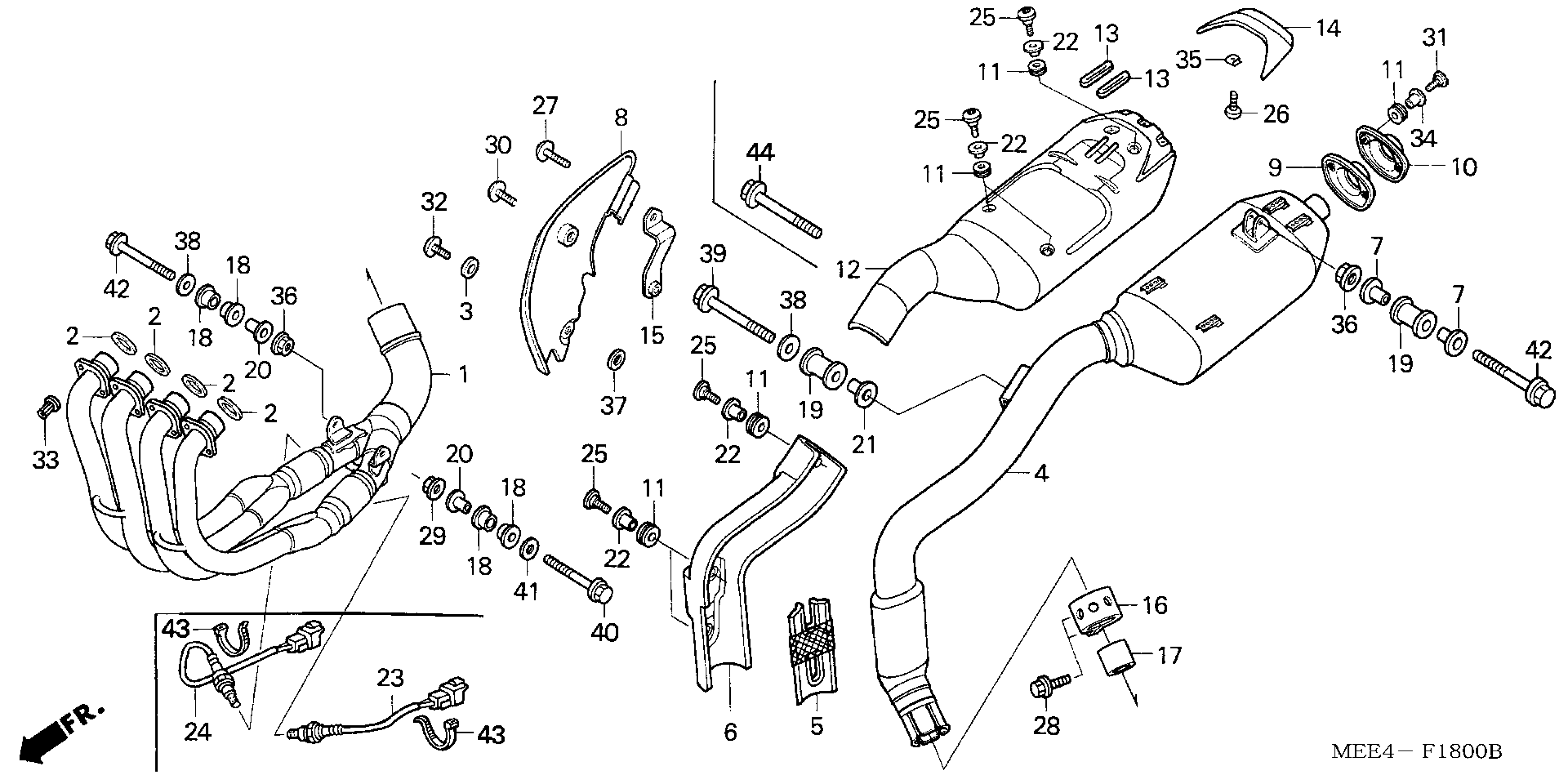

Honda CBR600RRAC (04) MOTORCYCLE, JPN, VIN# JH2PC371-4M100001 TO JH2PC371-4M199999 MUFFLER ('03-'04) Diagram

#

Description
Price

1

PIPE, EX.

18150-MEE-611

$802.97

2

GASKET, EX. PIPE

18291-MN4-920

$5.07

3

RUBBER, PROTECTOR GASKET

18293-GZ5-000

$2.80

4

MUFFLER, EX.

18305-MEE-771

$603.35

5

MAT, PROTECTOR (INNER)

18324-MEE-010

Unavailable

6

PROTECTOR, EX. PIPE (INNER)

18325-MEE-003

Unavailable

7

COLLAR, RR. CHAMBER (8.5X15)

18327-KAE-000

$2.50

8

PROTECTOR, EX. PIPE (OUTER)

18330-MEE-D00

Unavailable

8

PROTECTOR, EX. PIPE (OUTER) This part replaces 18330-MEE-000.

18330-MEE-D00

Unavailable

9

CAP, RR. MUFFLER

18340-MEE-611

Unavailable

10

COVER, RR. MUFFLER

18343-MEE-000

Unavailable

11

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.01

12

PROTECTOR, MUFFLER

18345-MEE-003

Unavailable

13

COVER, PROTECTOR

18346-MEE-000

$7.90

14

COVER, MUFFLER (UPPER)

18350-MEE-000

$7.78

15

STAY, PROTECTOR (OUTER)

18351-MEE-000

Unavailable

16

BAND, MUFFLER

18372-MAT-000

$30.49

17

GASKET, MUFFLER

18391-ML0-003

$26.89

18

RUBBER, EX. MOUNTING

18421-MBG-610

$6.50

19

RUBBER, MUFFLER MOUNTING

18421-MB0-000

$6.05

20

COLLAR, MUFFLER MOUNTING

18422-MAL-600

$5.65

21

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$7.87

22

COLLAR, TURN SIGNAL STAY

33619-459-840

$2.37

23

SENSOR, OXYGEN (1-2)

36531-MEE-611

Unavailable

24

SENSOR, OXYGEN (3-4)

36532-MEE-611

$173.44

25

SCREW, PAN (6X10)

90105-MM4-000

$2.04

26

SCREW, VISOR SETTING

90114-KW7-900

$2.69

27

BOLT, SPECIAL (6X16)

90116-MAS-E00

$2.85

28

BOLT, FLANGE (8X35)

90161-ML7-000

$3.50

30

SCREW, SPECIAL (5X9)

90301-MEE-000

$1.59

31

SCREW, SPECIAL (6X16)

90303-MEE-000

$3.53

32

SCREW, SPECIAL (5X17)

90304-MEE-000

$1.90

33

NUT, FLANGE (7MM)

90304-MM5-000

$4.71

34

COLLAR, MUFFLER COVER

90306-MEE-000

$1.90

35

NUT, CLIP (5MM)

90312-MT3-000

$4.37

36

NUT, FLANGE (8MM)

94050-08000

$0.87

37

WASHER, PLAIN (5MM)

94103-05000

$0.57

38

WASHER, PLAIN (8MM)

94103-08000

$0.60

40

BOLT, FLANGE (8X45)

90129-MEE-610

Unavailable

41

WASHER, PLAIN (8MM)

94103-08000

$0.60

42

BOLT, FLANGE (8X50)

95801-08050-00

$2.85

42

BOLT, FLANGE (8X50) This part replaces 96400-08050-00.

95801-08050-00

$2.85

43

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

44

BOLT, FLANGE (8X42)

90103-MBN-670

$1.43
