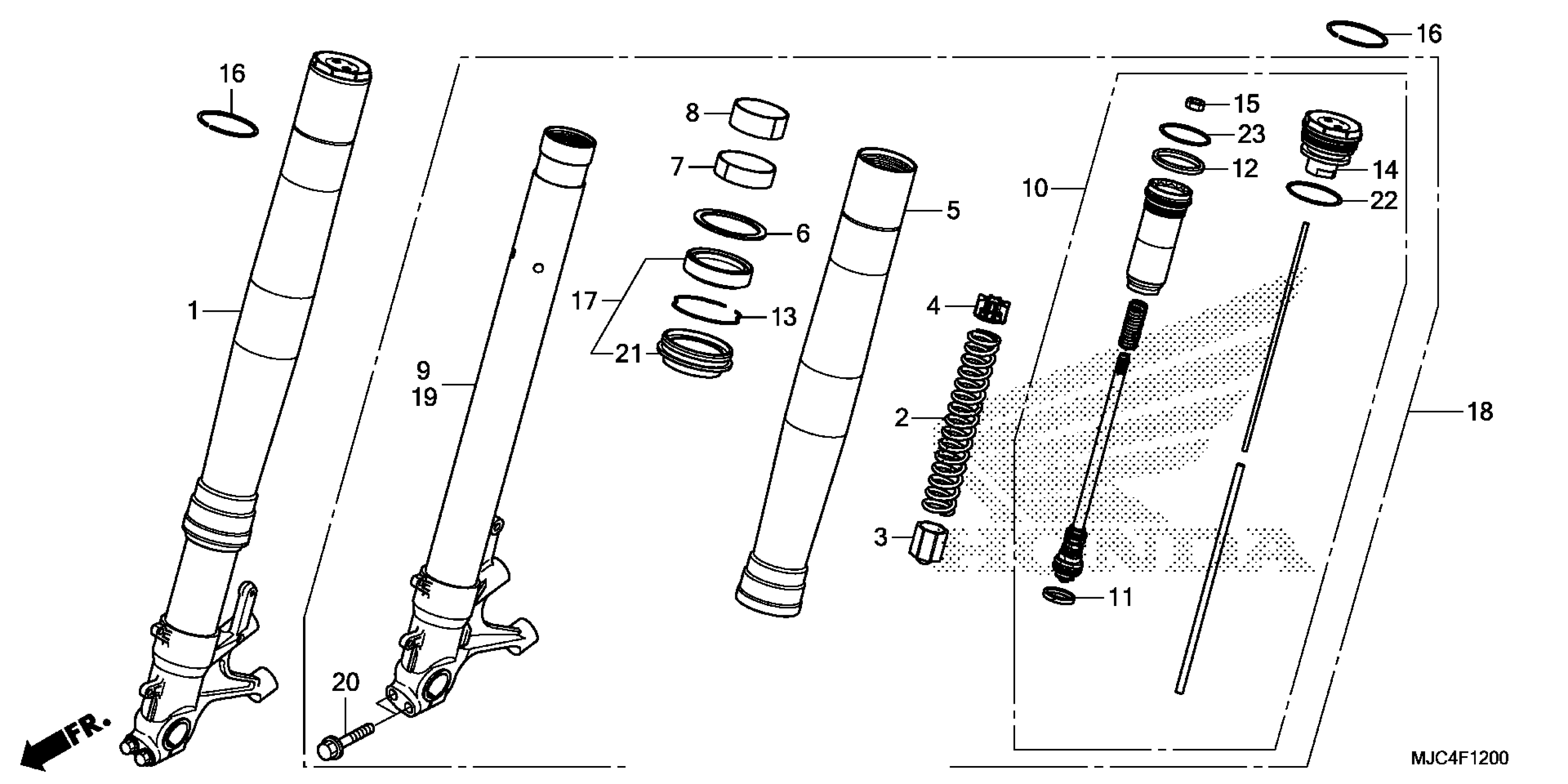

Honda CBR600RRA (14) MOTORCYCLE, JPN, VIN# JH2PC400-EK700001 TO JH2PC400-EK799999 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (COO) (SHOWA) This part replaces 51400-MJC-A02.

51400-MJC-315

$1,147.54

1

FORK ASSY., R. FR. (COO) (SHOWA) This part replaces 51400-MJC-305.

51400-MJC-315

$1,147.54

1

FORK ASSY., R. FR. (COO) (SHOWA)

51400-MJC-315

$1,147.54

2

SPRING, FR. FORK

51401-MJC-A01

$80.63

3

COLLAR, SPRING

51403-MJC-A01

$12.19

4

COLLAR B, SPRING

51404-MJC-A01

$9.32

5

TUBE (OUTER)

51410-MJC-A01

$494.57

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.88

7

BUSH, GUIDE

51414-MFJ-A51

$6.93

8

BUSH, SLIDER

51415-MJC-A01

$11.09

9

PIPE, R. SLIDE

51425-MJC-A01

$402.01

10

ROD, PISTON

51430-MJC-A01

$680.54

11

RING, PISTON

51437-MJC-A01

$6.73

12

RING B, PISTON

51438-MJC-A01

$6.91

13

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

14

BOLT, FR. FORK

51450-MJC-A01

$65.68

15

NUT, HEX.

51451-MGP-D01

$1.76

16

RING, STOPPER

51455-MEE-D01

$2.44

17

SEAL SET, FR. FORK This part replaces 51490-MER-R61.

51490-MKA-D81

$20.90

17

SEAL SET, FR. FORK

51490-MKA-D81

$20.90

18

FORK ASSY., L. FR. (COO) (SHOWA) This part replaces 51500-MJC-A02.

51500-MJC-315

$1,199.44

18

FORK ASSY., L. FR. (COO) (SHOWA) This part replaces 51500-MJC-305.

51500-MJC-315

$1,199.44

18

FORK ASSY., L. FR. (COO) (SHOWA)

51500-MJC-315

$1,199.44

19

PIPE, L. SLIDE

51525-MJC-A01

$402.01

20

BOLT, FLANGE (8X45)

90109-MR7-000

Unavailable

21

DUST SEAL (SHOWA)

91251-MKA-D81

$7.88

21

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.

91251-MKA-D81

$7.88

22

O-RING (39.7X2.4)

91258-MEE-D01

$1.96

23

O-RING (37.55X1.78)

91258-MJC-A01

$4.93
