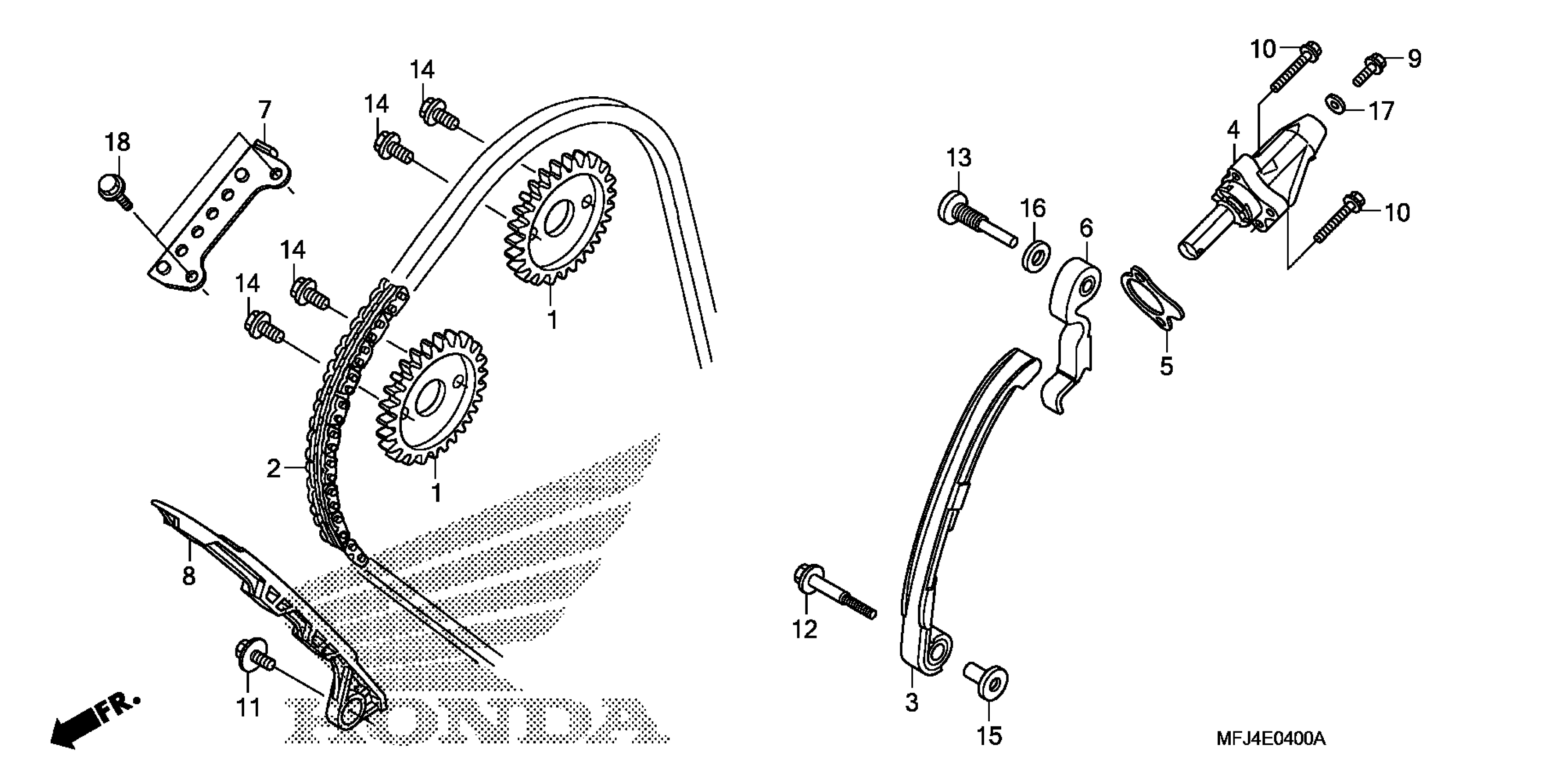

Honda CBR600RRA (07) MOTORCYCLE, JPN, VIN# JH2PC400-7M000001 TO JH2PC400-7M099999 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (34T)

14321-MEE-000

$52.43

CHAIN, CAM (116L) (BORG WARNER)

14401-MEE-003

$76.02

TENSIONER A, CAM CHAIN

14510-MFJ-D00

$74.42

LIFTER ASSY., TENSIONER | Use up to Engine SN 2059610 This part replaces 14520-MEE-003.

14520-MEE-013

$98.23

LIFTER ASSY., TENSIONER

14520-MEE-013

$98.23

GASKET, TENSIONER HOLE

14523-MCW-003

$4.45

TENSIONER B, CAM CHAIN

14530-MEE-D00

$68.13

GUIDE B, CAM CHAIN

14546-MCJ-000

$45.51

GUIDE A, CAM CHAIN

14620-MEE-000

$43.49

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

BOLT, FLANGE (6X25) This part replaces 90010-GHB-670.

96001-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

PIVOT, CAM CHAIN TENSIONER

90022-MFJ-D00

$2.25

SHAFT B, CAM CHAIN TENSIONER

90023-MFJ-D00

$4.48

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

COLLAR, CAM CHAIN TENSIONER

90401-MFJ-D00

$6.84

WASHER, SEALING (10MM)

90403-MG7-000

$3.26

WASHER, SEALING (6MM)

90442-397-000

$2.28

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
