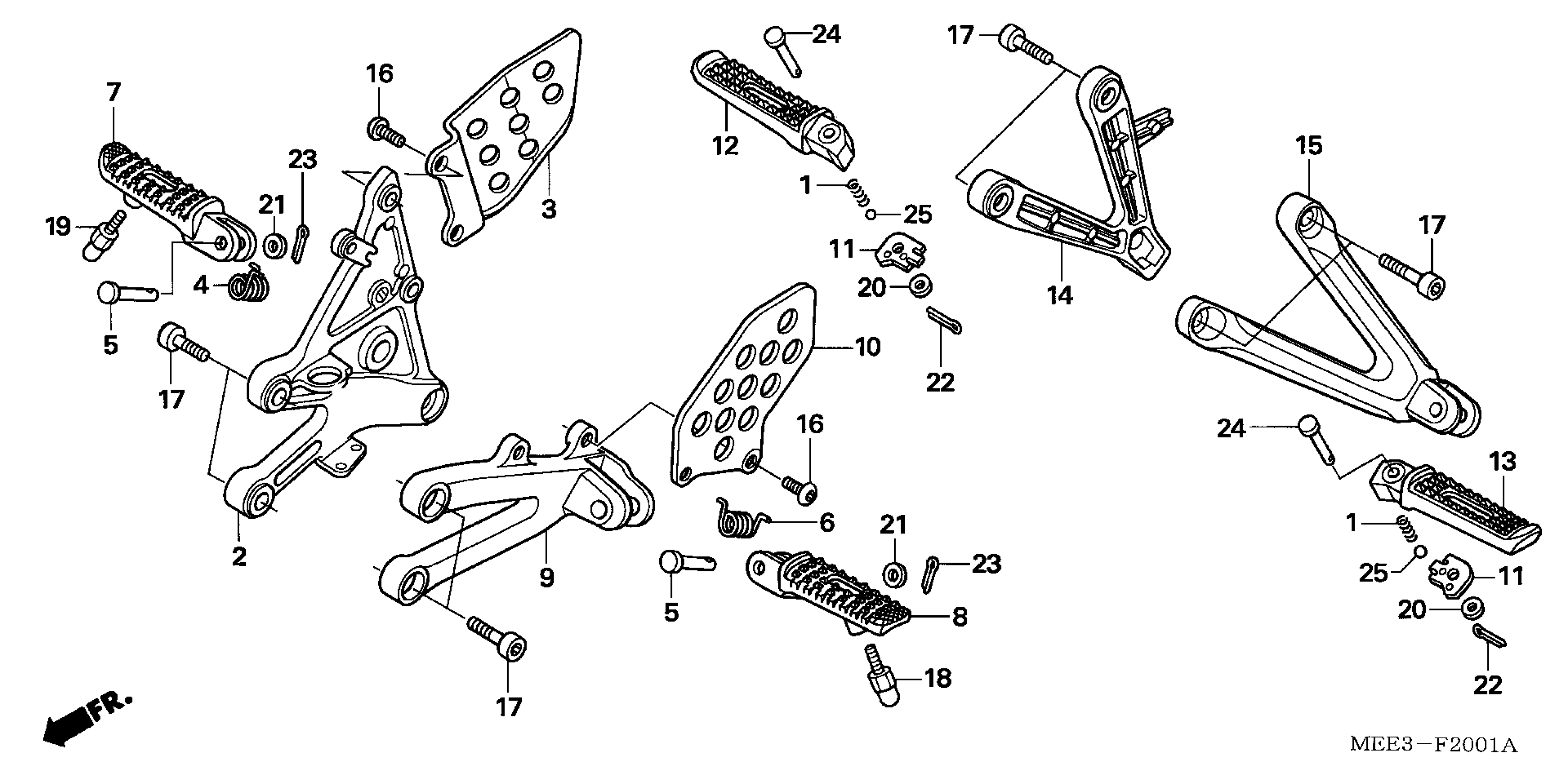

Honda CBR600RRA (06) MOTORCYCLE, JPN, VIN# JH2PC370-6M300001 TO JH2PC370-6M399999 STEP ('05-) Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

HOLDER, R. MAIN STEP

50600-MEE-D00

Unavailable

3

GUARD, R. STEP This part replaces 50607-MEE-000.

50607-MEE-010

$13.74

4

SPRING, R. STEP RETURN

50617-MCJ-750

$3.95

5

PIN, STEP BAR

50639-ML0-010

Unavailable

6

SPRING, L. STEP RETURN

50644-MCJ-750

$3.95

7

ARM, R. MAIN STEP

50660-MEE-000

$61.67

8

ARM, L. MAIN STEP

50665-MEE-000

$61.67

9

HOLDER, L. MAIN STEP

50700-MEE-D00

$72.23

10

GUARD, L. STEP

50707-MEE-000

$12.15

11

PLATE, PILLION STEP CLICK

50718-MEE-D00

$2.41

12

ARM, R. PILLION STEP (COO) This part replaces 50720-MEL-D00.

50720-MEL-305

$46.24

12

ARM, R. PILLION STEP (COO)

50720-MEL-305

$46.24

13

ARM, L. PILLION STEP (COO) This part replaces 50730-MEL-D00.

50730-MEL-305

$52.18

13

ARM, L. PILLION STEP (COO)

50730-MEL-305

$52.18

14

HOLDER, R. PILLION STEP

50750-MEE-D00

Unavailable

15

HOLDER, L. PILLION STEP

50760-MEE-D00

$53.45

16

SCREW, PAN (6X14)

90118-MR1-000

$2.88

17

BOLT, SOCKET (8X22)

90157-ME9-000

$5.32

18

BOLT, SPECIAL CAP (6X10)

90176-MEE-000

$1.91

19

BOLT, HEX. CAP (6X10)

92501-06010-0A

$1.88

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

20

WASHER, PLAIN (6MM)

94101-06800

Unavailable

21

WASHER, PLAIN (8MM)

94102-08000

$0.86

22

PIN, SPLIT (1.6X12)

94201-16120

$0.94

23

PIN, SPLIT (2.0X15)

94201-20150

$0.94

24

PIN C, PILLION STEP

95015-83000

$2.19

25

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
