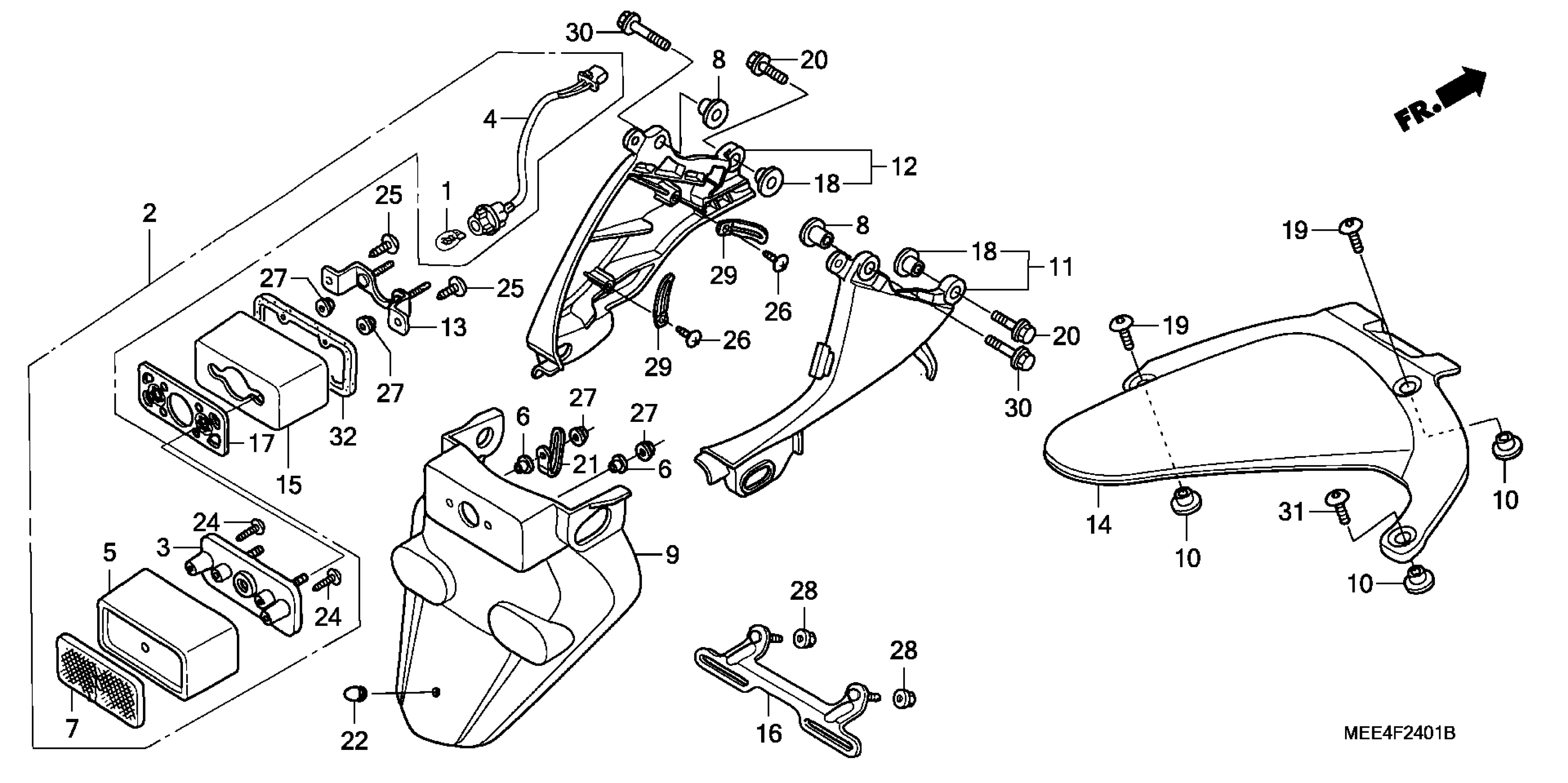

Honda CBR600RRA (06) MOTORCYCLE, JPN, VIN# JH2PC370-6M300001 TO JH2PC370-6M399999 REAR FENDER ('05-) Diagram

#

Description
Price

1

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.66

2

LIGHT ASSY., LICENSE (12V 5W)

33720-MEE-D00

$109.04

3

BASE, LICENSE

33721-MEE-003

Unavailable

4

SOCKET, LICENSE

33722-MEE-D00

Unavailable

5

COVER, LICENSE

33723-MEE-003

Unavailable

6

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.17

7

REFLECTOR, REFLEX

33741-MZ7-003

$20.57

8

COLLAR, CHAIN CASE

40514-310-000

$5.83

9

FENDER A, RR.

80100-MEE-A00

Unavailable

10

COLLAR, FENDER SETTING

80103-MCJ-750

$2.35

11

STAY, R. FENDER A

80105-MEE-D00

Unavailable

12

STAY, L. FENDER A

80106-MEE-D00

$8.88

13

STAY, LICENSE LIGHT BRACKET

80118-MEE-A00

Unavailable

14

FENDER C, RR.

80120-MEE-D00

$19.87

15

BRACKET, LICENSE LIGHT

80201-MEE-A00

$6.46

16

BRACKET, NUMBER PLATE

84700-MEE-670

Unavailable

17

RUBBER, LICENSE LIGHT

84703-MEE-D00

Unavailable

18

COLLAR, SIDE MOUNTING

90001-961-670

$5.12

19

SCREW, PAN (5X20)

90103-MBG-000

$1.84

20

BOLT, FLANGE (6X29) (GUIDE)

90166-MEE-D00

$1.72

21

CLIP (4X50)

90601-KJ9-000

$2.87

22

PLUG, CONE

90899-KL8-000

$2.97

24

SCREW, TAPPING (4X16)

93901-34410

$0.81

25

SCREW, TAPPING (4X10)

93913-14120

$0.83

26

SCREW, TAPPING (4X10) (PO)

93913-14180

$0.83

27

NUT, FLANGE (5MM)

94050-05000

$1.19

28

NUT, FLANGE (6MM)

94050-06070

$1.32

29

CLIP, WIRE (2X40)

94591-24000

$1.97

30

BOLT, FLANGE (6X20)

96300-06020-00

$1.17

31

SCREW, PAN (5X15)

90113-MCJ-000

$2.03

32

GASKET, LENS

33729-MEE-003

Unavailable
