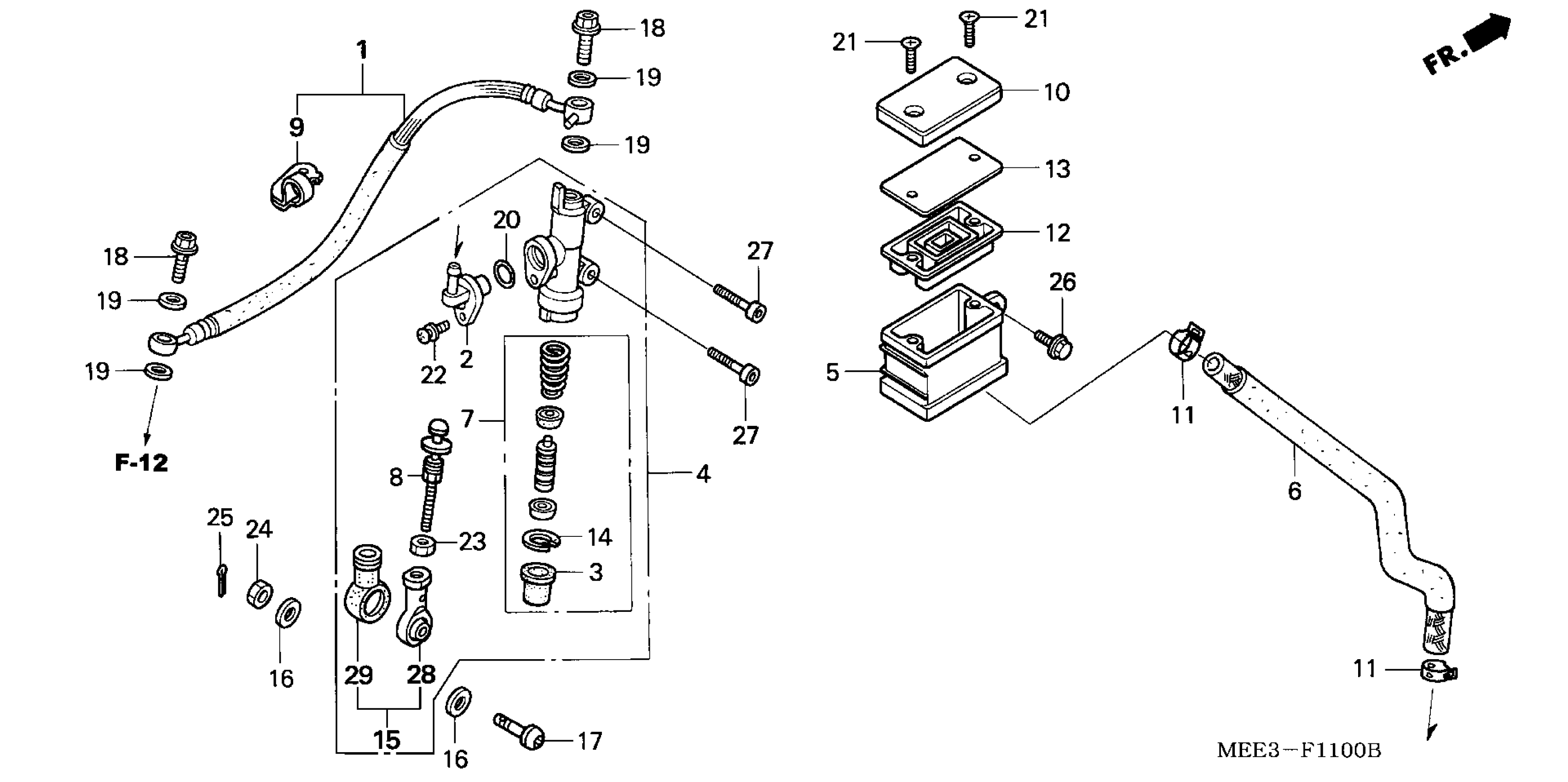

Honda CBR600RRA (06) MOTORCYCLE, JPN, VIN# JH2PC370-6M300001 TO JH2PC370-6M399999 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-MEE-D02

Unavailable

2

CONNECTOR

43503-MEE-006

$6.56

3

BOOT

43504-MB2-006

$9.01

4

MASTER CYLINDER SUB-ASSY., RR. This part replaces 43510-MEE-D01.

43510-MEE-D02

Unavailable

4

MASTER CYLINDER SUB-ASSY., RR.

43510-MEE-D02

Unavailable

5

CUP, OIL

43511-KV3-831

$21.29

6

HOSE, RR. MASTER CYLINDER

43512-MEE-D01

Unavailable

7

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MG9-305

$60.74

8

ROD, PUSH

43530-MCZ-006

$22.33

9

CLAMP, BRAKE HOSE BUSH

45155-MEE-000

$5.80

10

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

11

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

12

DIAPHRAGM

45520-MG7-006

$9.52

13

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

14

CIRCLIP

46182-500-013

$4.46

16

WASHER, SPECIAL (8MM)

90443-GC8-000

$2.42

17

BOLT, SOCKET (8X30)

90125-MCJ-750

$6.07

18

BOLT, OIL (10X22)

90145-MS9-612

$6.82

19

WASHER, OIL BOLT

90545-300-000

$3.72

20

O-RING (14.8X2.4)

91212-422-006

Unavailable

21

SCREW, FLAT (4X40)

93600-04040-1G

$0.43

22

SCREW-WASHER (4X12)

93893-04012-07

$1.22

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

23

NUT, HEX. (8MM)

94002-08000-0S

$1.19

24

NUT, HEX. (8MM)

94002-08000-0S

$1.19

25

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.94

25

PIN, COTTER (1.6X25)

94201-16250

$0.94

26

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

27

BOLT, SOCKET (6X20)

90135-MEL-000

$1.48

28

TIE ROD

46505-MCJ-751

Unavailable

29

COVER, DUST

46506-MCJ-750

Unavailable
