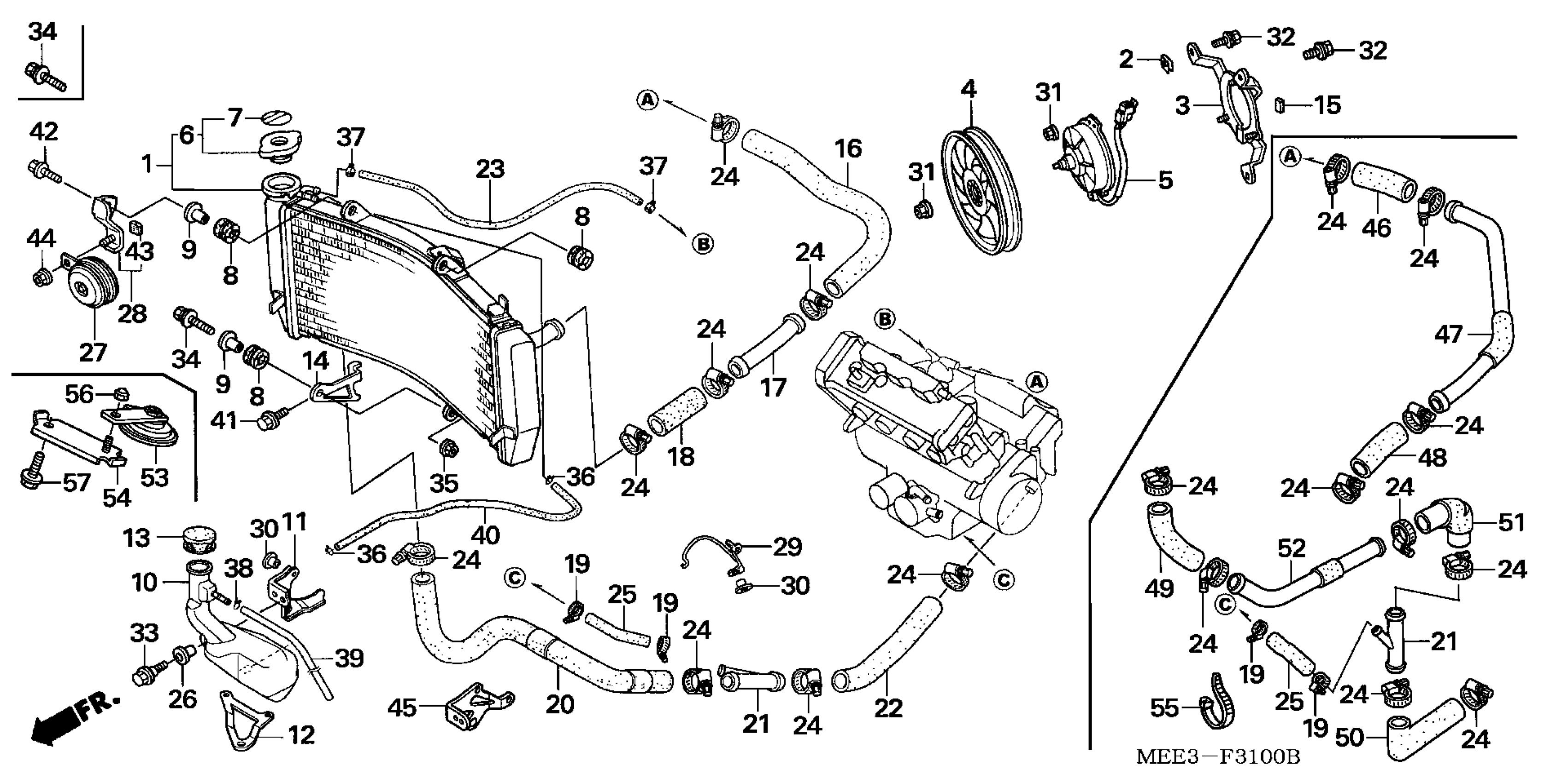

Honda CBR600RRA (06) MOTORCYCLE, JPN, VIN# JH2PC370-6M300001 TO JH2PC370-6M399999 RADIATOR Diagram

#

Description
Price

1

RADIATOR

19010-MEE-D01

$690.80

2

NUT, SETTING

19014-KEA-003

$3.10

3

SHROUD

19015-MEE-D01

Unavailable

4

FAN, COOLING

19020-MEE-003

Unavailable

5

MOTOR ASSY., FAN

19030-MEE-D01

Unavailable

6

CAP, RADIATOR

19037-GEE-710

$30.28

7

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

8

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

9

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

10

TANK, RADIATOR RESERVE

19101-MEE-000

$33.52

12

STAY, RESERVE TANK (LOWER)

19103-MEE-D00

Unavailable

13

CAP, RESERVE TANK

19104-MB0-700

$12.16

14

STAY, RADIATOR (LOWER)

19105-MEE-D00

Unavailable

15

CUSHION

19105-MR8-300

$2.52

19

CLAMP A, WATER HOSE

19505-KS6-700

$11.06

21

JOINT, HOSE (THREE-WAY)

19507-MEE-000

$11.76

23

TUBE, WATER

19511-MEE-000

Unavailable

24

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

25

HOSE D, WATER

19528-MEE-000

$9.82

26

COLLAR A, TAILLIGHT

33712-GC2-000

$3.04

29

STAY A, L. COWL (LOWER)

64514-MEE-000

$10.12

30

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

31

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

32

BOLT-WASHER (6X14)

93401-06014-07

$1.62

33

BOLT-WASHER (6X16)

93401-06016-00

$1.55

34

BOLT-WASHER (6X28)

93404-06028-00

$1.49

35

NUT, FLANGE (6MM)

94050-06000

$1.49

36

CLIP, TUBE (B10)

95002-02100

$1.90

37

CLAMP, TUBE (D12.5)

95002-41250-08

$2.34

38

CLIP, TUBE (C9)

95002-50000

$1.49

39

BULK HOSE, VACUUM (5X3000) (5X580)

95005-50003-30M

$20.85

40

BULK HOSE, VACUUM (5.5X3000) (5.3X570)

95005-55003-20M

$34.09

41

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

45

STAY, RESERVE TANK (UPPER)

19102-MEE-D00

Unavailable

46

HOSE A, RADIATOR (UPPER)

19502-MEE-D00

Unavailable

47

PIPE, RADIATOR (UPPER)

19503-MEE-D00

$63.73

48

HOSE B, RADIATOR (UPPER)

19504-MEE-D00

$11.08

49

HOSE, R. RADIATOR (LOWER)

19506-MEE-D00

Unavailable

50

HOSE, C. RADIATOR (LOWER)

19508-MEE-D00

Unavailable

51

HOSE, B. RADIATOR (LOWER)

19509-MEE-D00

Unavailable

52

PIPE, RADIATOR (LOWER)

19512-MEE-D00

Unavailable

53

HORN (HIGH) This part replaces 38110-MR5-671.

38110-MR5-871

Unavailable

53

HORN (HIGH)

38110-MR5-871

Unavailable

54

BRACKET, HORN STAY

50155-MEE-D00

Unavailable

55

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

56

NUT, FLANGE (8MM)

94050-08000

$1.49

57

BOLT, FLANGE (8X16)

96300-08016-07

$1.49
