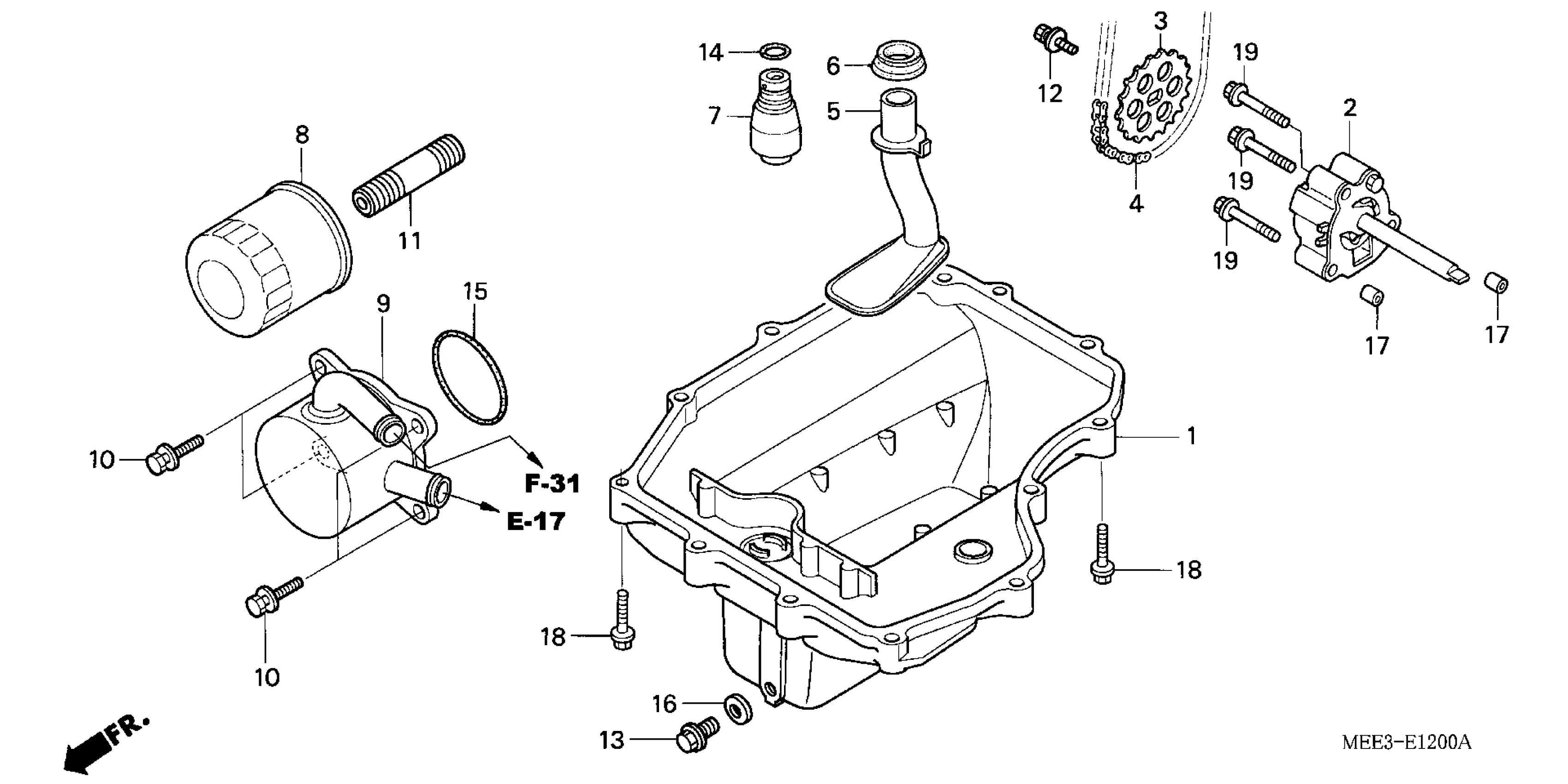

Honda CBR600RRA (06) MOTORCYCLE, JPN, VIN# JH2PC370-6M300001 TO JH2PC370-6M399999 OIL PAN + OIL PUMP Diagram

PAN, OIL

11210-MEE-000

$232.03

PUMP ASSY., OIL

15100-MEE-000

Unavailable

SPROCKET, OIL PUMP DRIVEN (25T)

15134-MAL-600

$25.15

CHAIN, OIL PUMP (66L)

15141-MEE-000

Unavailable

STRAINER, OIL

15150-MEE-D00

Unavailable

GASKET, OIL STRAINER

15154-MAT-000

$6.16

VALVE ASSY., RELIEF

15220-MEE-000

$38.74

FILTER, OIL (WAKO FILTER) This part replaces 15410-MCJ-003.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

COOLER, OIL

15700-MEE-003

Unavailable

BOLT-WASHER (6X16) (NSHF)

90016-MEE-000

Unavailable

BOSS, OIL FILTER

90019-MB0-000

$8.61

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2)

91313-MG7-004

$3.67

O-RING, OIL COOLER

91354-MCT-003

$7.93

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
