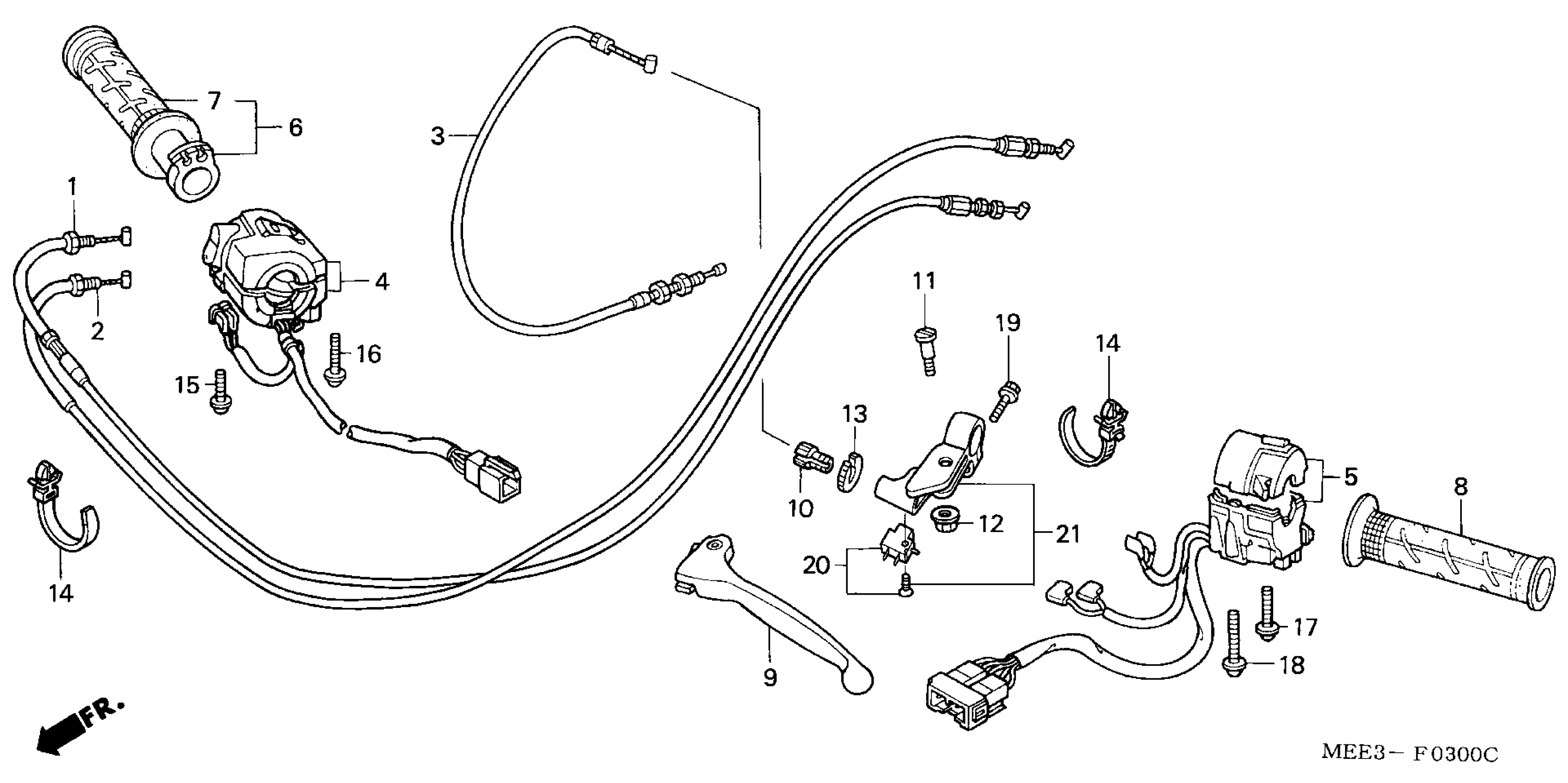

Honda CBR600RRA (06) MOTORCYCLE, JPN, VIN# JH2PC370-6M300001 TO JH2PC370-6M399999 HANDLE LEVER + SWITCH + CABLE Diagram

CABLE A, THROTTLE

17910-MEE-000

$31.62

CABLE B, THROTTLE

17920-MEE-D00

$31.62

CABLE, CLUTCH

22870-MEE-010

$33.14

SWITCH, STARTER STOP This part replaces 35130-MEE-641.

35130-MEE-642

$98.24

SWITCH ASSY., TURN SIGNAL

35200-MEE-A00

$111.86

GRIP ASSY., THROTTLE

53140-MCF-000

$34.59

GRIP, R. HANDLE

53165-MY9-890

Unavailable

GRIP, L. HANDLE

53166-MY9-890

$18.20

LEVER, L. HANDLE

53182-MEE-000

$22.12

LEVER, L. HANDLE This part replaces 53182-MEE-305.

53182-MEE-000

$22.12

BOLT, WIRE ADJUSTING

53192-MEE-000

$7.32

BOLT, LEVER PIVOT

90122-MEE-000

$4.92

NUT, U (6MM)

90301-MCJ-750

$2.26

NUT, FIXING

90321-MEE-000

$1.90

STRAP, CABLE (118MM) (BLACK)

90672-SA0-003

$6.24

SCREW-WASHER (5X35)

93892-05035-07

$1.49

SCREW-WASHER (5X45)

93892-05045-07

$1.49

SCREW-WASHER (5X20)

93892-05020-07

$1.49

SCREW-WASHER (5X25)

93892-05025-07

$1.49

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

SWITCH SET, CLUTCH This part replaces 35335-MCJ-750.

35335-MCJ-751

$14.26

SWITCH SET, CLUTCH

35335-MCJ-751

$14.26

BRACKET SET, CLUTCH LEVER This part replaces 53195-MEE-000.

53195-MEE-010

$30.23
