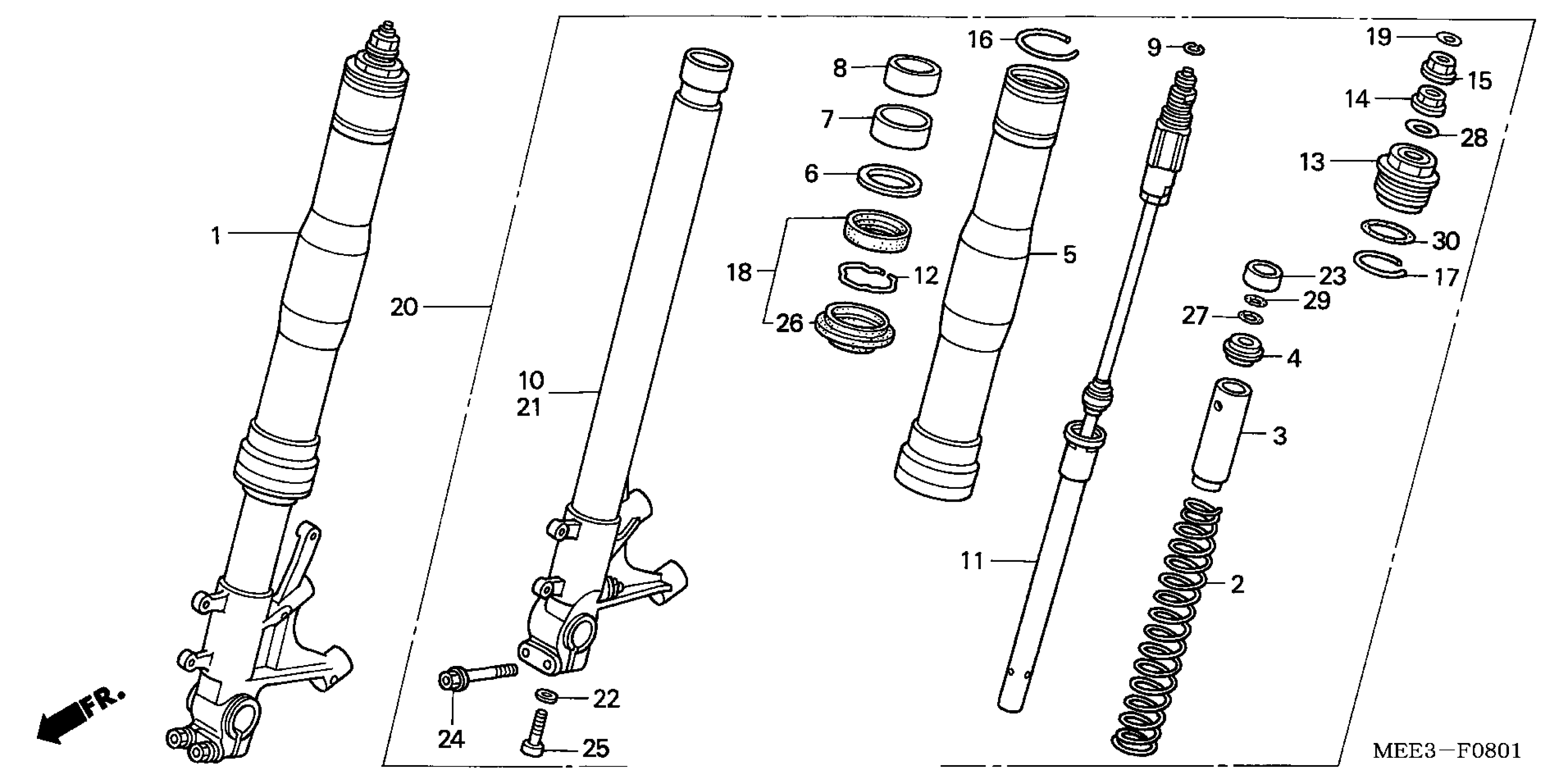

Honda CBR600RRA (06) MOTORCYCLE, JPN, VIN# JH2PC370-6M300001 TO JH2PC370-6M399999 FRONT FORK ('05-) Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-MEE-D01

Unavailable

2

SPRING, FR. FORK

51401-MEE-D01

Unavailable

3

COLLAR, SPRING

51403-MEE-D01

$7.18

4

STOPPER, SPRING SEAT

51406-MW4-003

$7.90

5

TUBE (OUTER)

51410-MEE-D01

Unavailable

6

RING, BACK-UP

51412-MB4-003

$9.65

7

BUSH, GUIDE (SHOWA)

51414-KCR-003

$14.02

8

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.27

9

RING B, STOPPER

51423-MCJ-751

$2.92

10

PIPE, R. SLIDE

51425-MEE-D01

Unavailable

11

DAMPER, FR.

51430-MEE-D01

$387.03

12

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

13

BOLT, FR. FORK

51450-MEE-D01

Unavailable

14

NUT, LOCK

51451-MCJ-751

$10.07

15

PLATE B, ADJUSTING

51453-MCJ-751

Unavailable

16

RING, STOPPER

51455-MEE-D01

$2.64

17

RING, STOPPER

51456-MEE-D01

Unavailable

18

SEAL SET, FR. FORK This part replaces 51490-MEE-D01.

51490-MFF-D01

$28.00

19

LABEL

51496-MCJ-751

$4.78

20

FORK ASSY., L. FR.

51500-MEE-D01

Unavailable

21

PIPE, L. SLIDE

51525-MEE-D01

Unavailable

22

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.41

23

PLATE, SPRING ADJUSTER

53702-MEE-D01

Unavailable

24

BOLT, FLANGE (8X40)

90108-MR7-000

$5.05

25

BOLT, SOCKET (10X35)

90126-MR7-003

$16.38

26

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.

91251-MKA-D81

$8.55

27

O-RING (10.8X2.4)

91255-MCJ-751

$2.38

28

O-RING (23.3X2.4) This part replaces 91256-MCJ-751.

91356-KFG-003

$2.52

29

O-RING (9.5X1.5)

91257-MCJ-751

$1.95

30

O-RING (39.7X2.4)

91258-MEE-D01

$2.11
