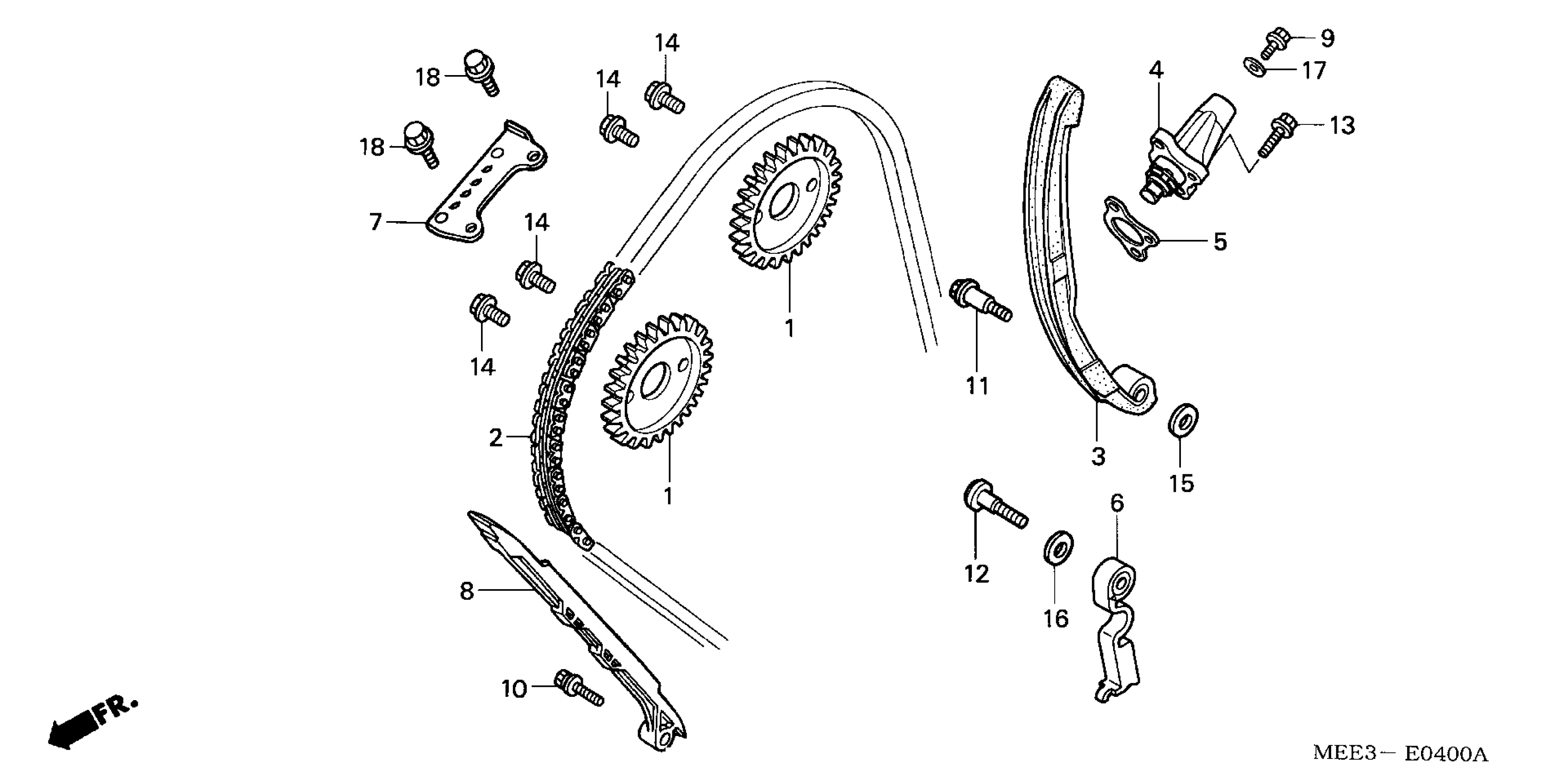

Honda CBR600RRA (06) MOTORCYCLE, JPN, VIN# JH2PC370-6M300001 TO JH2PC370-6M399999 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (34T)

14321-MEE-000

$48.44

CHAIN, CAM (116L) (BORG WARNER)

14401-MEE-003

$69.79

TENSIONER A, CAM CHAIN

14510-MEE-000

$66.09

LIFTER ASSY., TENSIONER This part replaces 14520-MEE-003.

14520-MEE-013

$90.17

LIFTER ASSY., TENSIONER

14520-MEE-013

$90.17

GASKET, TENSIONER HOLE

14523-MCW-003

$4.24

TENSIONER B, CAM CHAIN

14530-MEE-D00

$62.94

GUIDE B, CAM CHAIN

14546-MCJ-000

$41.78

GUIDE A, CAM CHAIN

14620-MEE-000

$39.95

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$2.95

BOLT-WASHER (6X12)

90021-MM5-000

$4.88

PIVOT, CAM CHAIN TENSIONER

90022-MBW-000

$5.69

SHAFT, CAM CHAIN TENSIONER B

90023-MEE-000

Unavailable

BOLT, FLANGE SOCKET (6X25)

90080-MG8-000

$3.71

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.82

WASHER (6MM)

90401-MBW-000

$3.66

WASHER, SEALING (10MM)

90403-MG7-000

$3.31

WASHER, SEALING (6MM)

90442-397-000

$2.60

BOLT, FLANGE (6X14)

95701-06014-00

$0.93
