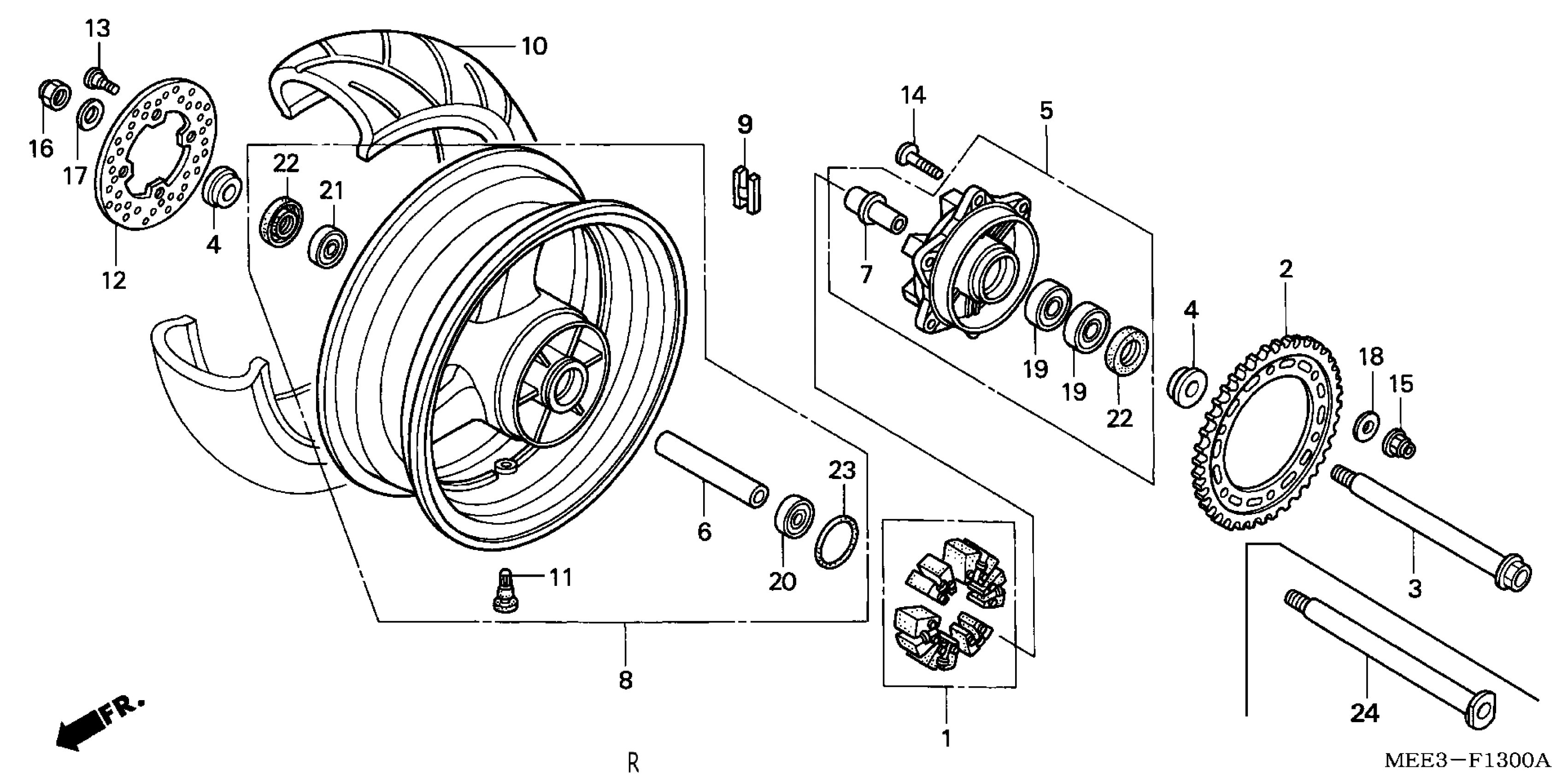

Honda CBR600RRA (05) MOTORCYCLE, JPN, VIN# JH2PC370-5M200001 TO JH2PC370-5M299999 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MCF-000

$67.46

2

SPROCKET, FINAL DRIVEN (43T)

41201-MEE-A00

Unavailable

4

COLLAR, RR. WHEEL SIDE

42311-MCJ-750

$15.25

5

FLANGE SUB-ASSY., RR. DRIVEN

42615-MEL-000

$209.42

6

COLLAR, RR. AXLE DISTANCE

42620-MEE-000

Unavailable

7

COLLAR B, RR. WHEEL DISTANCE

42625-MEL-000

$28.39

8

WHEEL SUB-ASSY., RR.

42650-MEE-D00

Unavailable

9

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.01

9

WEIGHT, BALANCE (20G)

42705-MER-D00

$15.86

9

WEIGHT, BALANCE (30G)

42706-MER-D00

$15.62

10

TIRE, RR. (180/55ZR17 M/C73W) (MICHELIN) (NOT AVAILABLE)

42711-MEE-007

Unavailable

10

TIRE, RR. (180/55ZR17 M/C73W) (DUNLOP) This part replaces 42711-MEE-D02.

42711-MEE-D04

$429.39

10

TIRE, RR. (180/55ZR17 M/C73W) (DUNLOP)

42711-MEE-D04

$429.39

11

VALVE, RIM (DUNLOP)

42753-ML7-004

$11.44

11

VALVE, RIM (MICHELIN)

42753-MT4-005

$5.81

12

DISK, RR. BRAKE

43251-MEE-000

$206.43

13

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.78

14

BOLT (10X30)

90121-MCF-D30

$2.67

15

NUT, U (10MM)

90304-KAE-871

$4.03

16

NUT, U (22MM)

90306-MCF-D00

$9.16

17

WASHER (23X37X2.5)

90401-MCJ-000

$4.70

18

WASHER (10MM)

90502-MCF-000

$2.55

19

BEARING, RADIAL BALL (28X52X12)

91051-HA7-671

$30.53

20

BEARING, RADIAL BALL (6005)

91052-MCF-003

$13.38

21

BEARING, RADIAL BALL (6205X2)

91053-MAZ-003

$15.40

22

DUST SEAL (35X52X7.5)

91254-MEE-003

$6.44

23

O-RING (51X2)

91352-MCF-003

$3.52

24

AXLE, RR. WHEEL

42301-MEE-D00

$57.94
