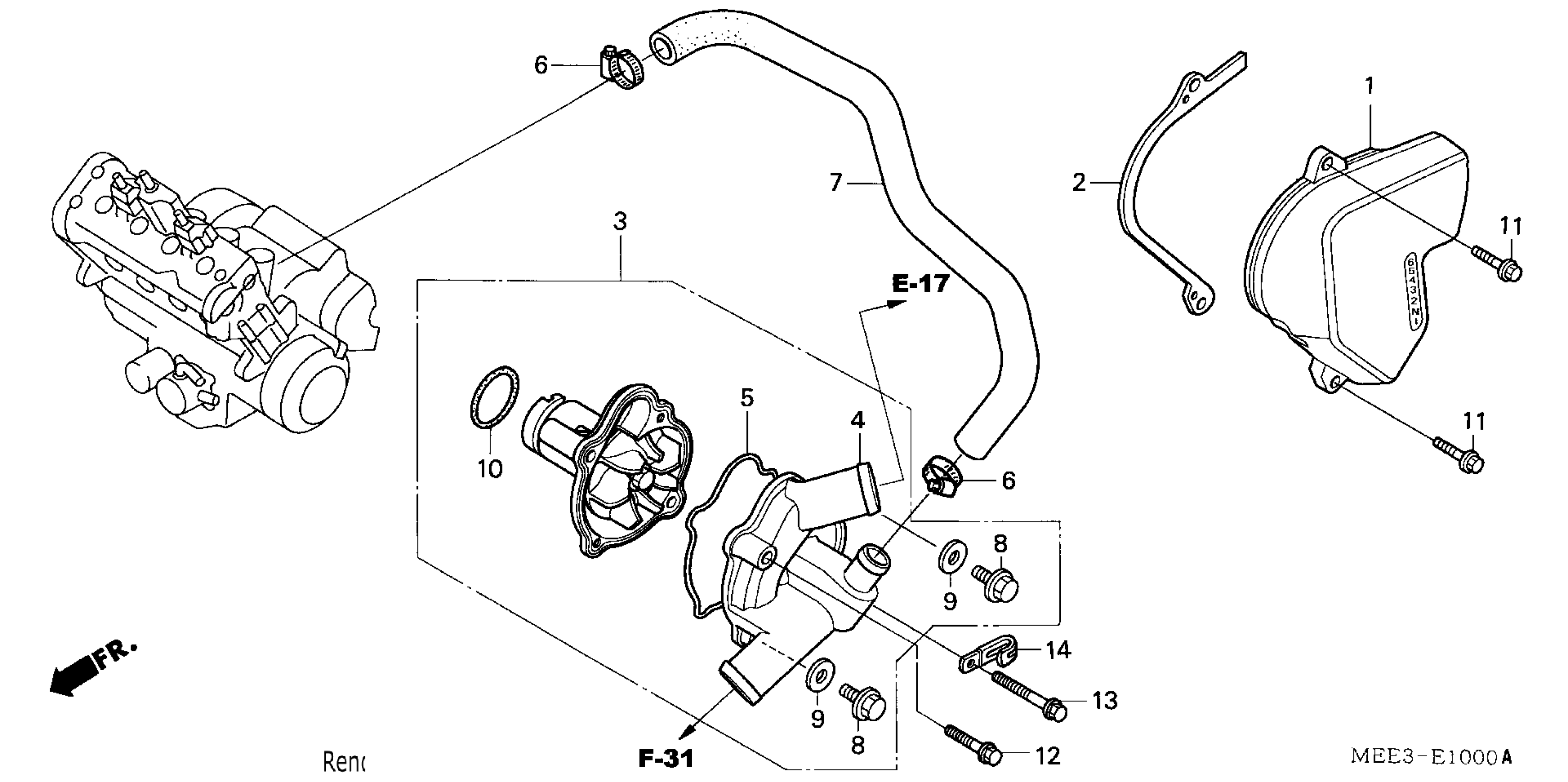

Honda CBR600RRA (04) MOTORCYCLE, JPN, VIN# JH2PC370-4M100001 TO JH2PC370-4M199999 WATER PUMP Diagram

COVER, L. RR.

11350-MEE-670

Unavailable

PLATE, DRIVE CHAIN GUIDE

11355-MEE-000

Unavailable

WATER PUMP ASSY. This part replaces 19200-MEE-315.

19200-MEE-325

$205.30

WATER PUMP ASSY.

19200-MEE-325

$205.30

COVER, WATER PUMP

19220-MEE-010

Unavailable

GASKET, WATER PUMP COVER

19226-MEE-000

$6.06

CLAMP, WATER HOSE (25MM)

19504-KY1-003

Unavailable

HOSE B, WATER

19526-MEE-000

Unavailable

BOLT, FLANGE (6X25)

90121-MV9-670

$2.71

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.67

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable

BOLT, FLANGE (6X55)

96001-06055-00

$1.48

BOLT, FLANGE (6X70)

96001-06070-00

$1.78

CLIP (2X60)

91410-679-000

$9.04
