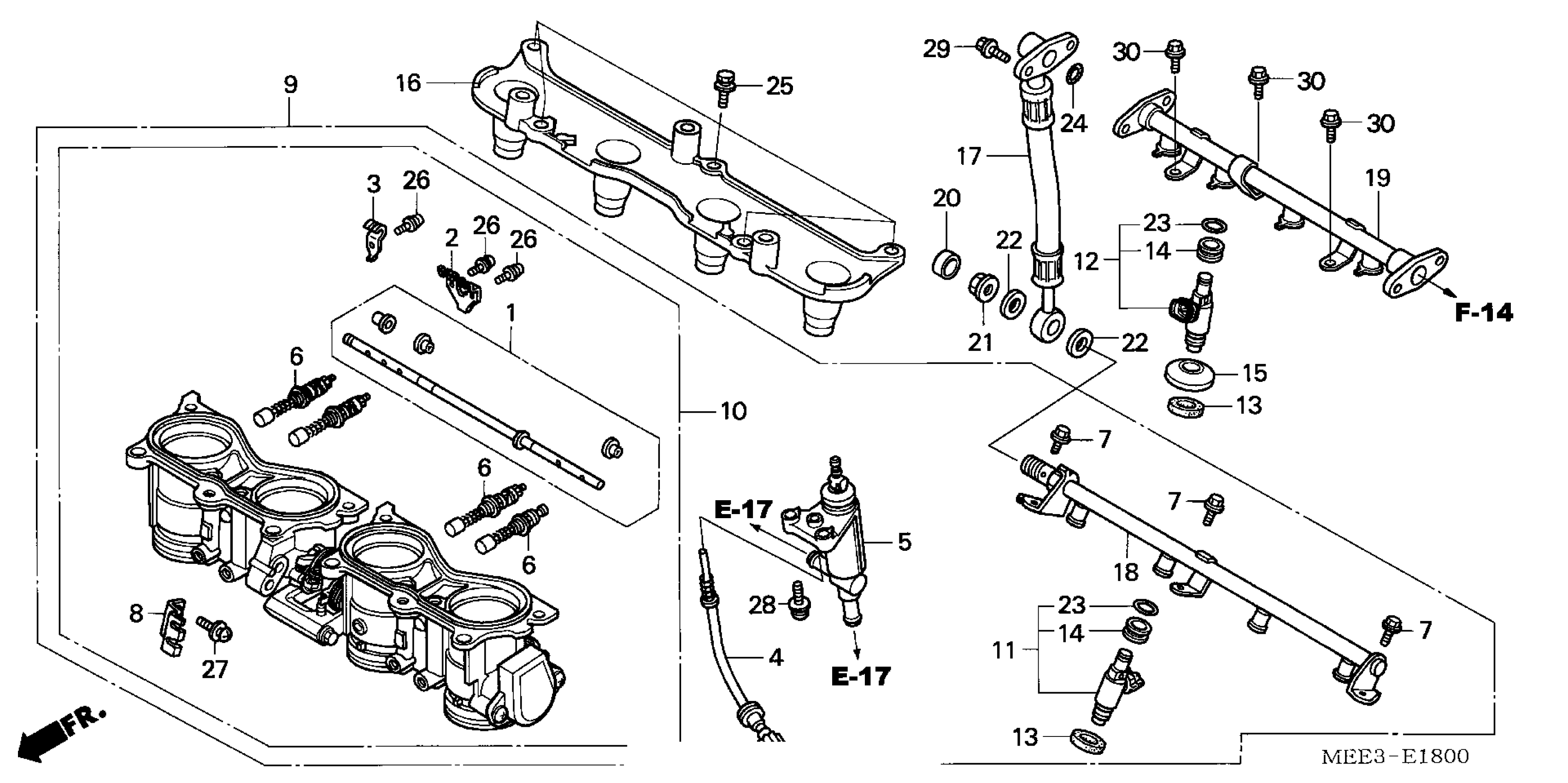

Honda CBR600RRA (04) MOTORCYCLE, JPN, VIN# JH2PC370-4M100001 TO JH2PC370-4M199999 THROTTLE BODY ('03-'04) Diagram

#

Description
Price

1

SHAFT SET, STARTER

16017-MEE-003

$34.10

2

LEVER, STARTER

16018-MEE-003

$6.46

3

LEVER SET B, STARTER

16019-MCJ-003

$3.85

4

SCREW SET, STOP

16029-MEE-003

$33.38

5

WAX ASSY.

16044-MCJ-751

Unavailable

6

VALVE SET, STARTER

16046-MEE-003

Unavailable

7

BOLT, FLANGE (6X12)

16080-MCJ-003

$1.54

8

STAY, WIRE (FRAME NO.) (NOT AVAILABLE) | Use up to Engine SN 4M106885

16169-MEE-003

Unavailable

8

STAY, WIRE (FRAME NO.) | Use from Engine SN 4M106886

16169-MEE-013

$14.67

9

BODY ASSY., THROTTLE (GQ63C A) (FRAME NO.)

16400-MEE-672

Unavailable

10

BODY ASSY., THROTTLE

16401-MEE-671

Unavailable

11

INJECTOR ASSY., FUEL

16450-MEE-003

Unavailable

12

INJECTOR ASSY., FUEL

16460-MEE-003

Unavailable

13

SEAL RING, INJECTOR

16472-MCW-000

$2.39

14

CUSHION RING, INJECTOR

16473-P7A-004

$6.90

15

GROMMET, INJECTOR

16474-MEE-000

Unavailable

16

BODY, INJECTOR

16510-MEE-000

$123.85

17

HOSE, FUEL FEED

16527-MEE-004

Unavailable

18

PIPE, FUEL

16610-MEE-003

$116.20

19

PIPE, FUEL FEED

16620-MEE-000

Unavailable

20

COVER, SEALING NUT

32109-MEE-000

Unavailable

21

NUT A, SEALING (12MM)

90201-PD1-000

$4.87

22

WASHER, SEALING (12MM)

90428-PD6-003

$5.20

23

O-RING

91301-P7A-004

$3.35

24

O-RING (7.8X1.9)

91302-MCA-000

$2.30

25

BOLT-WASHER (5X16)

93403-05016-08

$1.61

26

SCREW-WASHER (3X8)

93892-03008-10

$1.49

27

SCREW-WASHER (5X12)

93892-05012-00

$1.49

27

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.49

28

SCREW-WASHER (6X20)

93892-06020-00

$1.49

28

SCREW-WASHER (6X20) This part replaces 93892-06020-10.

93892-06020-00

$1.49

29

BOLT, FLANGE (6X8)

96001-06008-00

$1.49

30

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
