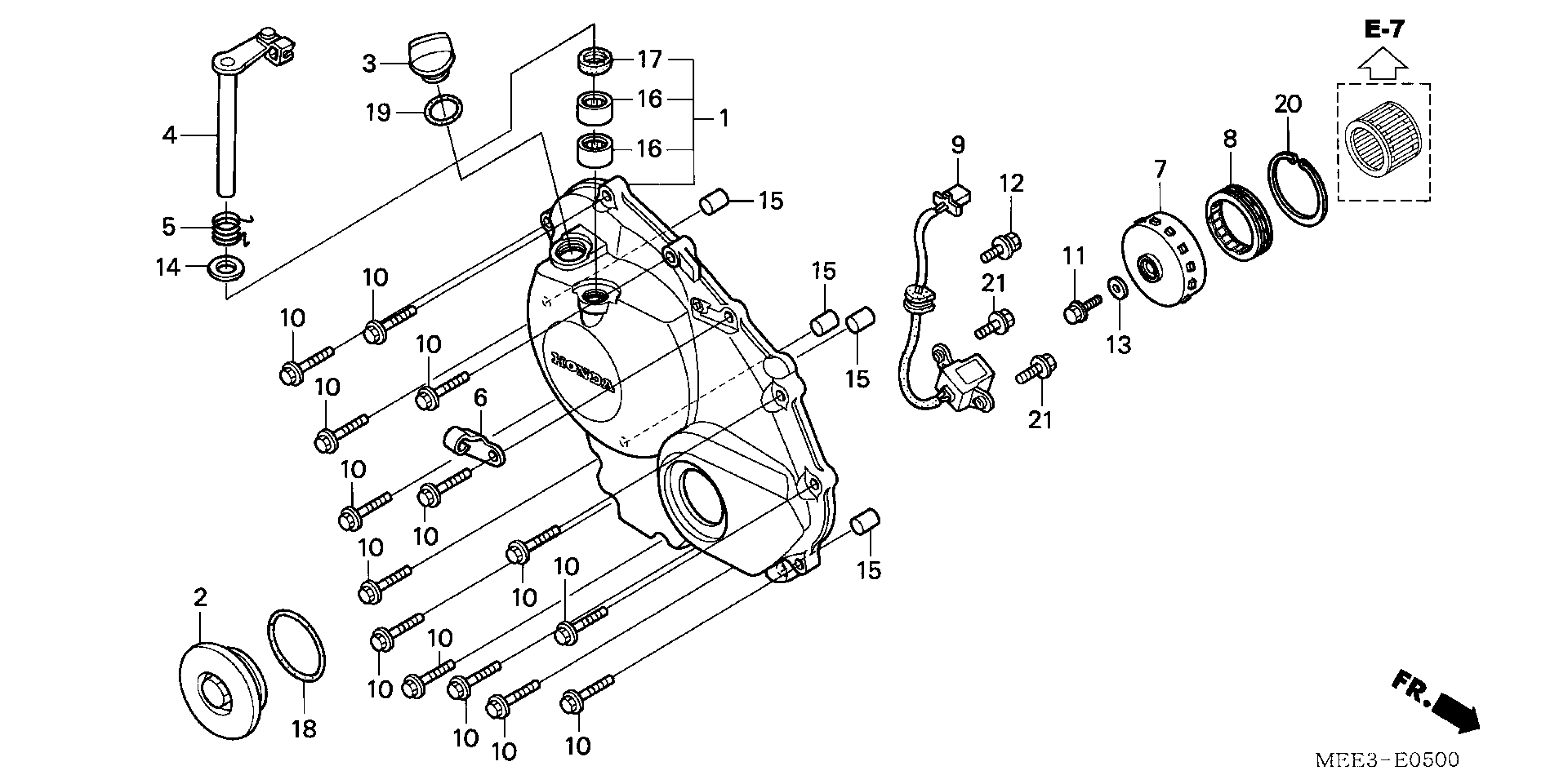

Honda CBR600RRA (04) MOTORCYCLE, JPN, VIN# JH2PC370-4M100001 TO JH2PC370-4M199999 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-MEE-000

$298.56

CAP (45MM)

11332-MBZ-D00

$19.09

CAP, OIL FILLER

15611-KA4-710

$14.40

LEVER, CLUTCH

22810-MEE-000

Unavailable

SPRING, CLUTCH LEVER

22815-MEE-000

$4.12

RECEIVER, CLUTCH CABLE

22821-MEE-000

Unavailable

CLUTCH OUTER, STARTING

28115-MEE-000

Unavailable

CLUTCH, ONE-WAY

28125-MEE-000

$68.87

GENERATOR ASSY., PULSE

30300-MEE-003

Unavailable

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

WASHER (10.5X27)

90405-MCA-780

$4.16

WASHER, BRAKE ARM

90525-GC4-700

$2.34

PIN, DOWEL (10X16)

90701-MV9-670

$4.30

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

CIRCLIP (INNER) (63MM)

94520-63000

$3.46

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
