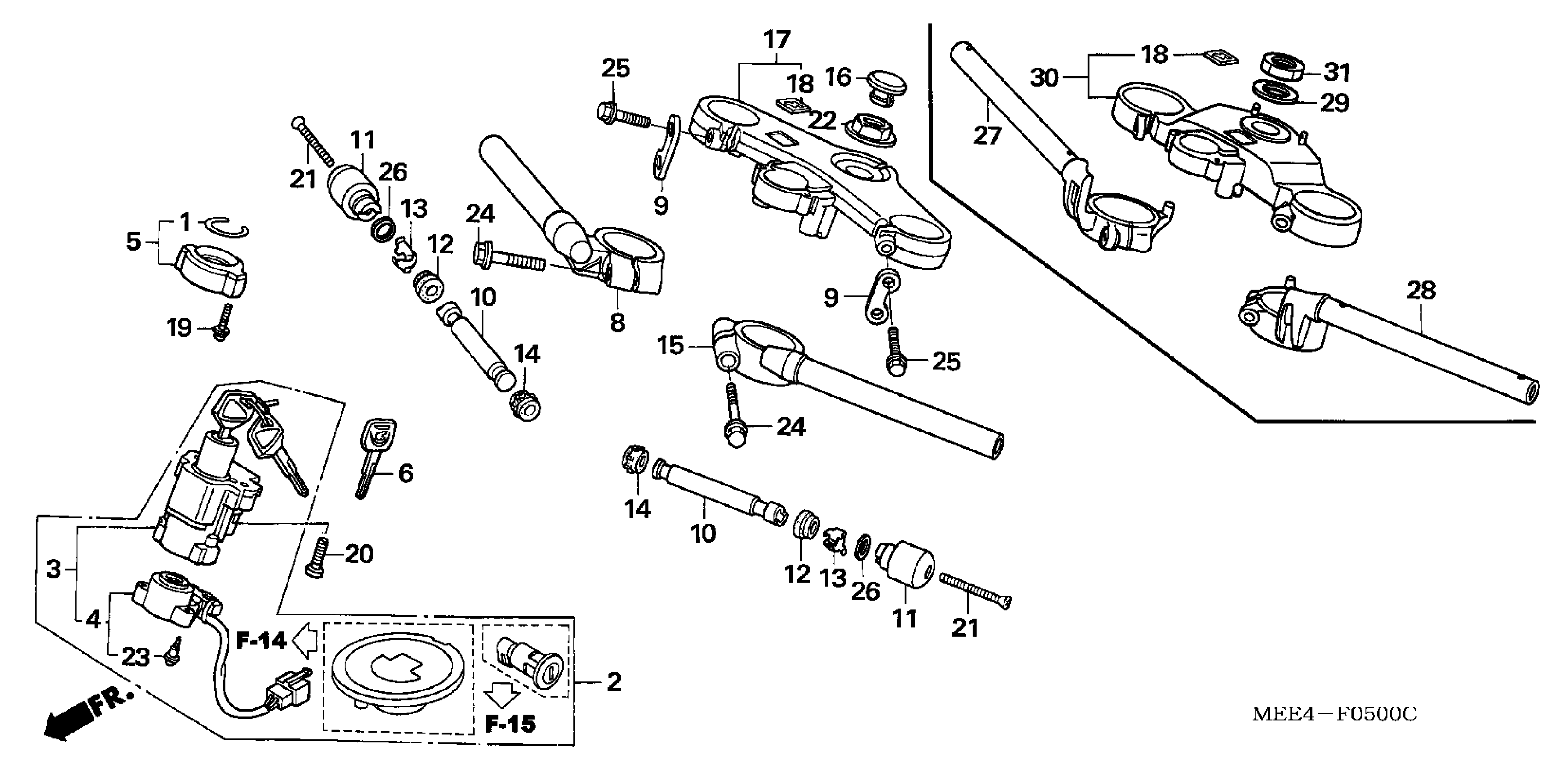

Honda CBR600RRA (04) MOTORCYCLE, JPN, VIN# JH2PC370-4M100001 TO JH2PC370-4M199999 HANDLEBAR + TOP BRIDGE Diagram

SEAL, IGNITION SWITCH This part replaces 30433-MBW-600.

30433-MBW-602

$2.84

SEAL, IGNITION SWITCH This part replaces 30433-MBW-601.

30433-MBW-602

$2.84

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

KEY SET This part replaces 35010-MEE-671.

35010-MEE-673

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35100-MEE-671

Unavailable

BASE, CONTACT

35101-MEE-671

Unavailable

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

KEY, BLANK (TYPE1) | (Optional).

35121-MAS-G01

$12.74

HANDLEBAR, R.

53100-MEE-020

Unavailable

PLATE, HANDLE SETTING

53103-MW0-000

Unavailable

WEIGHT B, HANDLEBAR

53104-MEE-000

$21.11

WEIGHT, HANDLEBAR

53105-MEE-940

$17.82

RUBBER B, HANDLE WEIGHT

53107-MJ0-000

$3.77

RING, HANDLE WEIGHT SNAP

53108-MAT-000

$6.71

RUBBER B, HANDLE WEIGHT

53109-MM5-000

$3.72

HANDLEBAR, L.

53150-MEE-020

Unavailable

CAP, STEERING STEM NUT

53232-MJ4-670

$13.43

BRIDGE, FORK TOP

53300-MEE-000

Unavailable

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

SCREW-WASHER (5X22)

90020-MBW-610

$2.56

BOLT, SOCKET (8MM)

90100-MN8-910

$5.05

SCREW, OVAL (6X55)

90191-MK4-000

$5.05

NUT, STEERING STEM

90304-MJ4-670

$15.40

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

BOLT, FLANGE (8X40)

96300-08040-07

$2.02

BOLT, FLANGE (8X45)

96400-08045-07

$1.87
