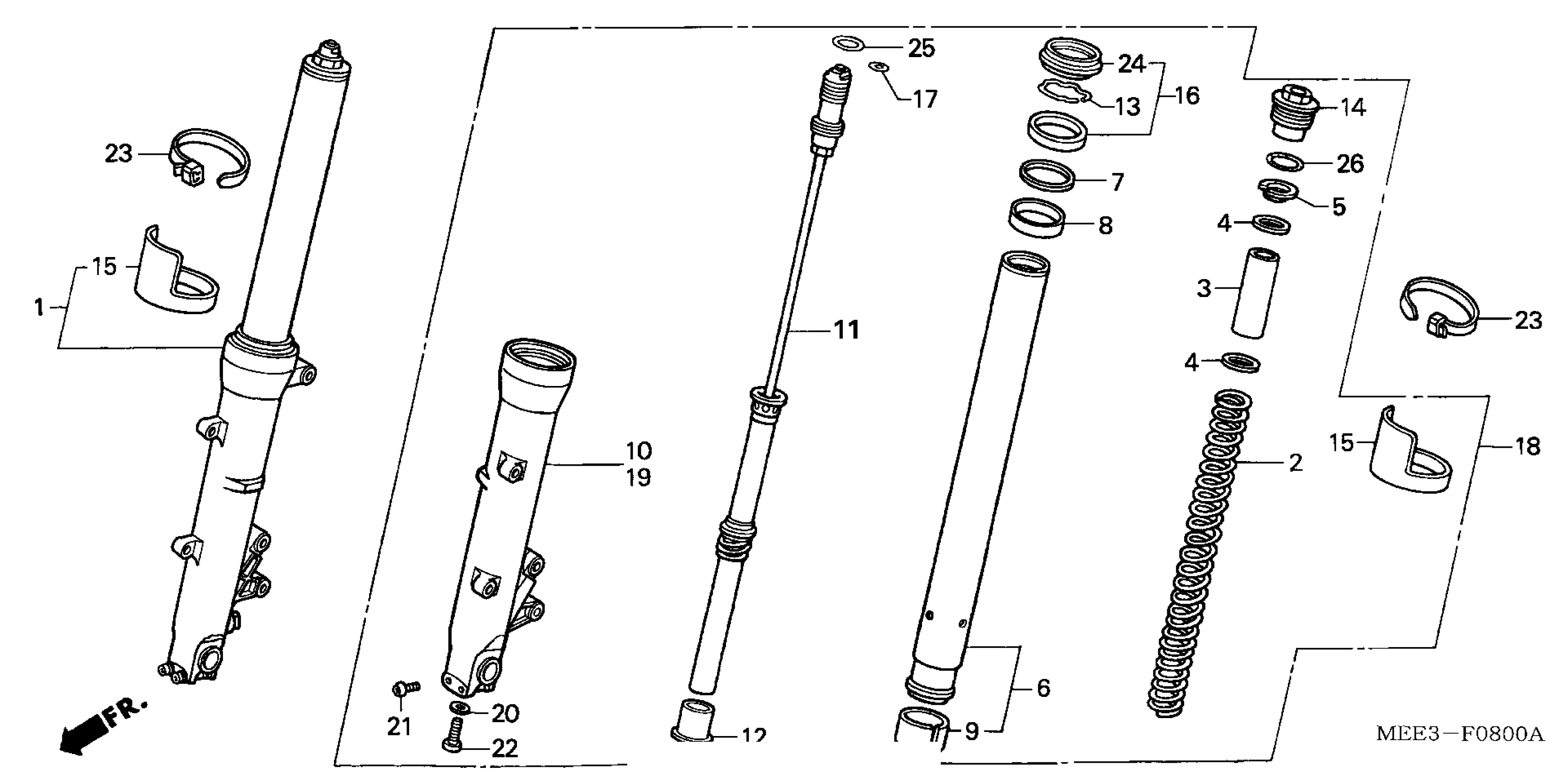

Honda CBR600RRA (04) MOTORCYCLE, JPN, VIN# JH2PC370-4M100001 TO JH2PC370-4M199999 FRONT FORK ('03-'04) Diagram

FORK ASSY., R. FR.

51400-MEE-003

Unavailable

SPRING, FR. FORK

51401-MEE-003

Unavailable

COLLAR, SPRING

51403-MAE-003

Unavailable

PLATE, SPRING JOINT (SHOWA)

51403-MW0-003

Unavailable

SEAT, SPRING

51404-MR7-003

$10.28

PIPE, FR. FORK

51410-MEE-003

Unavailable

RING, BACK-UP

51412-KZ3-003

$8.46

BUSH, GUIDE

51414-MCH-003

$20.62

BUSH, SLIDER

51415-MCS-G01

$5.64

CASE, R. (LOWER)

51420-MEE-003

$252.14

DAMPER, FR.

51430-MEE-003

Unavailable

PIECE, OIL LOCK

51432-MEE-003

Unavailable

RING, OIL SEAL STOPPER

51447-KZ3-003

$4.76

BOLT, FR. FORK

51454-MEE-003

Unavailable

PROTECTOR, FORK PIPE

51460-MCS-G01

$9.97

SEAL SET, FR. FORK

51490-MCA-003

$32.41

LABEL

51496-MR7-003

$2.97

FORK ASSY., L. FR.

51500-MEE-003

Unavailable

CASE, L. (LOWER)

51520-MEE-003

$252.14

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.19

BOLT, SOCKET (8X45)

90115-MEE-000

$4.25

BOLT, SOCKET (10X35)

90126-MR7-003

$14.71

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

DUST SEAL

91254-MCA-003

$7.43

O-RING (13.8X2.4) (NOK) This part replaces 91311-MR7-003.

91311-PH7-003

$2.22

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.22

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.67
