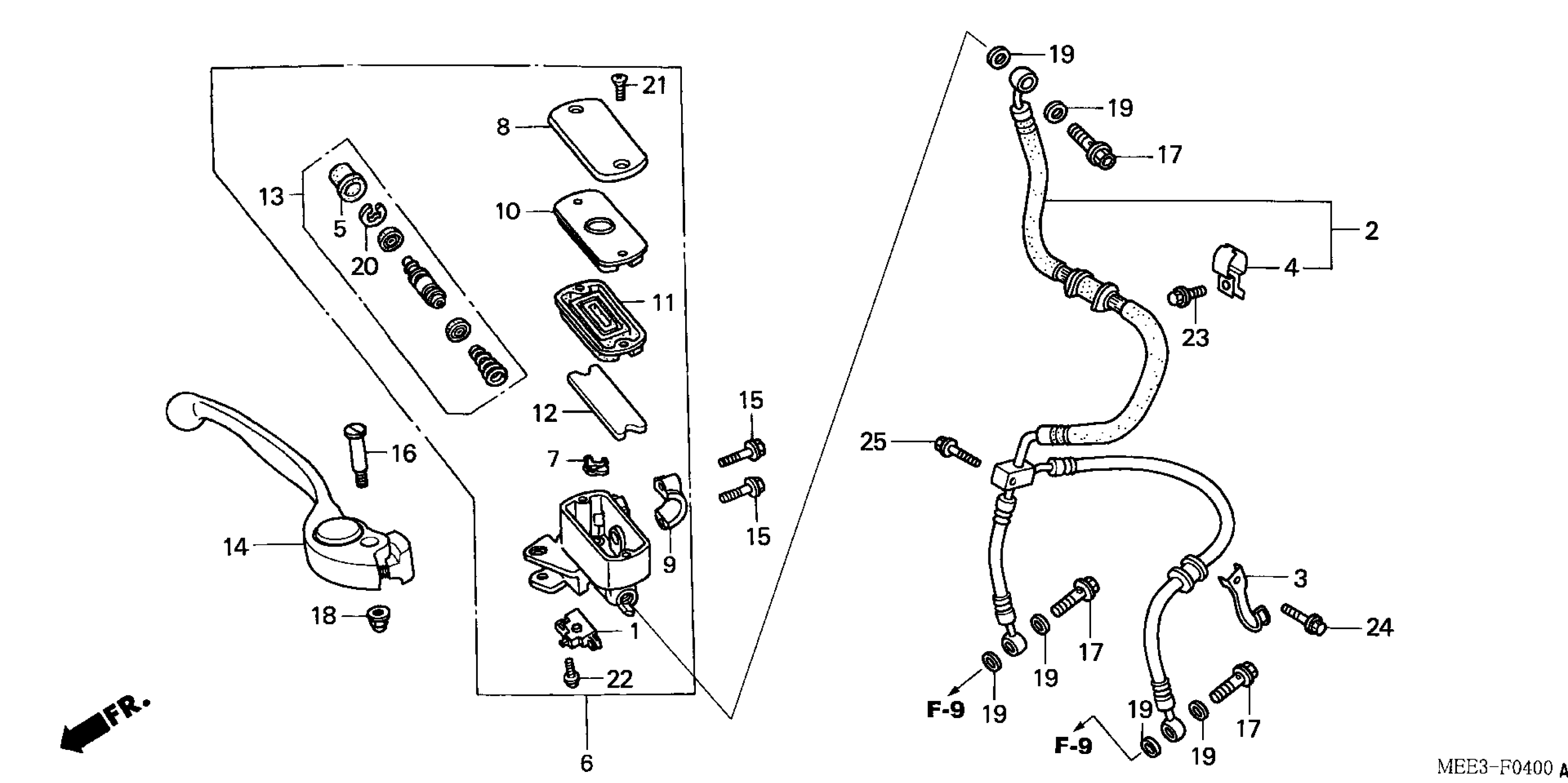

Honda CBR600RRA (04) MOTORCYCLE, JPN, VIN# JH2PC370-4M100001 TO JH2PC370-4M199999 FRONT BRAKE MASTER CYLINDER ('03-'04) Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

HOSE, FR. BRAKE

45125-MEE-013

Unavailable

CLAMP B, BRAKE HOSE

45156-MEE-010

Unavailable

CLAMP, BRAKE HOSE

45157-MEE-000

Unavailable

BOOT

45504-MCF-006

$11.87

MASTER CYLINDER SUB-ASSY., FR.

45510-MEE-006

$295.02

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

DIAPHRAGM

45520-MM5-006

$15.12

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

MASTER CYLINDER SET

45530-MCJ-751

$56.75

LEVER ASSY., R. HANDLE

53170-MEE-006

$52.79

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.49

BOLT, HANDLE LEVER

90114-MCF-006

$5.81

BOLT, OIL (10X22)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MCF-006

$2.26

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

BOLT, FLANGE (6X40)

96001-06040-07

$1.49
