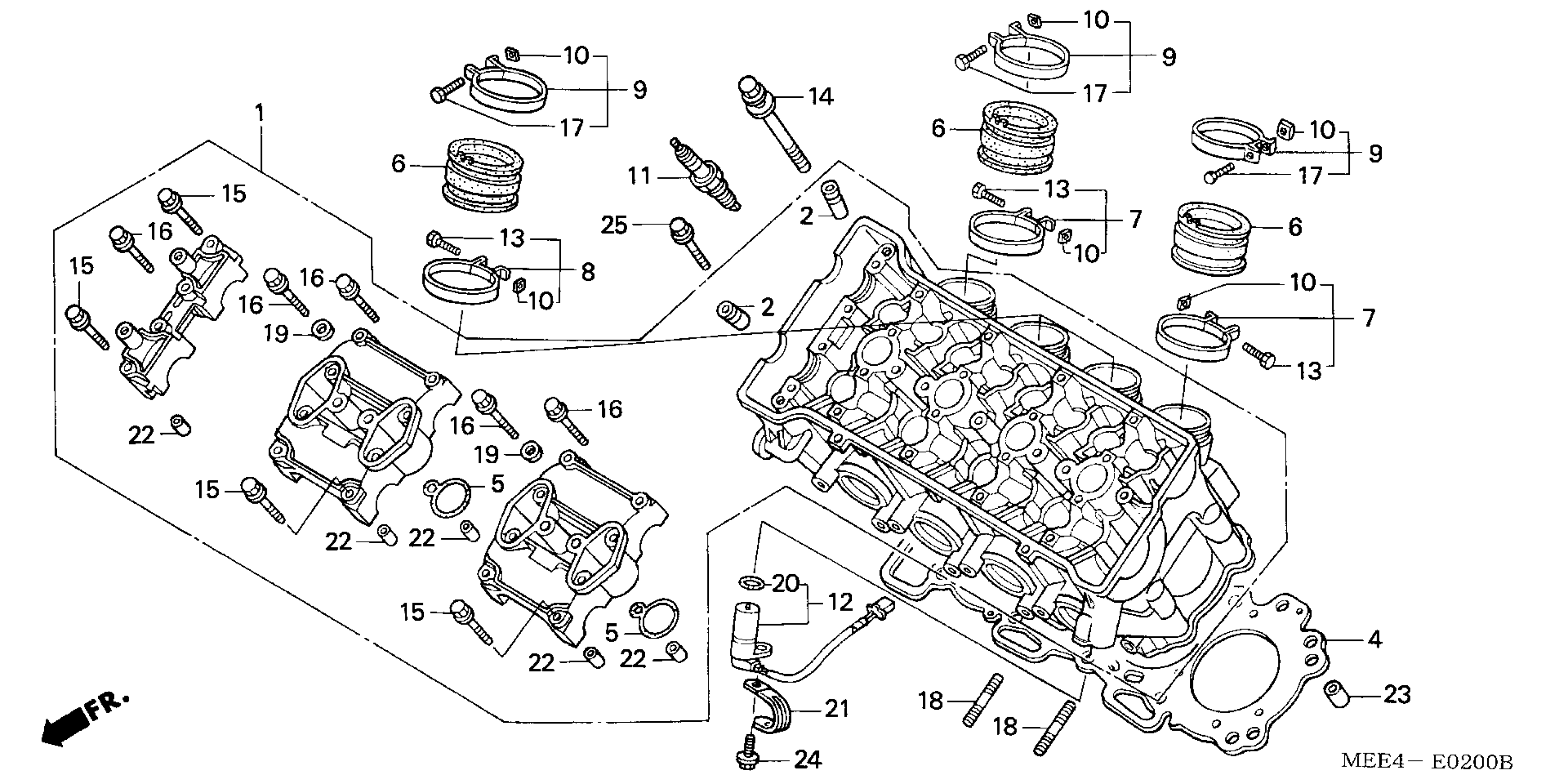

Honda CBR600RRA (04) MOTORCYCLE, JPN, VIN# JH2PC370-4M100001 TO JH2PC370-4M199999 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12010-MEE-000

$1,096.22

2

GUIDE, VALVE (OVER SIZE)

12204-MBW-305

$14.54

4

GASKET, CYLINDER HEAD This part replaces 12251-MEE-003.

12251-MEE-013

$71.75

4

GASKET, CYLINDER HEAD

12251-MEE-013

$71.75

5

GASKET, PLUG HOLE

12395-MBW-003

$4.33

6

INSULATOR, THROTTLE BODY

16211-MEE-000

$13.32

7

BAND A, INSULATOR

16217-MEE-000

$4.64

8

BAND B, INSULATOR

16218-MEE-000

Unavailable

9

BAND C, INSULATOR

16219-MEE-000

$4.64

10

NUT, SQUARE (5MM)

16222-MV4-300

$1.96

11

SPARK PLUG (IMR9C-9HE) (NGK)

31912-MEE-671

$15.29

12

PULSER ASSY., CAM This part replaces 36140-MEE-000.

36140-MEE-003

Unavailable

12

PULSER ASSY., CAM

36140-MEE-003

Unavailable

13

BOLT, RECESSED (5X30)

90006-MEE-000

$1.72

14

BOLT-WASHER (9X90)

90007-MBW-000

$7.70

15

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.12

16

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.80

17

BOLT, RECESSED (5X28)

90023-MM5-000

$2.80

18

BOLT, STUD (8X24)

90035-MM5-000

$4.76

19

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

20

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.80

21

CLIP (2X60)

91410-679-000

$9.04

22

PIN, DOWEL (8X20)

94301-08200

$2.04

23

PIN, DOWEL (10X16)

94301-10160

$2.24

24

BOLT, FLANGE (6X18)

95701-06018-07

$1.48

25

BOLT, FLANGE (6X45)

96001-06045-00

$1.78
