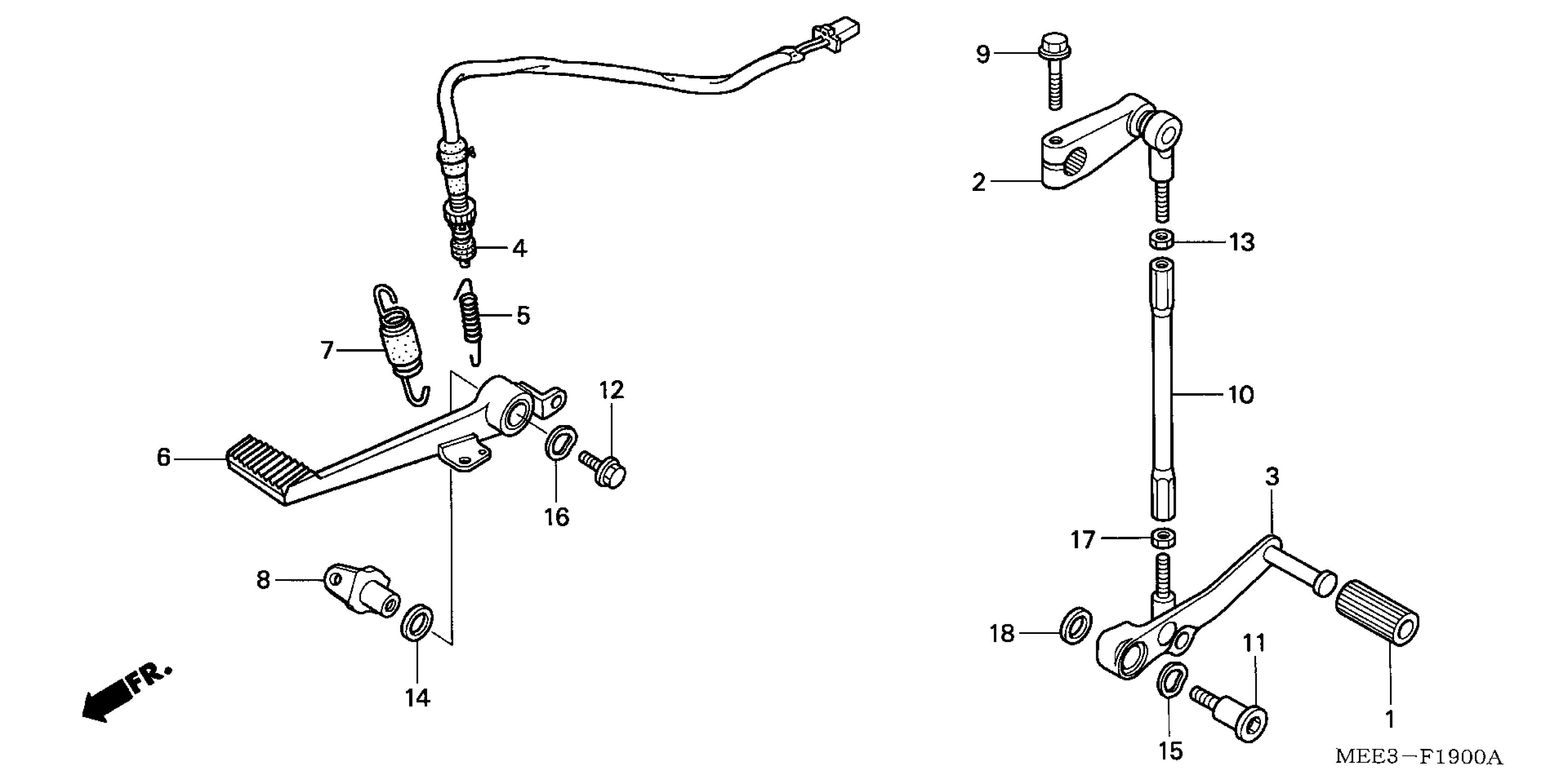

Honda CBR600RRA (04) MOTORCYCLE, JPN, VIN# JH2PC370-4M100001 TO JH2PC370-4M199999 BRAKE PEDAL + CHANGE PEDAL Diagram

RUBBER, GEARSHIFT PEDAL

24705-MR7-000

$3.76

ARM, GEARSHIFT

24710-MEE-000

$66.12

PEDAL, GEARSHIFT This part replaces 24720-MEE-000.

24720-MEE-D00

$93.33

SWITCH ASSY., RR. STOP

35350-MEE-000

Unavailable

SPRING, STOP SWITCH

35357-KE1-000

$6.16

PEDAL, RR. BRAKE

46500-MEE-000

$103.39

SPRING SET, BRAKE PEDAL

46513-MEE-000

$5.66

BRACKET, MAIN STEP

50612-MCJ-750

Unavailable

BOLT, FLANGE (6X20)

90010-ML0-720

$2.92

BAR, CHANGE

90065-MEE-000

$13.34

BOLT, CHANGE PIVOT

90113-MBB-000

$12.61

BOLT, FLANGE (10X40)

90121-MCJ-750

$2.90

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

WASHER, THRUST (23.2MM)

90403-MCJ-750

$3.08

WASHER, CHANGE PEDAL WAVE

90505-MBW-000

$4.03

WASHER, WAVE (20.1MM)

90505-MCJ-750

$2.57

NUT, HEX. (6MM)

94001-06020-0S

$1.49

WASHER, PLAIN (8MM)

94103-08700

$1.49
