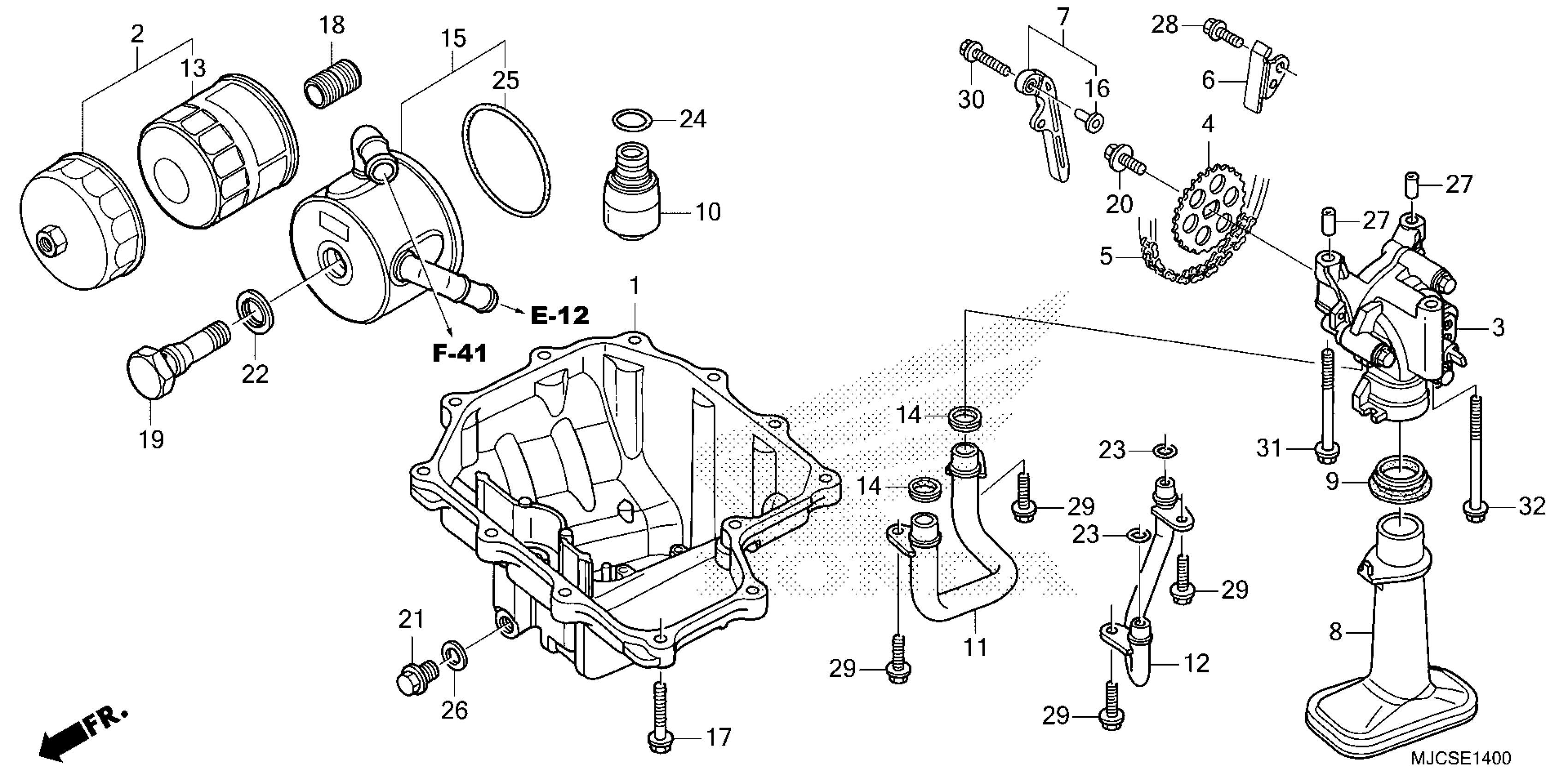

Honda CBR600RR7AC (26) MOTORCYCLE, JPN, VIN# JH2PC40H-TK300001 TO JH2PC40H-TK399999 OIL PAN@OIL PUMP Diagram

PAN, OIL

11210-MFJ-D01

$227.49

FILTER SET, OIL | (Optional).

15010-MKR-305

$20.30

PUMP ASSY., OIL

15100-MFJ-D00

$237.31

SPROCKET, OIL PUMP DRIVEN (25T)

15134-MAL-600

$25.15

CHAIN, OIL PUMP DRIVE (DID25H-72L)

15141-MFJ-D01

$21.56

GUIDE A, OIL PUMP CHAIN

15145-MFJ-D00

$10.10

GUIDE B, OIL PUMP CHAIN

15146-MFJ-D00

$8.56

STRAINER, OIL

15150-MFJ-D01

$34.00

GASKET, OIL STRAINER

15154-MAT-000

$6.16

VALVE ASSY., RELIEF

15220-MBW-000

$38.69

PIPE A, OIL

15310-MFJ-D01

$78.74

PIPE B, OIL

15320-MFJ-D00

$36.56

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

RING, SEAL

15433-MFJ-D01

$2.07

COOLER, OIL

15700-MFJ-D01

$299.97

COLLAR, FR. FENDER

61107-MCR-D00

$2.25

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$8.61

BOLT, OIL COOLER

90019-MGP-D60

$66.36

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

WASHER, SEALING (34.5MM)

90402-MFJ-D01

$7.22

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.22

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

O-RING, OIL COOLER

91354-MCT-003

$7.93

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$2.06

BOLT, FLANGE (6X60)

95701-06060-00

$1.49
