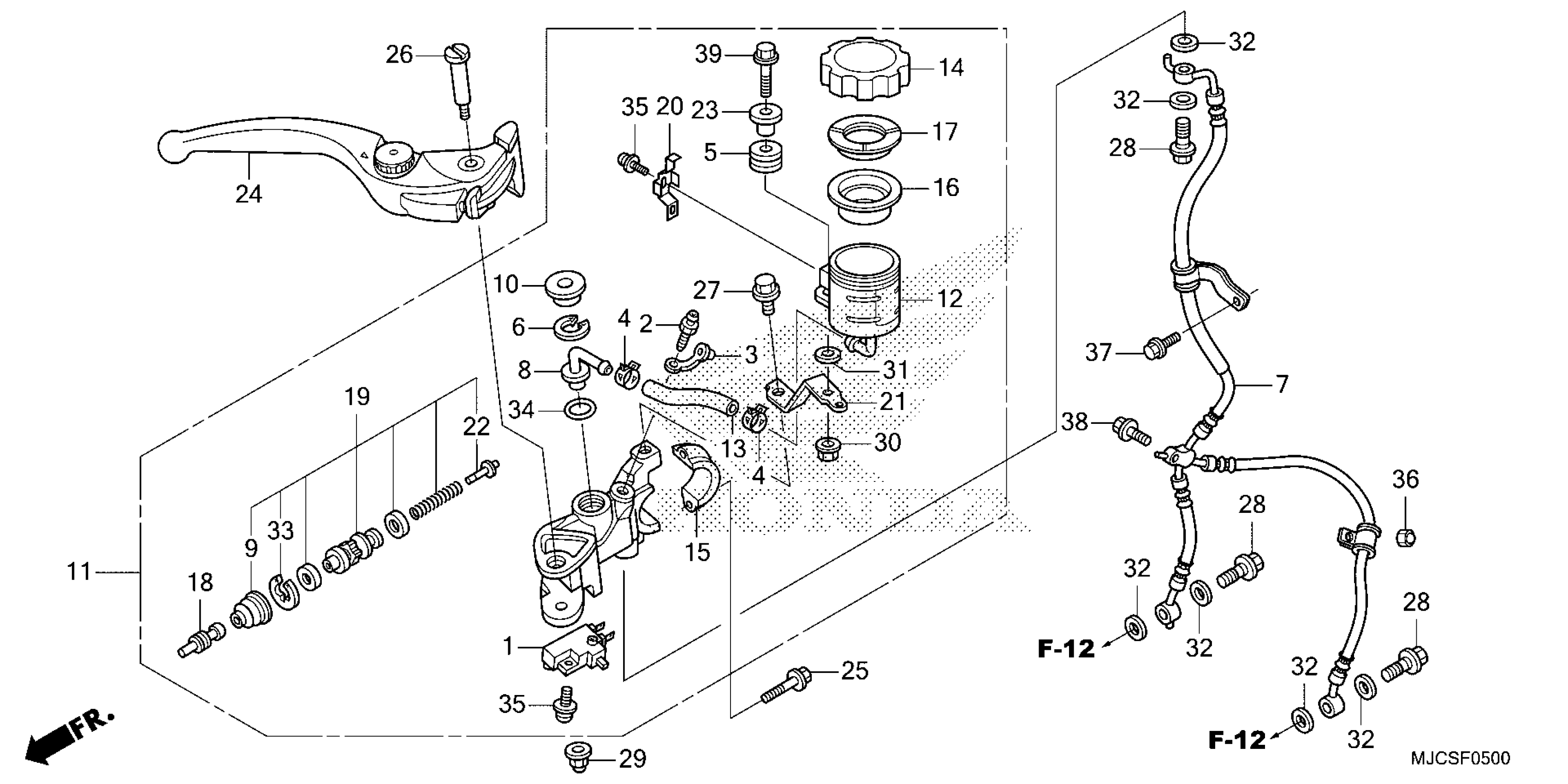

Honda CBR600RR7AC (26) MOTORCYCLE, JPN, VIN# JH2PC40H-TK300001 TO JH2PC40H-TK399999 FRONT BRAKE MASTER CYLINDER (1) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

RUBBER, OIL CUP

43516-MCJ-006

$4.29

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.65

HOSE, FR. BRAKE

45125-MJC-N31

$132.00

CONNECTOR, MASTER CYLINDER (NISSIN)

45503-KV3-006

$8.65

BOOT

45504-MCF-006

$10.31

COVER, DUST (NISSIN)

45505-KV3-006

$3.97

MASTER CYLINDER SUB-ASSY., FR. BRAKE

45510-MJC-A01

$294.54

CUP, OIL

45511-MEL-D21

$9.05

HOSE, MASTER CYLINDER OIL

45512-KV3-951

$4.98

CAP, OIL CUP

45513-MEL-D21

$16.92

HOLDER, MASTER CYLINDER

45517-MFL-006

$11.63

DIAPHRAGM

45520-300-000

$8.34

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

ROD, PUSH

45525-MEL-016

$13.09

MASTER CYLINDER SET

45530-MFJ-D01

$44.32

PLATE, STOP

45535-MR8-901

$5.20

STAY, FR. MASTER CYLINDER

45550-MFJ-D01

$4.71

GUIDE, SPRING

46140-MFJ-D01

$7.40

COLLAR (6.3X13)

50324-425-010

$4.51

LEVER ASSY., R. HANDLE

53170-MEL-006

$46.84

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

BOLT, HANDLE LEVER

90114-MCF-006

$5.56

BOLT, FLANGE (6X12)

90117-MR7-000

$2.75

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

NUT, CAP (6MM)

90201-415-000

Unavailable

NUT, U (6MM)

90301-MG3-000

$6.60

WASHER (6X16)

90473-147-000

$1.28

WASHER, OIL BOLT

90545-300-000

$5.79

CIRCLIP

90651-MCF-006

$2.09

O-RING (14.8X2.4)

91212-422-006

$2.37

SCREW-WASHER (4X12)

93893-04012-07

$1.32

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

NUT, CAP (6MM)

94021-06070-0S

$1.60

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.79

BOLT, FLANGE (6X18)

96001-06018-07

$1.16

BOLT, FLANGE (6X28)

96300-06028-07

$1.66
