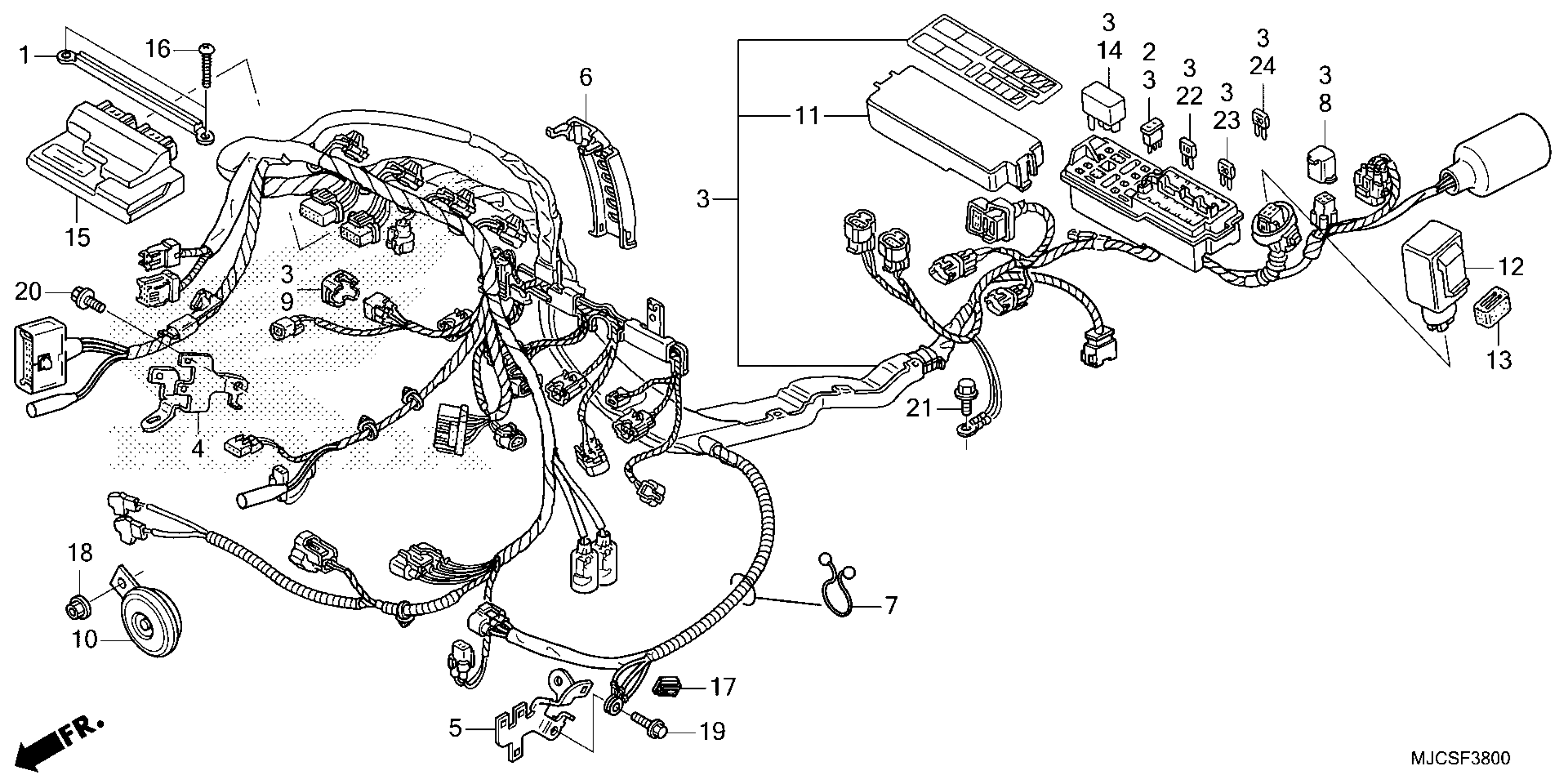

Honda CBR600RR7AC (25) MOTORCYCLE, JPN, VIN# JH2PC40H-SK200001 TO JH2PC40H-SK299999 WIRE HARNESS Diagram

PLATE, PGM-FI UNIT

17239-MFJ-D00

$2.38

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

WIRE HARNESS

32100-MJC-L00

$1,274.49

BRACKET, R. FR. CONNECTOR

32121-MFJ-A50

$3.65

STAY, L. CONNECTOR

32125-MJC-A00

$10.43

COVER, PROTECTOR B

32155-MFJ-D00

$4.56

LOCK, PURSE

32171-GF9-621

$1.97

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.18

CAP, DUMMY (6P) (NATURAL)

32606-MEL-D01

$10.97

HORN (LOW)

38120-KCZ-J71

$32.56

COVER (UPPER)

38252-MFJ-D01

$10.32

RELAY, TURN SIGNAL

38301-KTF-671

$33.28

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$2.87

RELAY (MICRO ISO 4P)

38501-MKP-DN1

$4.45

PGM-FI UNIT

38770-MJC-M51

$1,061.10

SCREW, TAPPING (4X18) (DELTA PT)

90105-MFJ-D00

$1.90

HOLDER, BRACKET (RED)

91554-SM4-003

$7.75

NUT, FLANGE (8MM)

94050-08070

$1.38

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.79

BOLT, FLANGE (6X12)

96300-06012-00

Unavailable

FUSE, MINI (20A)

98200-42000

$1.12
