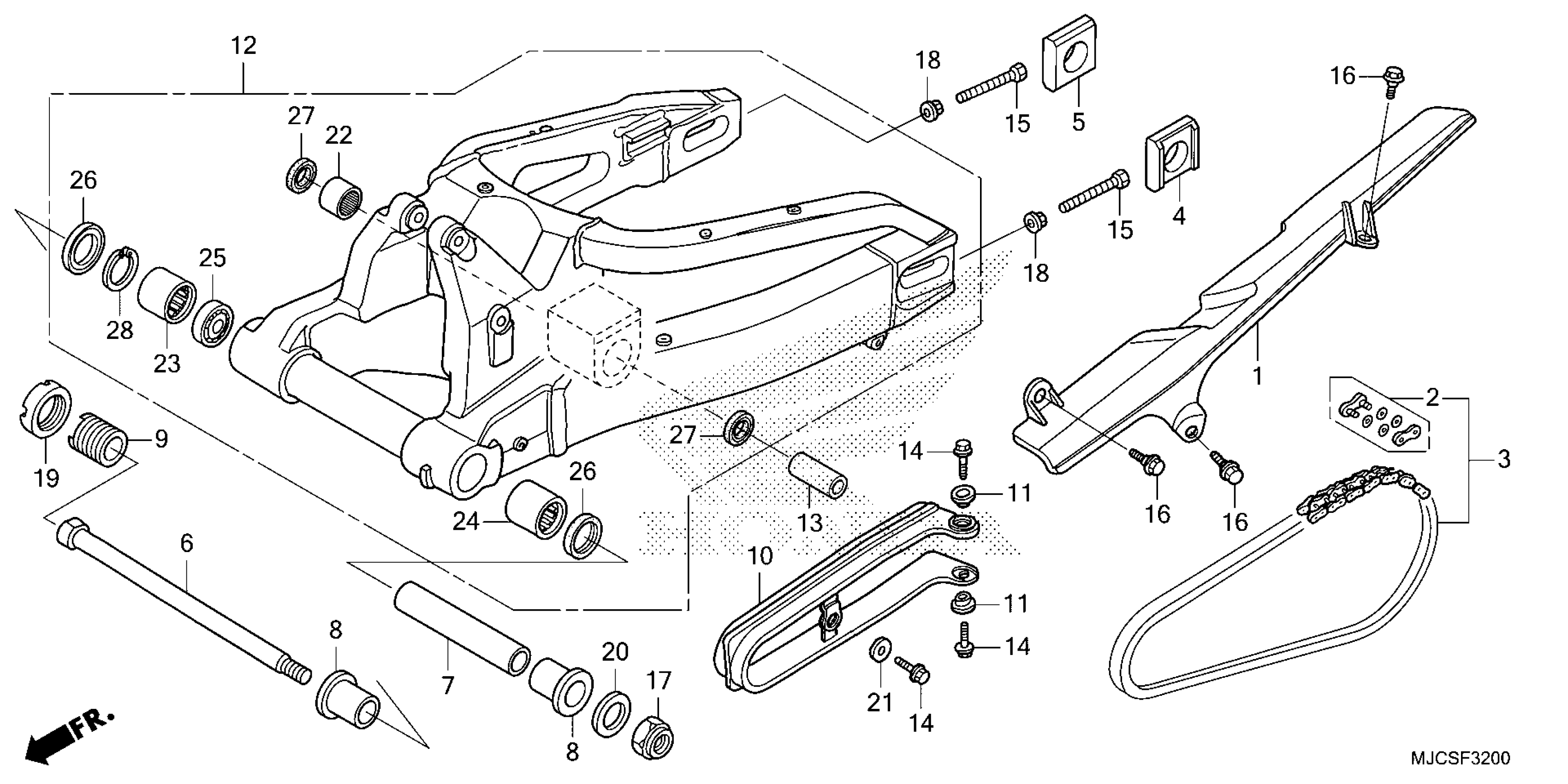

Honda CBR600RR7AC (25) MOTORCYCLE, JPN, VIN# JH2PC40H-SK200001 TO JH2PC40H-SK299999 SWINGARM Diagram

CASE, DRIVE CHAIN

40510-MEE-010

$50.10

MASTER LINK SET (DAIDO)

40535-MAL-G01

$7.98

MASTER LINK SET (RK EXCEL)

40541-MFJ-D02

$13.08

CHAIN, DRIVE (DID525HV-120ZB) (DAIDO) (STANDARD LINK 108L)

40540-MAL-G01

$239.07

CHAIN, DRIVE (525ROZ6-120LJFZ) (RK EXCEL) (STANDARD LINK 112L)

40540-MFJ-D02

$229.03

COLLAR, L. RR. AXLE

42305-MFL-000

$22.72

COLLAR, R. RR. AXLE

42306-MFL-000

$18.66

BOLT, SWINGARM PIVOT

52101-MFJ-D00

$54.39

COLLAR, SWINGARM PIVOT

52102-MJC-A00

$23.03

COLLAR B, PIVOT

52106-MGC-D30

$31.66

BOLT, R. PIVOT ADJUSTING

52108-MFJ-D00

$23.74

SLIDER, CHAIN

52170-MFJ-D00

$40.24

WASHER, CHAIN SLIDER

52171-MFJ-D00

$2.21

SWINGARM SUB-ASSY., RR.

52200-MFJ-A40

$1,085.10

COLLAR, CUSHION CONNECTING ROD

52463-MJC-A00

$9.19

BOLT, FLANGE (6X18)

90105-MY9-000

$2.92

BOLT, HEX. (8X50)

90106-MCF-D00

$2.43

BOLT, FLANGE (6MM)

90113-MAS-E00

$2.48

NUT, U (18MM)

90306-MCS-G01

$6.81

NUT, HEX. (10MM)

90309-357-000

$3.40

NUT, SWINGARM PIVOT

90355-MFJ-D00

$15.77

WASHER (18X32X2)

90401-KZ4-890

$4.48

WASHER (6MM)

90485-MB2-000

$1.91

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

BEARING, NEEDLE

91071-MBW-E11

$17.20

BEARING, NEEDLE

91071-MR7-003

$25.68

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$18.01

DUST SEAL (28X37X4)

91202-MR7-003

$6.36

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

CIRCLIP (INNER) (37MM)

94520-37000

$2.18
