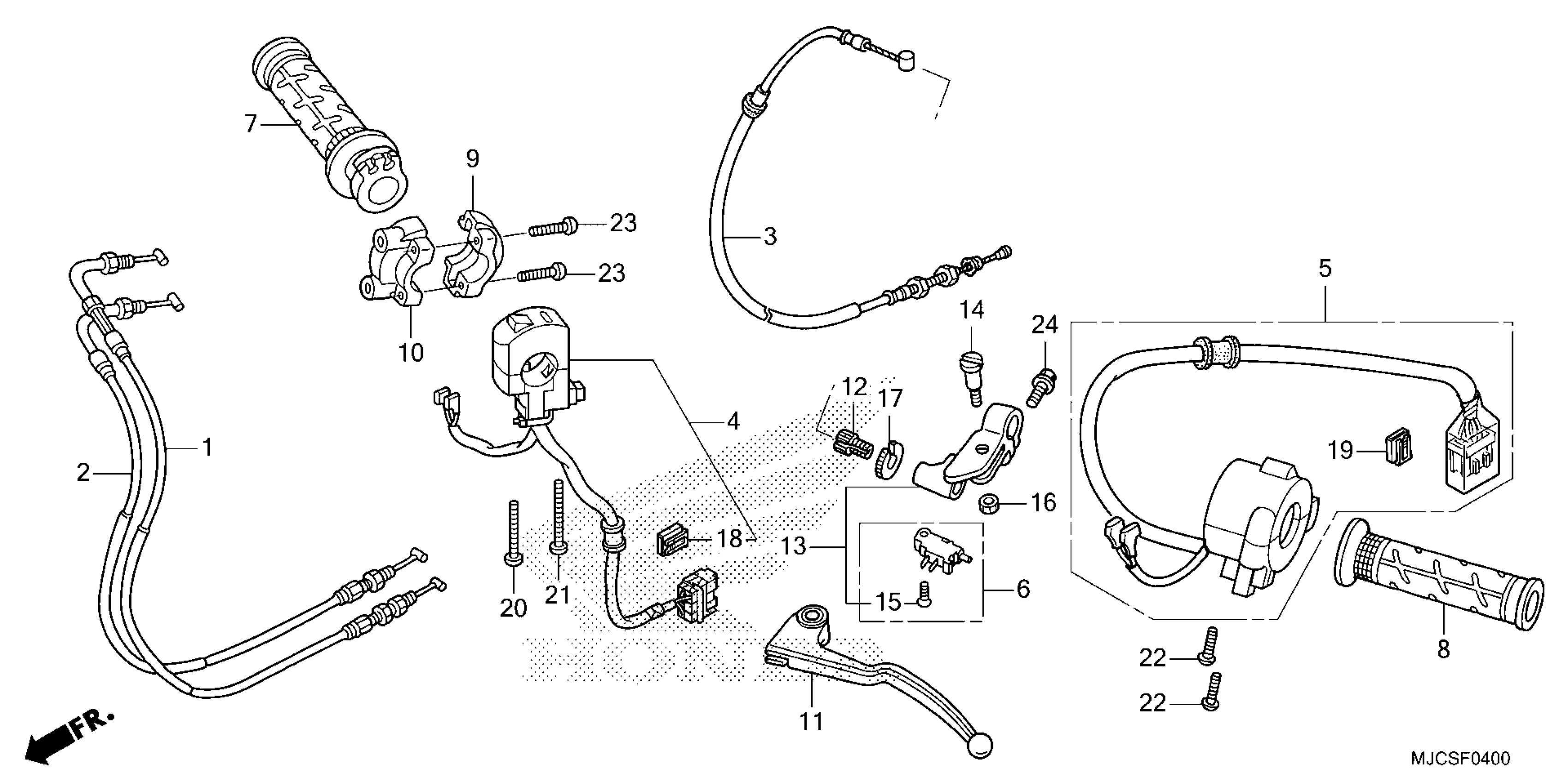

Honda CBR600RR7AC (25) MOTORCYCLE, JPN, VIN# JH2PC40H-SK200001 TO JH2PC40H-SK299999 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE A, THROTTLE

17910-MFJ-D00

$28.64

CABLE B, THROTTLE

17920-MFJ-D10

$22.47

CABLE, CLUTCH

22870-MFJ-A40

$20.72

SWITCH ASSY., ENGINE STOP

35130-MJC-A01

$65.90

SWITCH ASSY., TURN SIGNAL

35200-MJC-A01

$155.48

SWITCH SET, CLUTCH

35335-MCJ-751

$14.26

GRIP, THROTTLE

53140-MGS-D30

$28.33

GRIP, L. HANDLE

53150-MGS-D30

$12.11

HOUSING, THROTTLE (UPPER) (UNDER)

53167-MV4-000

$37.48

HOUSING, THROTTLE (LOWER) (UPPER)

53168-MV4-000

$40.99

LEVER, L. HANDLE

53182-MEE-000

$22.12

BOLT, WIRE ADJUSTING

53192-MEE-000

$7.32

BRACKET SET, CLUTCH LEVER

53195-MEE-010

$30.23

BOLT, LEVER PIVOT

90122-MEE-000

$4.92

SCREW, FLAT (3X16)

90124-MCJ-752

$1.49

NUT, U (6MM)

90301-MCJ-750

$2.26

NUT, FIXING

90321-MEE-000

$1.90

HOLDER, BRACKET (RED)

91554-SM4-003

$7.82

HOLDER, BRACKET (NATURAL)

91577-SM4-003

$4.61

SCREW, PAN (4X32)

93500-04032-0G

$1.49

SCREW, PAN (4X45)

93500-04045-0G

$1.49

SCREW, PAN (5X20)

93500-05020-0G

$1.49

SCREW, PAN (5X22)

93500-05022-0G

$1.49

BOLT, FLANGE (6X20)

96001-06020-07

$1.49
