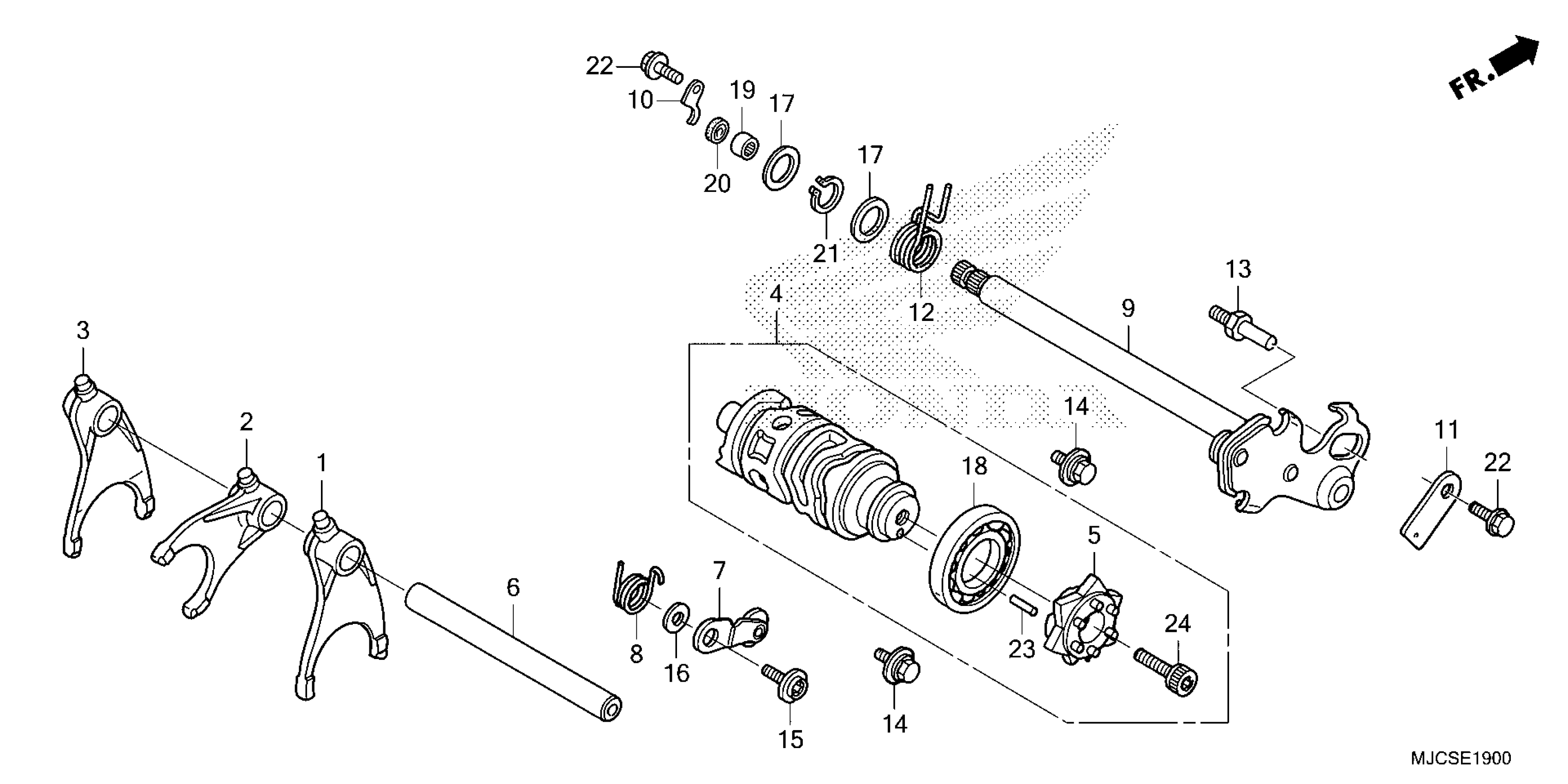

Honda CBR600RR7AC (25) MOTORCYCLE, JPN, VIN# JH2PC40H-SK200001 TO JH2PC40H-SK299999 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-MFJ-D00

$64.28

FORK, CENTER GEARSHIFT

24212-MFJ-D00

$64.28

FORK, L. GEARSHIFT

24213-MFJ-D00

$64.28

DRUM, GEARSHIFT

24310-MJC-D00

$171.10

CENTER, SHIFT DRUM

24315-MW0-791

$35.66

SHAFT, GEARSHIFT FORK

24321-MEE-000

$16.56

STOPPER, GEARSHIFT DRUM

24430-MAS-E00

$12.91

SPRING, SHIFT DRUM STOPPER

24435-MFJ-D00

$3.57

SPINDLE, GEARSHIFT

24610-MJC-D00

$101.72

PLATE, SPINDLE

24612-MAL-600

$9.01

PLATE, SPINDLE SETTING

24613-MFJ-D00

$2.62

SPRING, SHIFT RETURN

24651-MAE-000

$7.57

PIN, SHIFT RETURN SPRING

24652-035-000

$3.83

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$4.88

PIVOT, SHIFT DRUM STOPPER ARM

90022-MY5-600

$10.72

WASHER, DRUM STOPPER

90417-360-000

Unavailable

WASHER (14MM)

90451-155-000

$3.62

BEARING, SPECIAL BALL (6500)

91008-MFJ-D01

$15.31

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$10.46

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.65

CIRCLIP (OUTER) (14MM)

94510-14000

Unavailable

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

ROLLER (4X8)

96220-40080

Unavailable

BOLT, SOCKET (8X20)

96600-08020-10

$1.97
