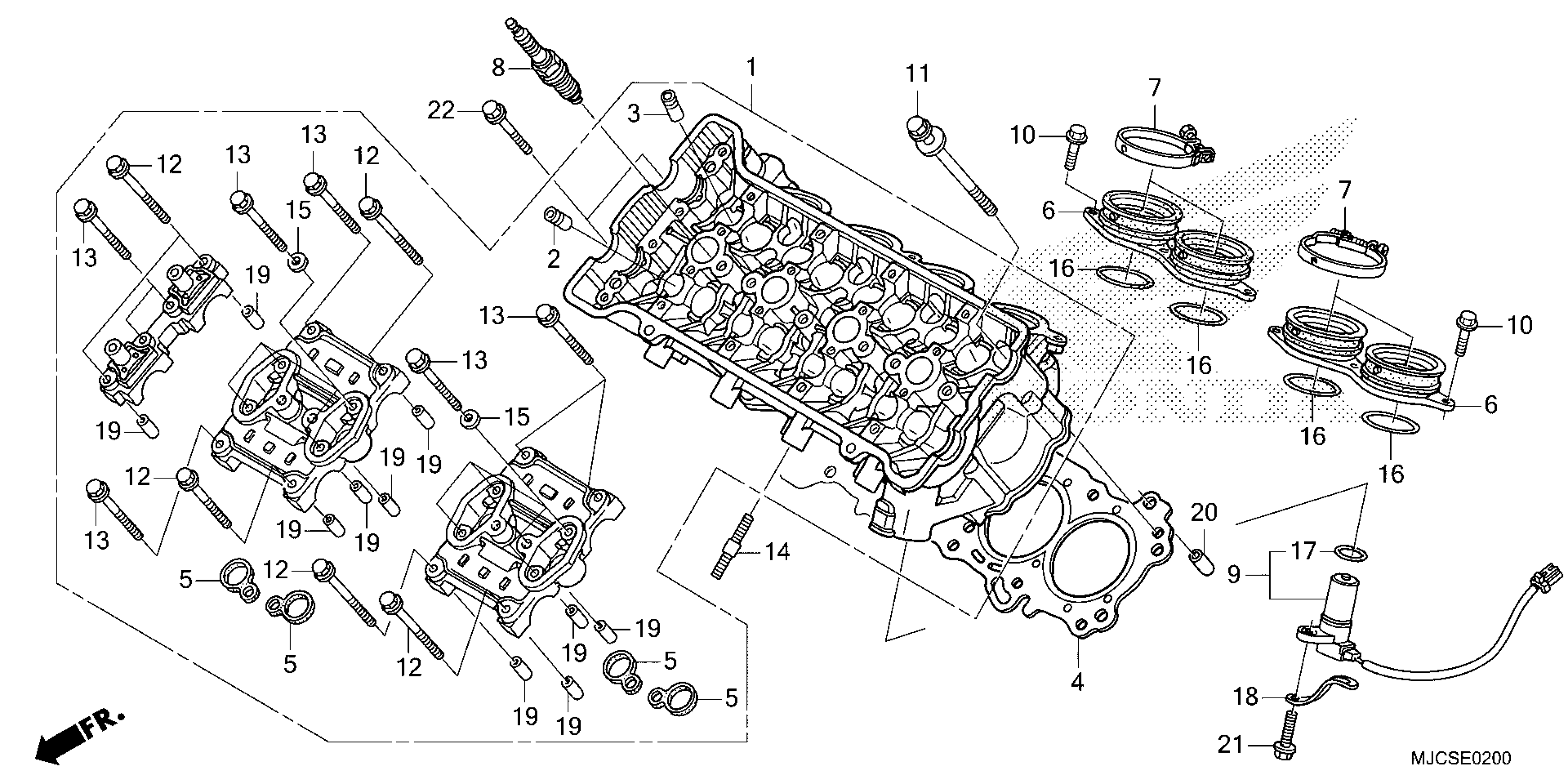

Honda CBR600RR7AC (25) MOTORCYCLE, JPN, VIN# JH2PC40H-SK200001 TO JH2PC40H-SK299999 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MFJ-A40

$1,176.03

GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE)

12204-MBW-305

$14.54

GUIDE, VALVE (OVER SIZE)

12204-MFJ-305

$16.89

GASKET, CYLINDER HEAD

12251-MFJ-D01

$65.59

GASKET, PLUG HOLE

12395-MBW-003

$4.33

INSULATOR, THROTTLE BODY

16210-MFJ-D00

$54.13

BAND, INSULATOR

16217-MFJ-D00

$4.64

SPARK PLUG (VUH27D) (DENSO)

31922-MBW-E12

$28.41

PULSER ASSY., CAM

36140-MFJ-D01

$58.87

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.26

BOLT-WASHER (9X90)

90007-MBW-000

$7.70

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.12

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.80

BOLT, STUD (8X24)

90035-MM5-000

$4.76

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

O-RING (40X2.5)

91301-MFJ-D00

$4.43

O-RING (16X2.1) (NOK) (Honda Code 3301793)

91309-PX4-003

$2.80

CLIP (2X60)

91410-KPE-C20

$2.88

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.04

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.24

BOLT, FLANGE (6X18) (Honda Code 2410918)

95701-06018-07

$1.48

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.28
