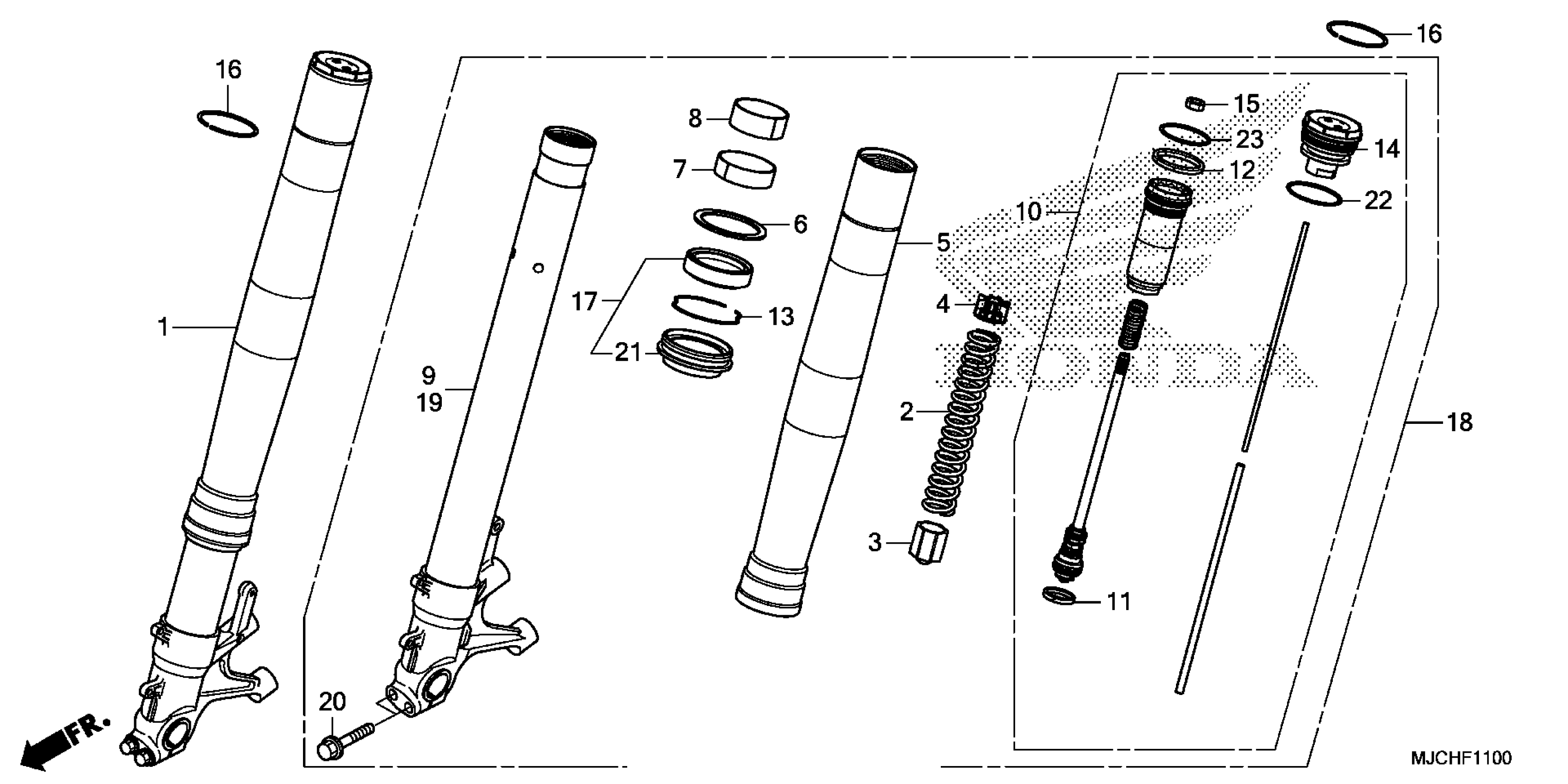

Honda CBR600RR7AC (20) MOTORCYCLE, JPN, VIN# JH2PC40H-LK600001 TO JH2PC40H-LK699999 FRONT FORK Diagram

FORK ASSY., R. FR. (COO) (SHOWA) This part replaces 51400-MJC-A12.

51400-MJC-316

$1,298.10

SPRING, FR. FORK

51401-MJC-A01

$87.28

COLLAR, SPRING

51403-MJC-A01

$13.20

COLLAR B, SPRING

51404-MJC-A01

$10.10

TUBE (OUTER)

51410-MJC-A11

$535.21

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

BUSH, GUIDE

51414-MFJ-A51

$7.25

BUSH, SLIDER

51415-MJC-A01

$12.06

PIPE, R. SLIDE

51425-MJC-A01

$435.07

ROD, PISTON

51430-MJC-A01

$736.43

RING, PISTON

51437-MJC-A01

$7.75

RING B, PISTON

51438-MJC-A01

$7.23

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

BOLT, FR. FORK

51450-MJC-A01

$71.08

NUT, HEX.

51451-MGP-D01

$1.92

RING, STOPPER

51455-MEE-D01

$2.64

SEAL SET, FR. FORK

51490-MKA-D81

$22.76

FORK ASSY., L. FR. (COO) (SHOWA) This part replaces 51500-MJC-A12.

51500-MJC-316

$1,298.10

PIPE, L. SLIDE

51525-MJC-A01

$435.07

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

DUST SEAL (SHOWA)

91251-MKA-D81

$8.55

O-RING (39.7X2.4)

91258-MEE-D01

$2.11

O-RING (37.55X1.78)

91258-MJC-A01

$5.17
