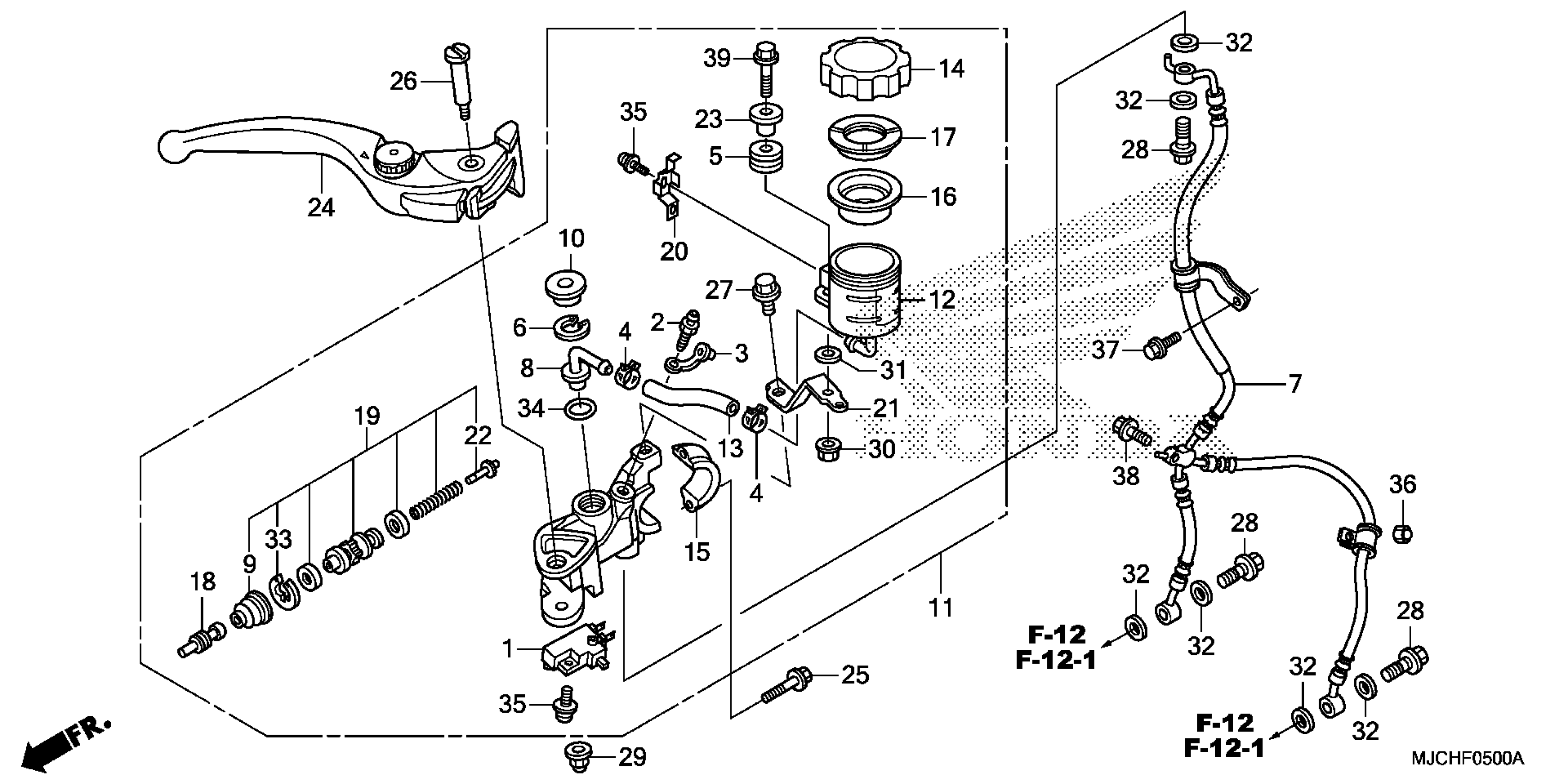

Honda CBR600RR7AC (20) MOTORCYCLE, JPN, VIN# JH2PC40H-LK600001 TO JH2PC40H-LK699999 FRONT BRAKE MASTER CYLINDER (1) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.62

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

RUBBER, OIL CUP

43516-MCJ-006

$4.23

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.55

HOSE, FR. BRAKE

45125-MJC-N31

$130.09

CONNECTOR, MASTER CYLINDER (NISSIN)

45503-KV3-006

$8.44

BOOT

45504-MCF-006

$10.81

COVER, DUST (NISSIN)

45505-KV3-006

$3.87

MASTER CYLINDER SUB-ASSY., FR. BRAKE

45510-MJC-A01

$290.28

CUP, OIL

45511-MEL-D21

$8.83

HOSE, MASTER CYLINDER OIL

45512-KV3-951

$4.85

CAP, OIL CUP

45513-MEL-D21

$16.55

HOLDER, MASTER CYLINDER

45517-MFL-006

$10.66

DIAPHRAGM

45520-300-000

$8.13

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

ROD, PUSH

45525-MEL-016

$13.09

MASTER CYLINDER SET

45530-MFJ-D01

$43.34

PLATE, STOP

45535-MR8-901

$5.07

STAY, FR. MASTER CYLINDER

45550-MFJ-D01

$4.60

GUIDE, SPRING

46140-MFJ-D01

$7.29

COLLAR (6.3X13)

50324-425-010

$4.51

LEVER ASSY., R. HANDLE

53170-MEL-006

$46.84

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.30

BOLT, HANDLE LEVER

90114-MCF-006

$5.42

BOLT, FLANGE (6X12)

90117-MR7-000

$2.71

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

NUT, CAP (6MM)

90201-415-000

$1.96

NUT, U (6MM)

90301-MG3-000

$6.44

WASHER (6X16)

90473-147-000

$1.26

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP

90651-MCF-006

$2.06

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, CAP (6MM)

94021-06070-0S

$1.48

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable

BOLT, FLANGE (6X18)

96001-06018-07

$1.14

BOLT, FLANGE (6X28)

96300-06028-07

$1.64
