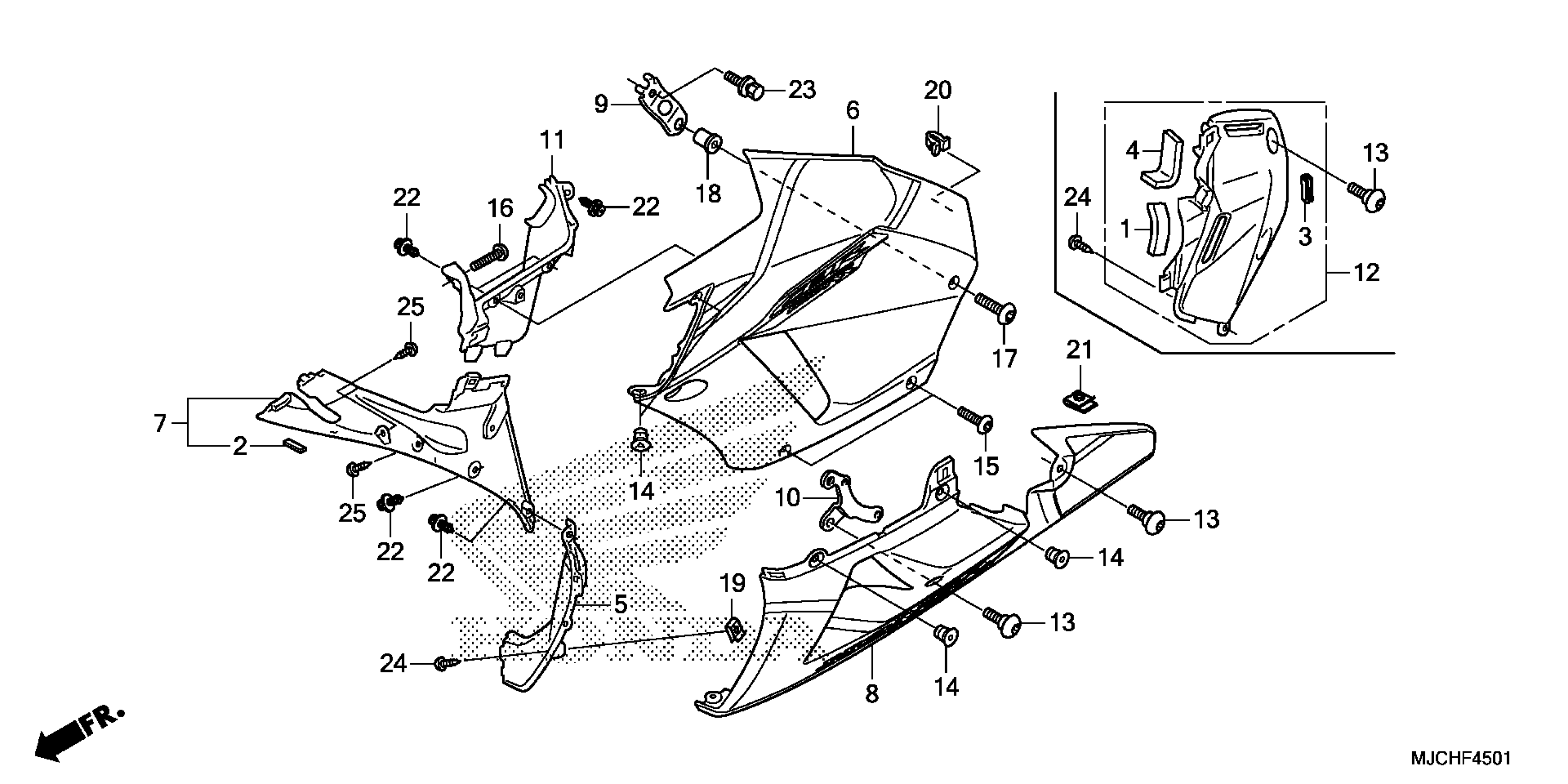

Honda CBR600RR7AC (18) MOTORCYCLE, JPN, VIN# JH2PC40H-JK400001 TO JH2PC40H-JK499999 MIDDLE COWL@LOWER COWL (L.) Diagram

RUBBER, BATTERY

50283-KSC-300

$1.49

COWL, L. (LOWER) (INNER)

64341-MJC-A01

$12.52

COWL SET, L. MIDDLE (TYPE1) (WL)

64350-MJC-N30ZA

$635.92

COWL, L. MIDDLE (INNER)

64375-MJC-A00

$18.77

COWL SET, L. (LOWER) (TYPE1) (WL)

64450-MJC-N30ZA

$653.89

STAY, MIDDLE COWL

64512-MJC-A00

$5.54

STAY, L. COWL (LOWER)

64515-MFJ-A40

$4.87

COWL, L. (UPPER) (INNER)

64591-MJC-A00

$8.00

SCREW, PAN (6X11)

90106-KY2-701

$4.24

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

SCREW, PAN (5X20)

90120-MEL-000

$1.95

SCREW, PAN (5X25)

90120-MFJ-A40

$2.21

NUT, WELL (5MM)

90156-GZ4-670

$4.87

NUT, SPRING (4MM)

90302-SA4-003

$5.44

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$1.49

NUT, CLIP (5MM)

90677-KAN-961

$4.07

CLIP, BODY COVER

90683-GR1-003

$2.92

BOLT-WASHER (6X14)

93401-06014-00

$1.62

SCREW, TAPPING (4X10)

93903-24280

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49
