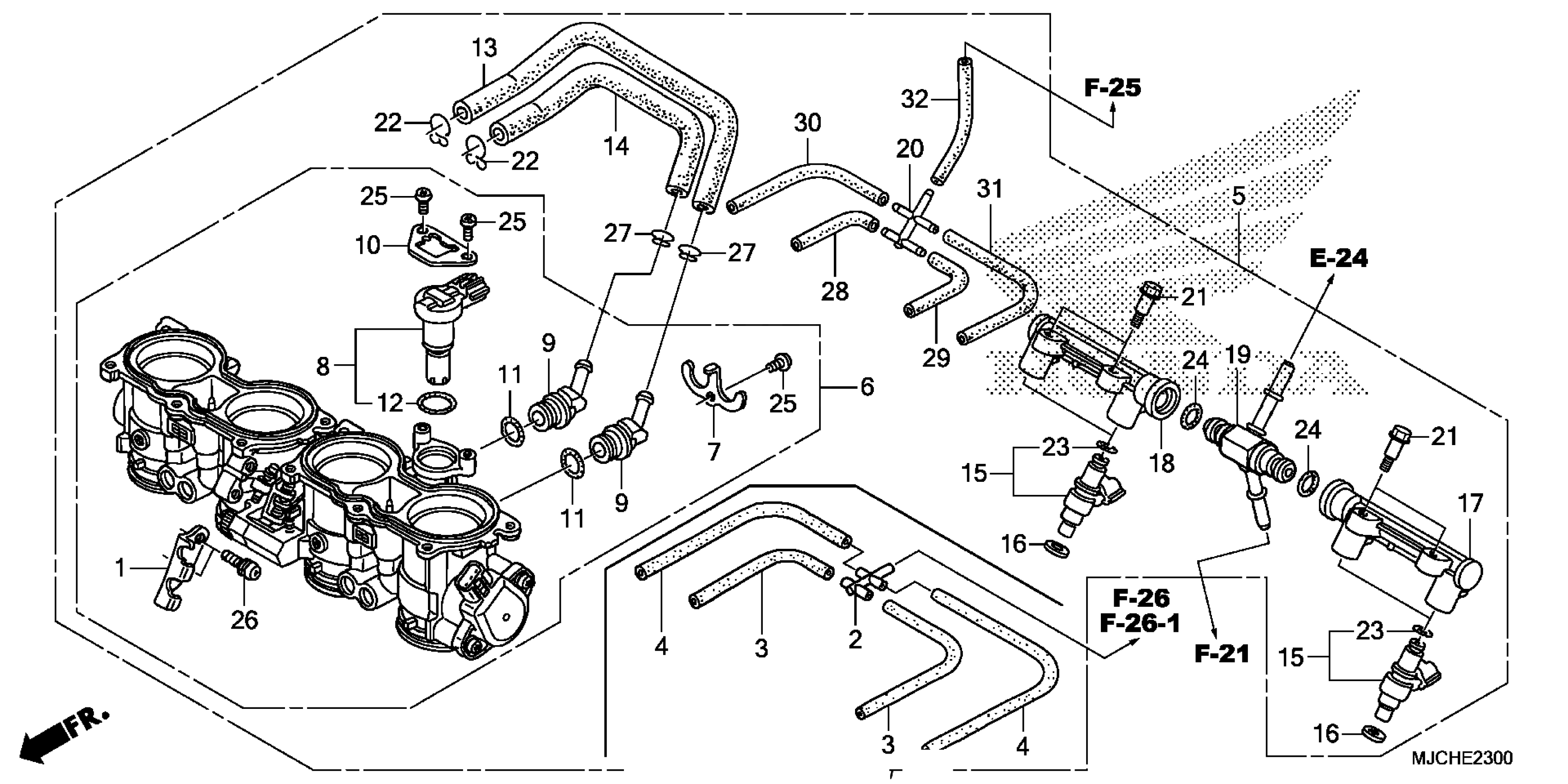

Honda CBR600RR6A (20) MOTORCYCLE, JPN, VIN# JH2PC40J-LK600001 TO JH2PC40J-LK699999 THROTTLE BODY Diagram

#

Description
Price

1

STAY, WIRE (FRAME NO.)

16169-MEE-013

$14.67

5

BODY ASSY., THROTTLE (GQ6KC A)

16400-MJC-A01

$2,067.10

6

BODY ASSY., THROTTLE

16401-MJC-A01

$1,306.67

7

PLATE, JOINT

16431-MFJ-D01

$8.28

8

MOTOR ASSY.

16431-MGZ-D01

$150.64

9

JOINT, IDLE AIR CONTROL VALVE

16432-MFJ-D01

$9.23

10

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$10.34

11

O-RING

16434-MFJ-D01

$3.03

12

O-RING (17.8X1.9)

16435-MFJ-D01

$3.03

13

TUBE (A)

16440-MFJ-D01

$12.20

14

TUBE (B)

16441-MFJ-D01

$12.20

15

INJECTOR ASSY., FUEL

16450-MFJ-D01

$187.28

16

SEAL RING, INJECTOR

16472-MCW-000

$2.39

17

PIPE, FUEL (A)

16610-MJC-D01

$60.31

18

PIPE, FUEL (B)

16620-MJC-D01

$60.31

19

JOINT, FUEL

16650-MFJ-D01

$74.49

20

JOINT, FIVE-WAY

17201-MCJ-003

$8.61

21

BOLT, SHOULDER

90021-MGZ-D02

$2.90

22

CLIP, TUBE (13.3)

90661-MFL-003

$1.49

23

O-RING (7.8X1.9)

91301-P7A-004

$3.35

24

O-RING (7.47X3.6)

91301-PLC-000

$3.11

25

SCREW, PAN (4X8)

93500-04008-0H

$1.49

25

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

26

SCREW-WASHER (5X12)

93892-05012-00

$1.49

26

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.49

27

CLIP, TUBE (B12.5) (NOT AVAILABLE)

95002-02139

$1.49

28

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

29

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

30

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

31

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

32

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67
