Description

Price

1

DAMPER SET, WHEEL

06410-MFJ-D00

$57.81

2

SPROCKET, FINAL DRIVEN (42T)

41201-MFJ-A00

$84.36

3

AXLE, RR. WHEEL

42301-MJC-A00

$74.18

4

COLLAR, RR. WHEEL SIDE

42311-MJC-A00

$19.91

6

FLANGE SUB-ASSY., RR. DRIVEN

42615-MJC-A00

$240.54

7

COLLAR, RR. AXLE DISTANCE

42620-MJC-A00

$36.70

8

COLLAR B, RR. WHEEL DISTANCE

42625-MEL-000

$31.18

9

WHEEL SUB-ASSY., RR. (TYPE2) This part replaces 42650-MJC-A00ZC.

42650-MJC-A01ZC

$1,061.30

9

WHEEL SUB-ASSY., RR. (TYPE2)

42650-MJC-A01ZC

$1,061.30

10

TIRE (180/55ZR17) This part replaces 42711-MJC-A02.

42711-MJC-A03

$356.01

10

TIRE (180/55ZR17)

42711-MJC-A03

$356.01

11

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

12

DISK, RR. BRAKE

43251-MEE-000

$229.93

13

WEIGHT, BALANCE (10G)

44721-MGC-003

$4.41

13

WEIGHT, BALANCE (15G)

44722-MGC-003

$5.25

13

WEIGHT, BALANCE (20G)

44723-MGC-003

$5.25

14

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

15

BOLT (10X30)

90121-MCF-D30

$2.92

17

NUT, U (10MM)

90304-KAE-871

$4.33

18

NUT, U (22MM)

90306-MCF-D01

$10.08

19

WASHER (23X37X2.5)

90401-MCJ-000

$5.05

20

WASHER (10MM)

90502-MCF-000

$2.80

21

BEARING, RADIAL BALL (28X52X12)

91051-HA7-671

$33.99

22

BEARING, RADIAL BALL (6005)

91052-MCF-003

$15.55

23

BEARING, RADIAL BALL (6205X2)

91053-MAZ-003

$17.90

24

DUST SEAL (35X52X7.5)

91254-MJC-A01

$11.18

25

O-RING (51X2)

91352-MCF-003

$3.77

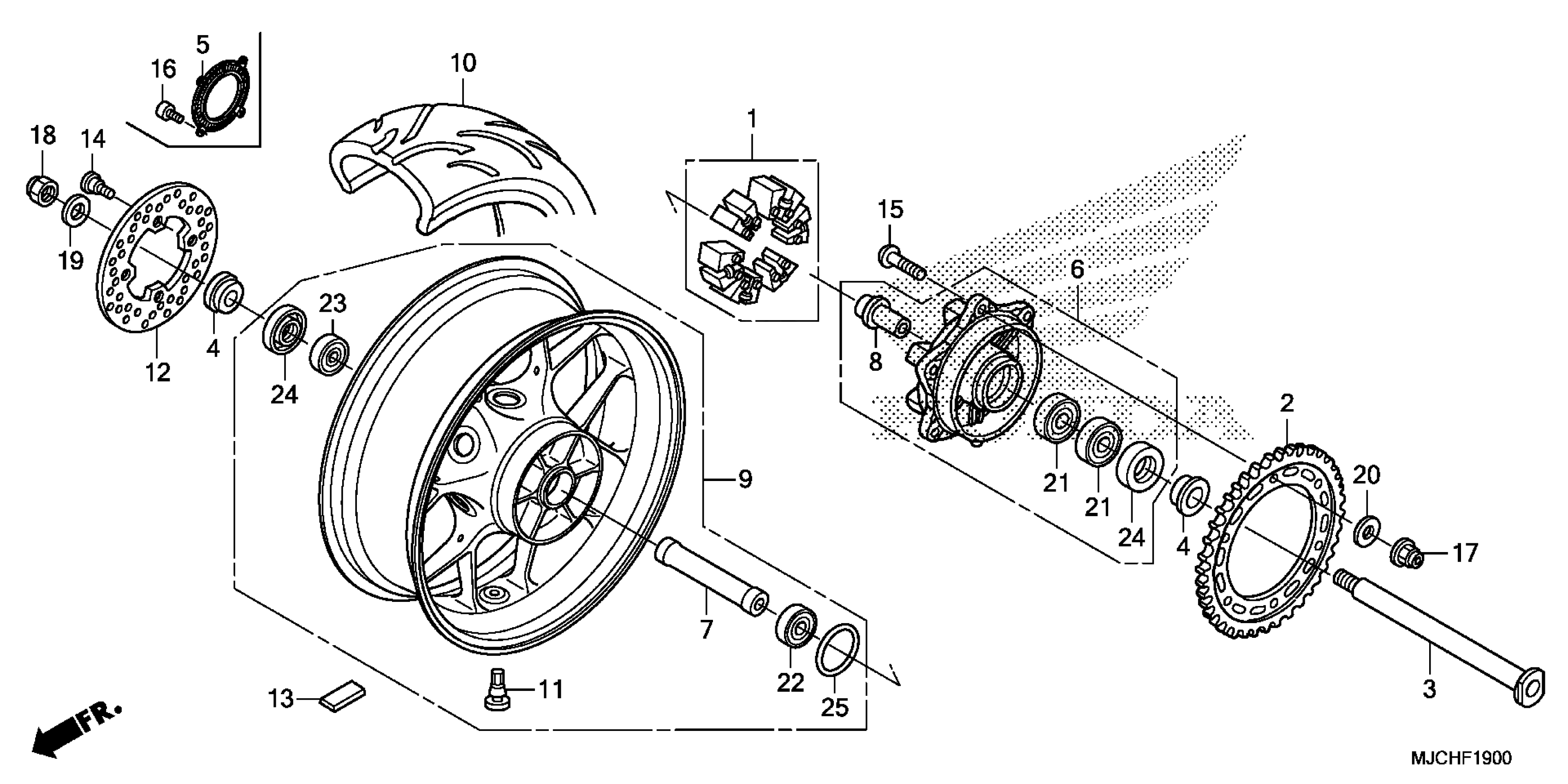

Honda CBR600RR6A (20) MOTORCYCLE, JPN, VIN# JH2PC40J-LK600001 TO JH2PC40J-LK699999 REAR WHEEL Diagram
