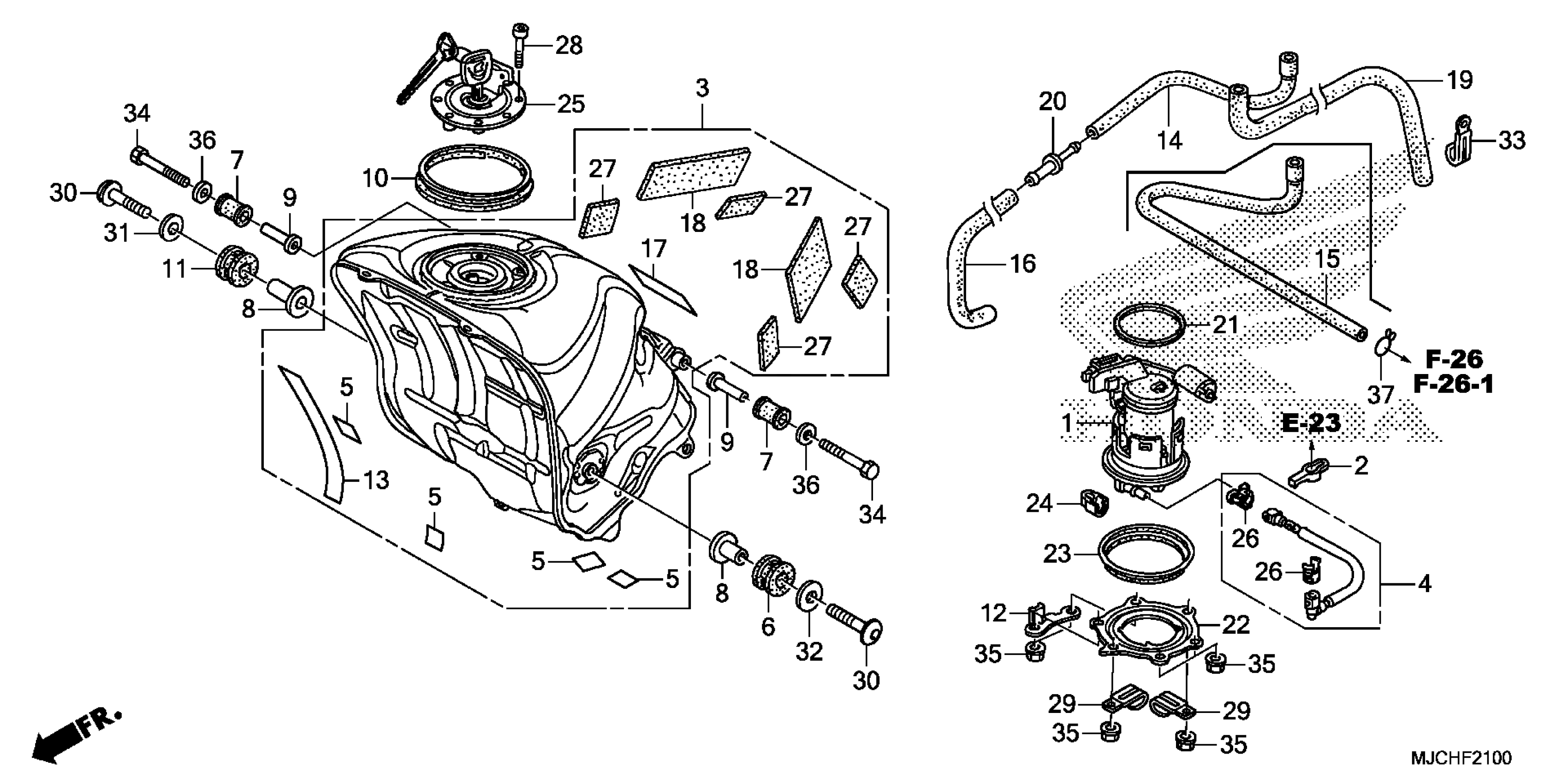

Honda CBR600RR6A (19) MOTORCYCLE, JPN, VIN# JH2PC40J-KK500001 TO JH2PC40J-KK599999 FUEL TANK@FUEL PUMP Diagram

PUMP ASSY., FUEL (MSDS) This part replaces 16700-MFJ-D02.

16700-MFJ-D03

$579.14

PUMP ASSY., FUEL (MSDS)

16700-MFJ-D03

$579.14

DAMPER, CONNECTOR

16719-MFJ-D00

$2.92

TANK SET, FUEL

17500-MJC-A00

$930.03

HOSE B, FUEL FEED

17526-MFJ-D01

$60.74

TAPE, TANK GUARD

17528-MR4-900

$2.33

RUBBER, L. FR. TANK MOUNTING

17533-MEL-000

$3.65

RUBBER, RR. TANK MOUNTING (FRONT SIDE)

17534-MFJ-D00

$4.75

COLLAR, FR. TANK SETTING

17535-MEL-D20

$7.95

COLLAR, RR. TANK SETTING

17538-MEE-D00

$5.81

SEAL, FUEL TANK

17543-MEE-000

$7.32

RUBBER, R. FR. TANK MOUNTING

17545-MEL-000

$3.65

GUIDE, BREATHER TUBE

17553-MFJ-D00

$6.49

FILM A, PROTECTOR

17554-MFJ-D10

$11.07

TUBE, BREATHER

17555-MFJ-D00

$11.97

TUBE (8X590)

17557-MFJ-A40

$16.20

FILM B, PROTECTOR

17557-MFJ-D10

$4.56

CUSHION, FUEL TANK

17558-MEE-940

$16.25

TUBE, DRAIN

17559-MFJ-A40

$15.07

JOINT, BREATHER TUBE

17561-MEE-000

$4.41

GASKET, FUEL PUMP

17574-MFJ-D00

$25.58

PLATE, FUEL PUMP SETTING

17575-MFJ-D00

$9.75

SEAL (OUTER)

17576-MFJ-D00

$5.89

COVER, FUEL CONNECTOR

17580-MFJ-D00

$5.16

CAP, FUEL FILLER This part replaces 17620-MCJ-751.

17620-MCJ-753

$183.98

CAP, FUEL FILLER This part replaces 17620-MCJ-752.

17620-MCJ-753

$183.98

CAP, FUEL FILLER

17620-MCJ-753

$183.98

RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)

17711-S0X-931

$3.40

SPONGE, RUBBER

50322-MEC-000

$2.38

BOLT, SOCKET (4X21)

90074-MT4-000

$3.04

CLIP (2X50)

90105-727-000

$3.17

BOLT, SPROCKET FIXING

90128-KL4-000

$9.21

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

WASHER (8.5MM)

90534-750-000

$4.09

CLIP (2X60)

91410-679-000

$10.06

BOLT, HEX. (6X40)

92201-06040-0A

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49
