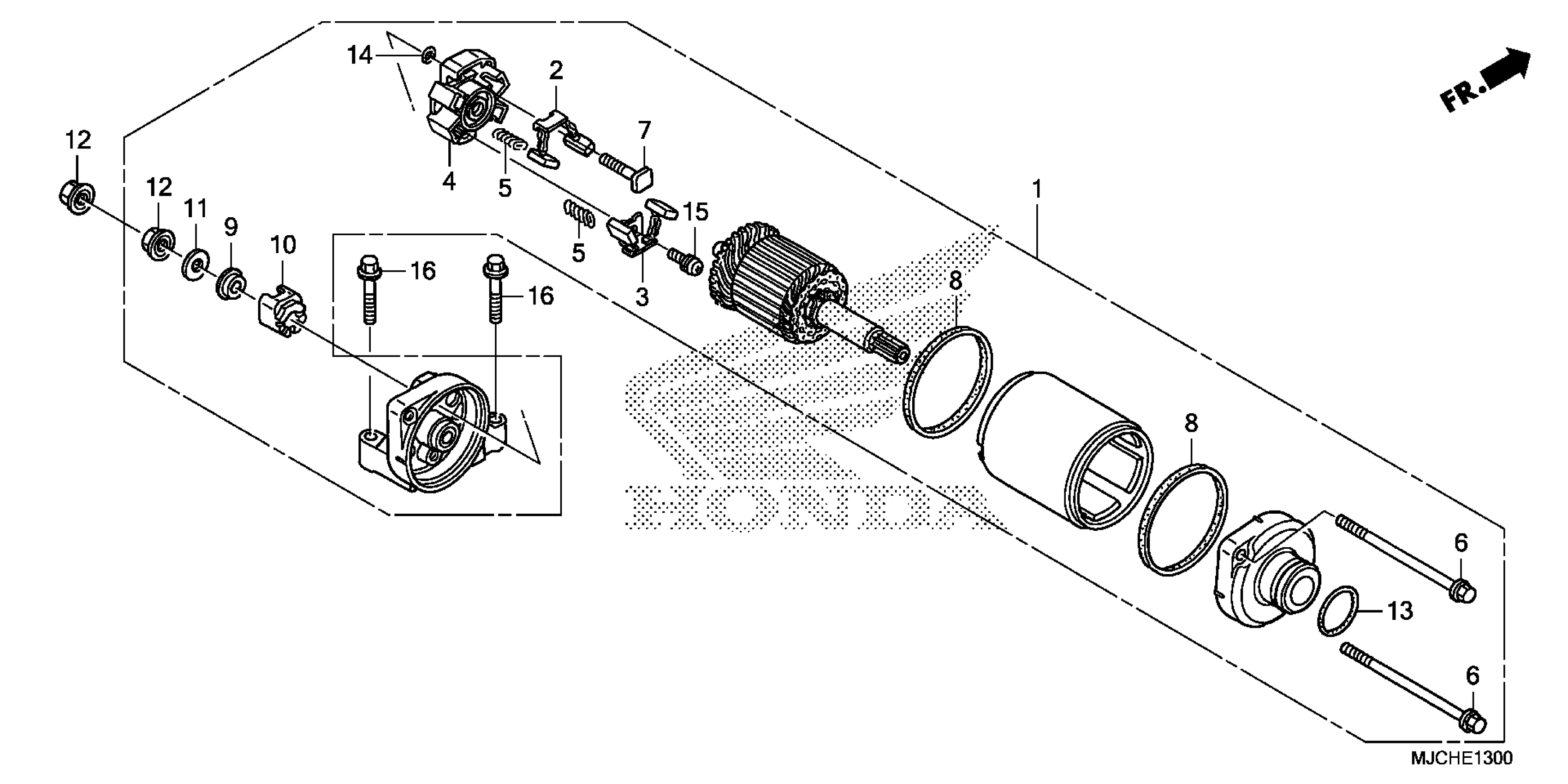

Honda CBR600RR6A (18) MOTORCYCLE, JPN, VIN# JH2PC40J-JK400001 TO JH2PC40J-JK499999 STARTING MOTOR Diagram

STARTER MOTOR ASSY.

31200-MFJ-D01

$500.13

BRUSH SET A, CARBON (Honda Code 8476772)

31201-MEW-921

$7.25

BRUSH SET B, CARBON (Honda Code 8476780)

31202-MEW-921

$11.74

HOLDER, BRUSH (Honda Code 8614117)

31203-MEW-921

$6.96

SPRING, CARBON BRUSH (Honda Code 8476798)

31204-MEW-921

$11.33

BOLT, SETTING

31205-MFJ-D01

$3.36

BOLT, TERMINAL

31206-MEW-921

$2.67

RING

31207-HP5-601

$1.96

INSULATOR (Honda Code 8476822)

31208-MEW-921

$6.97

STOPPER, TERMINAL (Honda Code 8476830)

31209-MEW-921

$10.35

WASHER

31210-MEW-921

$1.65

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

Unavailable

O-RING (Honda Code 1292184)

91320-MB0-000

$2.20

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.04

BOLT, FLANGE (6X30)

95801-06030-00

$0.86
