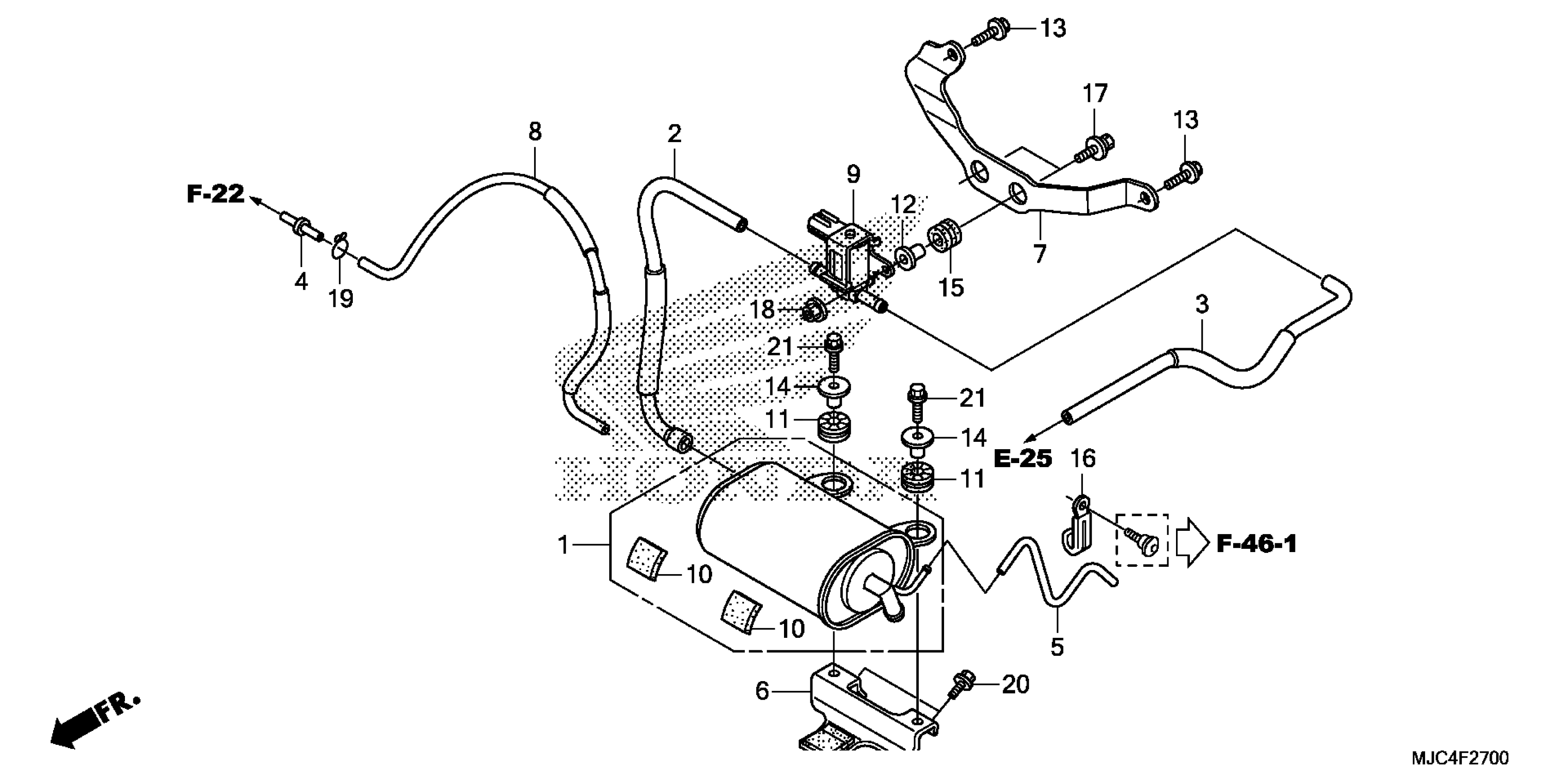

Honda CBR600RR3AC (14) MOTORCYCLE, JPN, VIN# JH2PC406-EK700001 TO JH2PC406-EK799999 EVAP CANISTER (CBR600RR) Diagram

EVAPORATIVE EMISSION CANISTER

17410-MFJ-L00

$290.48

TUBE, CANISTER-PURGE CONTROL VALVE

17412-MFJ-L00

$11.30

TUBE, FIVE WAY-PURGE CONTROL VALVE

17413-MFJ-L00

$11.08

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$6.45

TUBE, CANISTER DRAIN

17434-MFJ-L00

$5.13

STAY, CANISTER

17440-MFJ-L00

$17.36

STAY, PCS

17445-MFJ-L00

$17.36

TUBE (CANISTER-2WAY)

17556-MFJ-L10

$15.30

VALVE, PURGE CONTROL SOLENOID

36162-PLC-003

$64.26

RUBBER, BATTERY

50328-HP1-600

$1.62

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.37

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$4.08

BOLT (8X18)

90123-MEN-730

$1.97

COLLAR (6.2X13)

90501-MA3-720

$4.78

RUBBER, CONTROL BOX

90852-898-000

$4.03

CLIP (2X60)

91410-679-000

$10.06

BOLT-WASHER (5X20)

93404-05020-08

$1.61

NUT, FLANGE (5MM)

94050-05080

$1.49

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.80

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
